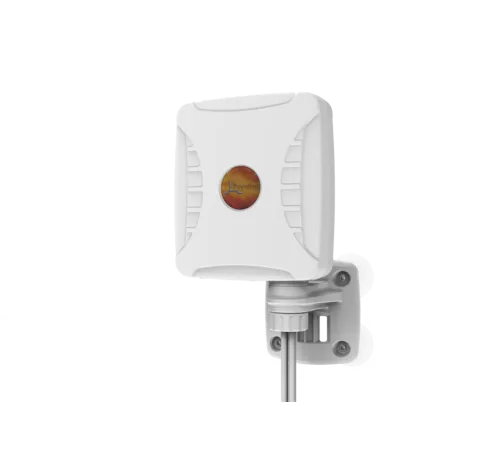

The Poynting X-POL 1 LTE antenna Cross Polarized 3dBi can be mounted on windows, walls or poles. This antenna comes with 2 x 5 meters RG58 cable and it can support frequencies in the 790 – 960, 1710 – 2700 MHz band. This antenna supports multiple inputs and multiple outputs and is very robust, light and waterproof.
Maximum gain: 3 dBi
Frequencies: 790-960 and 1710-2700 MHz
Polarization: both horizontal and vertical (MIMO)
Impedance: 50 Ohms
Dimensions 234 x 134 x 84 mm
Cable: 2 x 5 meters HDF195 with SMA male connections included
Mounting: mounting bracket for wall, pole, mast included
VSWR: <2:1
Impedance: 50 Ohms
Temperature range: -40 ºC to 70 ºC
Package contents
Poynting 3 dBi 5G Omni Antenna
2x 5 meters HDF195 antenna cable
2x SMA male connection
Window mounting material
Wall mounting material
Post mounting material
Schematic installation guide
