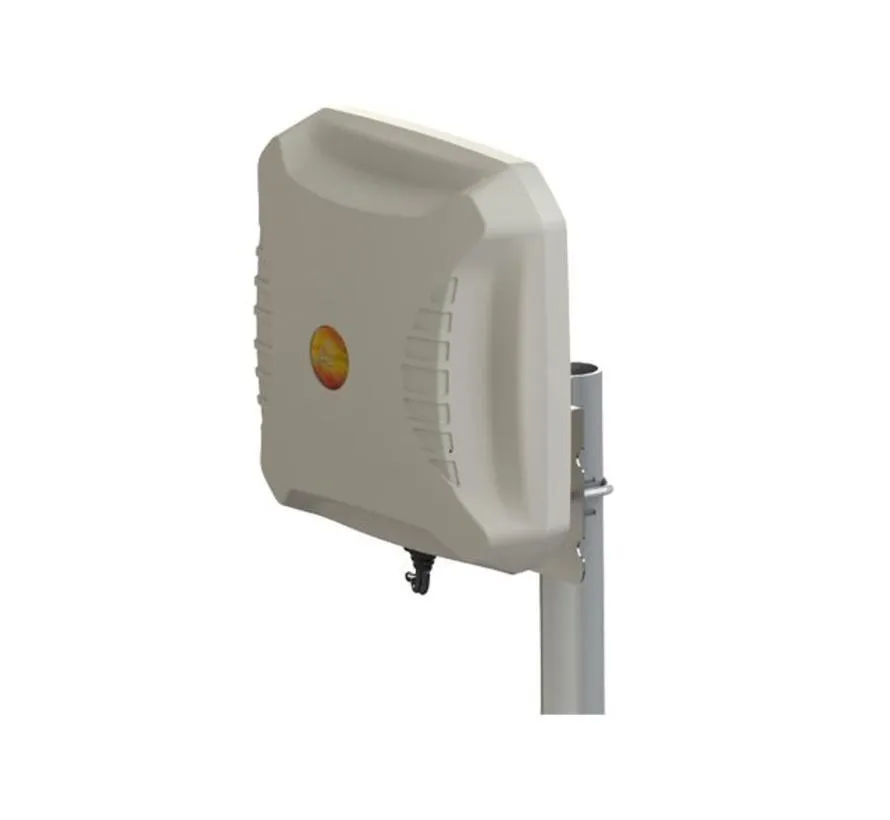

The Poynting A-XPOL 2 LTE antenna is a double polarized antenna. It is ideal for signal amplification in virtually any cellular network application. This is a 11dBi antenna that is suitable for 4G, 3G and 2G networks and WiFi. It supports the LTE, LoRa, HSDPA, 3G, 4G, EDGE and GPRS ranges.
The cross polarized high-gain LTE panel antenna contains two separately powered ultra wideband elements in a single housing. With multiple input / output (MiMo) on the client side, this is a future-proof solution; for current and future mobile networks.
Specifications Poynting A-XPOL 2:
Gain (Max) 9 dBi Max Gain
Polarization 0° and 90°
Feed Power Handling 10W
Nominal Input Impedance 50 Ohm (nominal)
Dimensions (l x w x d) 255 x 255 x 80 mm (without bracket)
Mounting Wall or pole mount
Weight 1.55 kg
Mounting Bracket up to 60mm poles
Connector 2 x SMA male, 5 meter cable
Cable Loss 0.35 dB/m
Material ABS (halogen free)
Color Pantone – Cool Gray (1C), RAL 7047
Flammability Rating UL 94-V0
Environmental Conditions Outdoor/Indoor
Operating Temperature -40 to +70°C
RoHS Compliant
VSWR < 2.5:1
Water Ingress Rating IP 65 (NEMA 4X)
790 – 960 / 1710 – 2170 / 2500 – 2700 MHz Band
