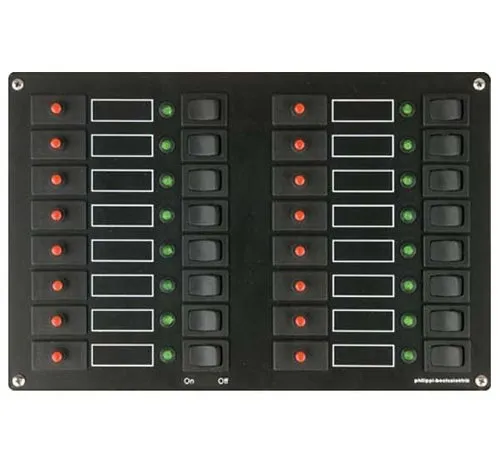

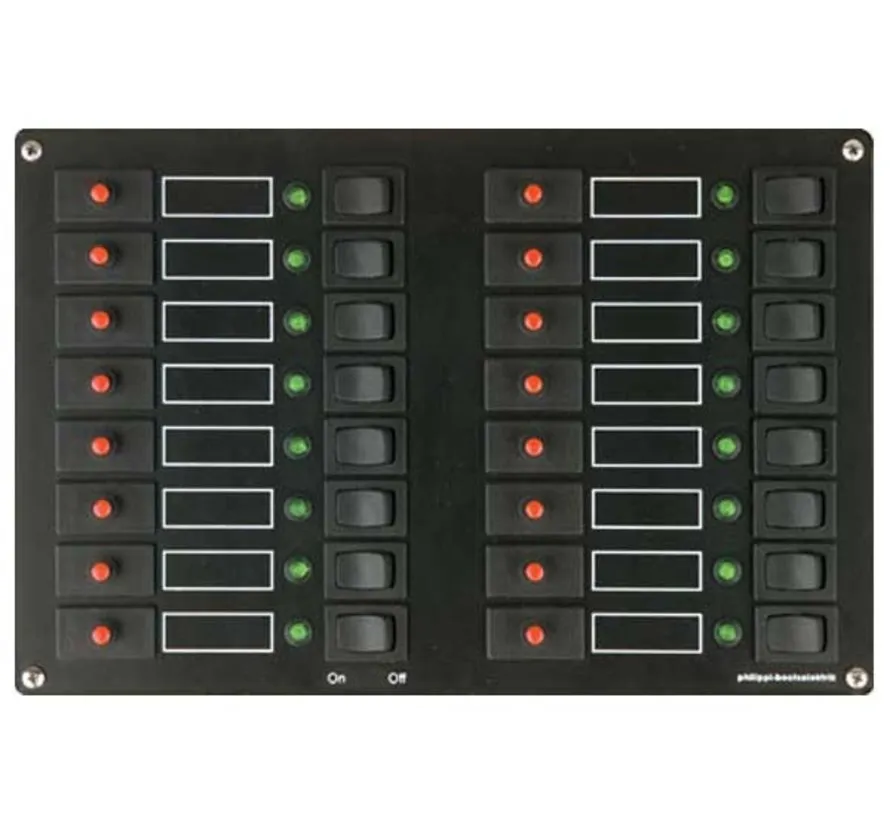

Philippi panel STV 316.
16-fold panel with switches and indicator lights.
Specifications:
Switch panel with 16 circuits with thermal circuit breakers from the E-T-A 1140 series, LED display, and toggle switches, rated current 8 A.
The delivery includes a set of STKZ labels and black mounting screws.
The power cables are connected via 6.3 mm flat plugs on the rear of the circuit breakers.
The power cables are 70 cm long.
We recommend using a terminal block for clear and safe installation.
The mounting recess can be selected 10 mm smaller than the panel dimensions (W 200 x H 125 mm) on each edge.
Suitable for DC 12V and 24V.
Dimensions: W 220 x H 145 x D 70 mm
