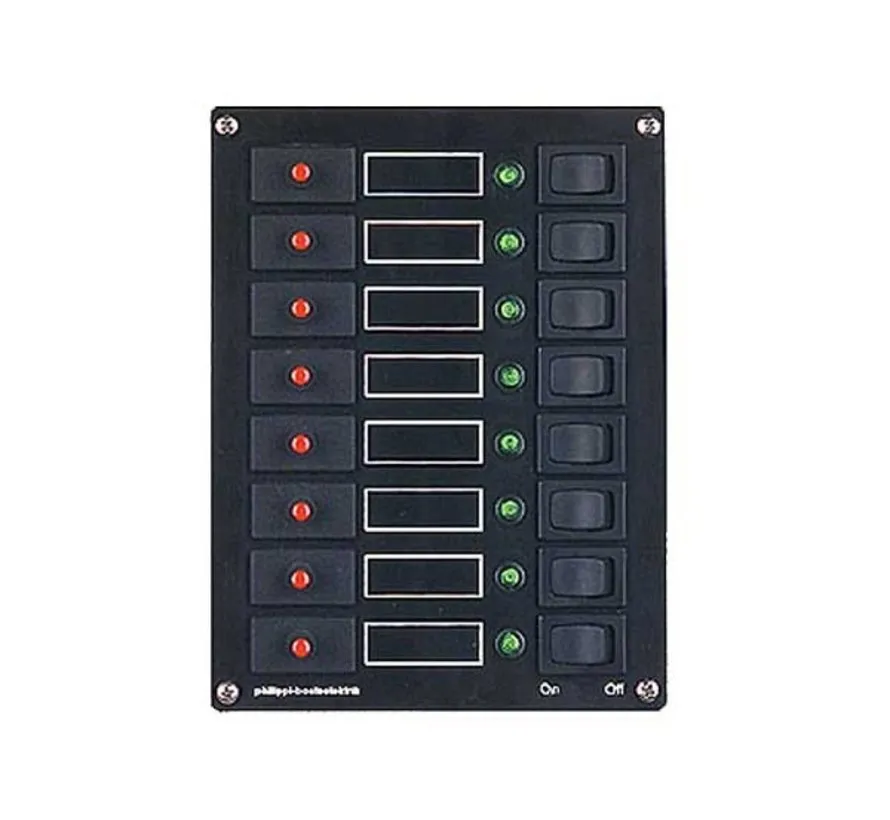

Philippi panel 8V STV 108
Panel STV 108 CE 8fold with switch and indicator lights.
8A fused
Circuit distributor with 8circuits with E-T-A 1140 series thermal circuit breakers, LED display and rocker switches, rated current 8A.
On request, 4A, 6A, 10A, 12A or 16A can also be used.
The delivery includes a set of labels STKZ and black fixing screws.
The connection of the consumer supply cables is made by flat plug sleeves 6,3mm on the backside of the circuit breakers.
The supply cables have a length of 70 cm.
We recommend the use of a terminal block for clear and safe mounting.
The mounting cutout can be chosen 10 mm smaller per edge than the panel dimensions (W 90 x H 125 mm).
Applicable for DC 12V and 24V.
Dimensions : W 110 x H 145 x D 70 mm
