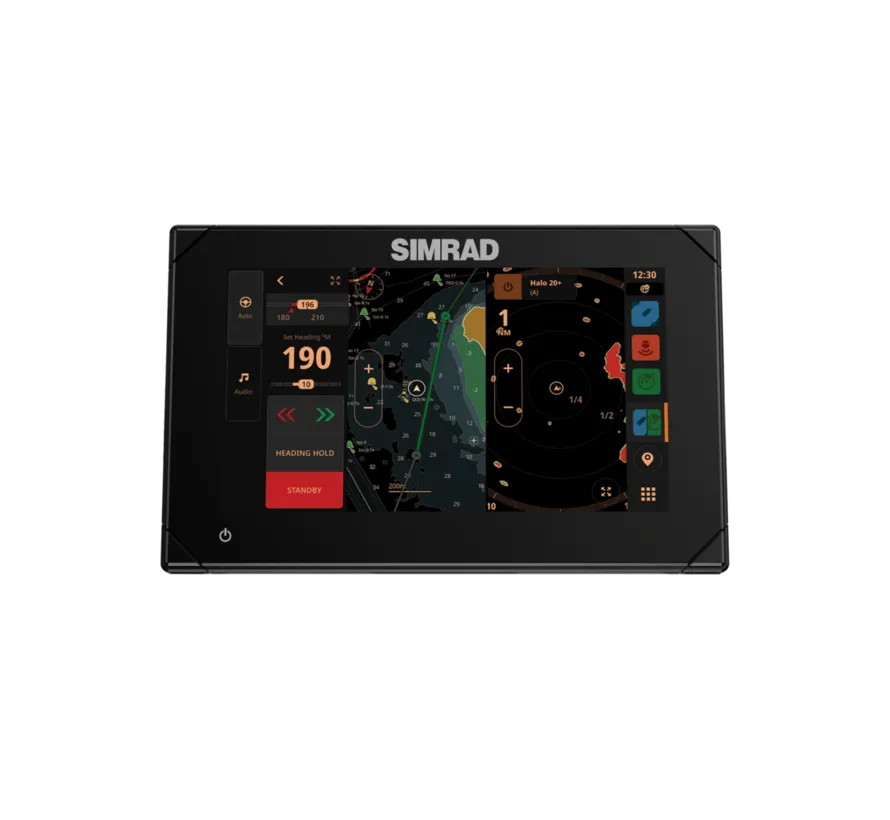

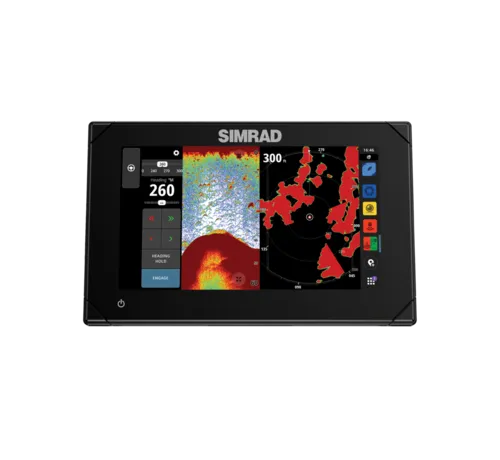

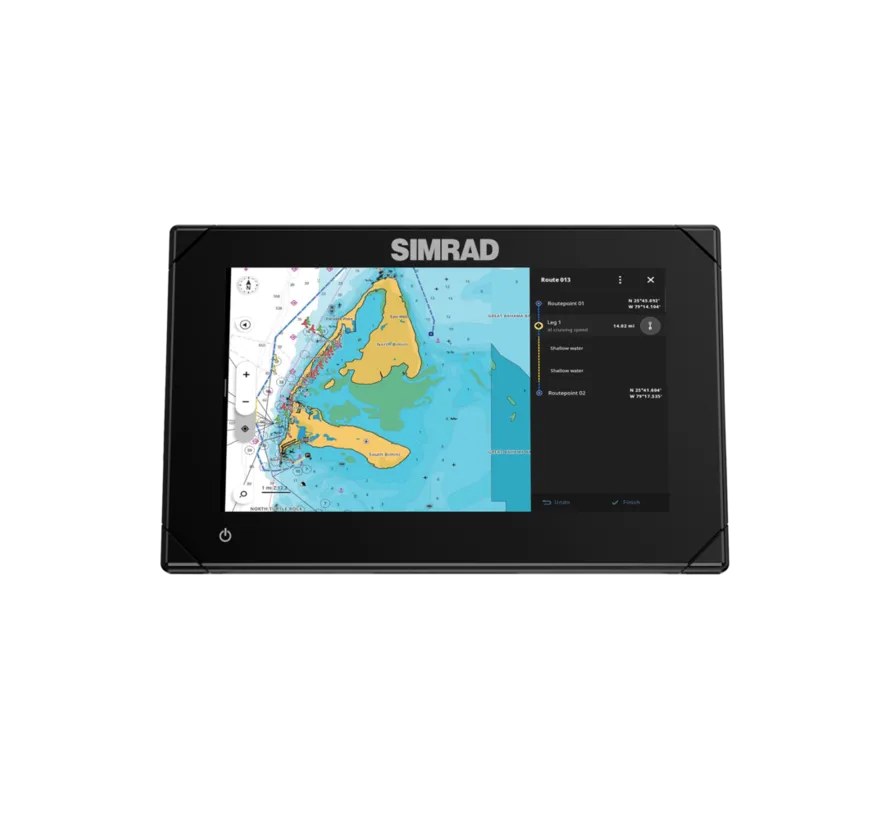

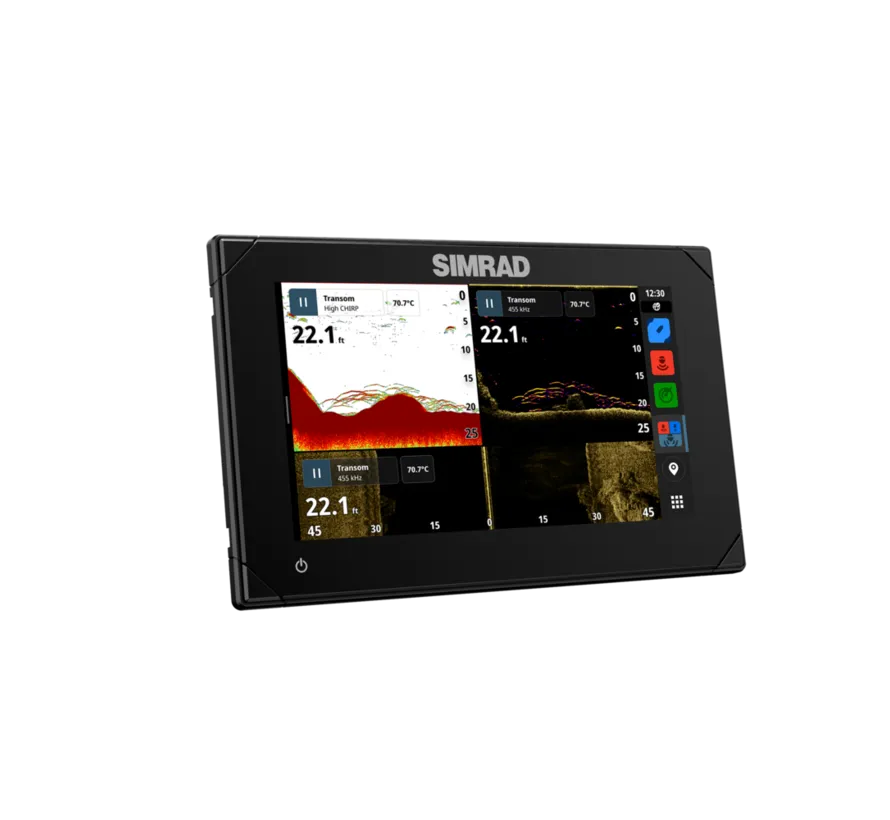

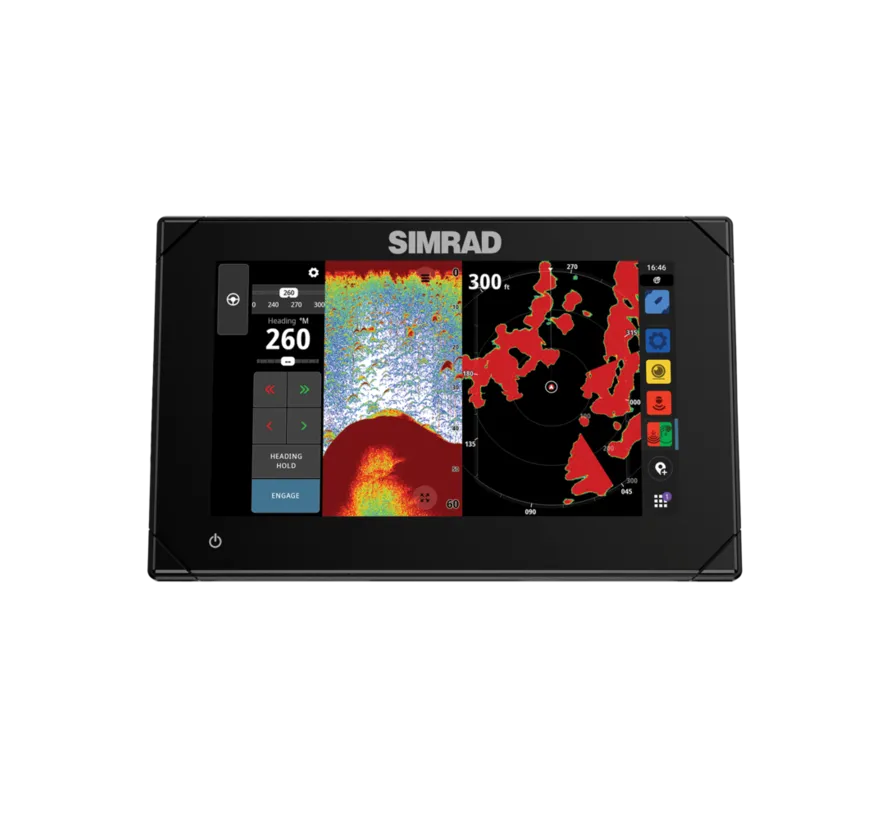

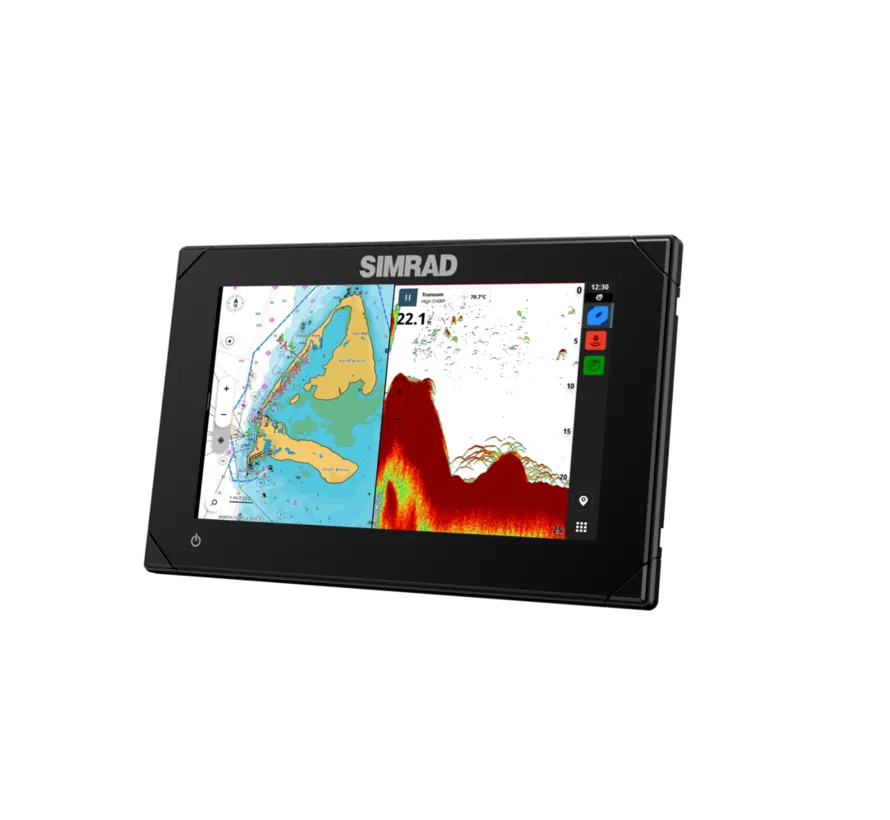

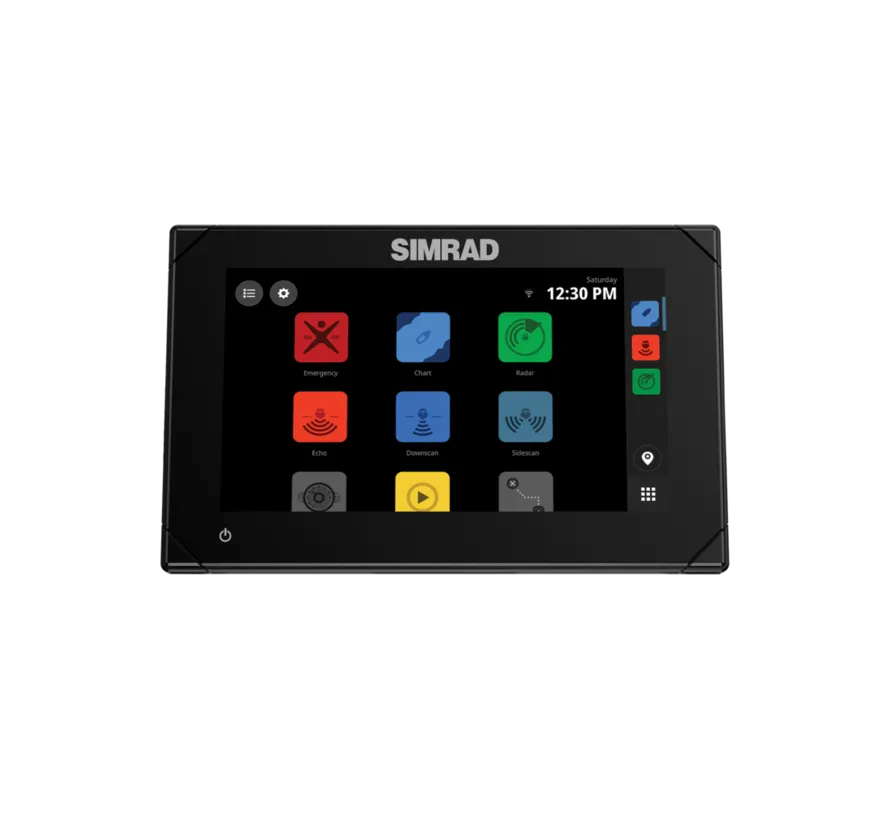

The Simrad NSX 3009 is a 9-inch multifunction chartplotter and fishfinder with integrated GPS, sonar support and extensive marine networking capabilities.
Variants
000-15219-001
- EAN: 9420064110063
- No transducer included
000-15375-001
- EAN: 9420064112005
- HDI M/H transom transducer included
- 83/200 kHz sonar
- DownScan Imaging 455/800 kHz
- Maximum depth approximately 305 m
000-15369-001
- EAN: 9420064111947
- Active Imaging 3-in-1 transducer included
- CHIRP
- SideScan
- DownScan Imaging
- FishReveal
Display
- Screen size: 9 inches
- IPS multitouch
- Resolution: 1280 × 720 pixels
- Brightness: over 1200 nits
- Viewing angle: 85°
Navigation
- Integrated 10 Hz GPS
- 32 channels
- GLONASS
- EGNOS
- WAAS
- MSAS
- Approx. 3 m horizontal accuracy
- 6000 waypoints
- 500 routes
- 50 tracks
Chart support
- C-MAP DISCOVER X
- C-MAP REVEAL X
Sonar
- One 9-pin Xsonic port
- Single-channel CHIRP
- 50/200 kHz
- HDI support
- Active Imaging support
Radar and autopilot
Compatible with suitable:
- Simrad HALO radar
- NAC-1
- NAC-2
- NAC-3
- NAC-D autopilot systems
Connectivity
- NMEA 2000
- Ethernet
- WiFi
- Bluetooth 4.0
- AIS data via NMEA 2000
- CZone digital switching
- IP camera support
Electrical specifications
- Supply voltage: 12 V DC
- Operating range: 10-17 V DC
- Maximum power consumption: 18.8 W
- Recommended fuse: 3 A
Dimensions
- 239 × 149 × 73 mm
- Weight: approx. 1.2 kg
Environmental
- IPX6 / IPX7
- Operating temperature: -15 °C to +55 °C
- Storage: -20 °C to +60 °C
Important
- Detailed chart card may need to be purchased separately.
- 000-15219-001 has no transducer.
- 000-15375-001 includes HDI M/H.
- 000-15369-001 includes Active Imaging 3-in-1.
- SideScan requires a compatible transducer such as Active Imaging 3-in-1.
