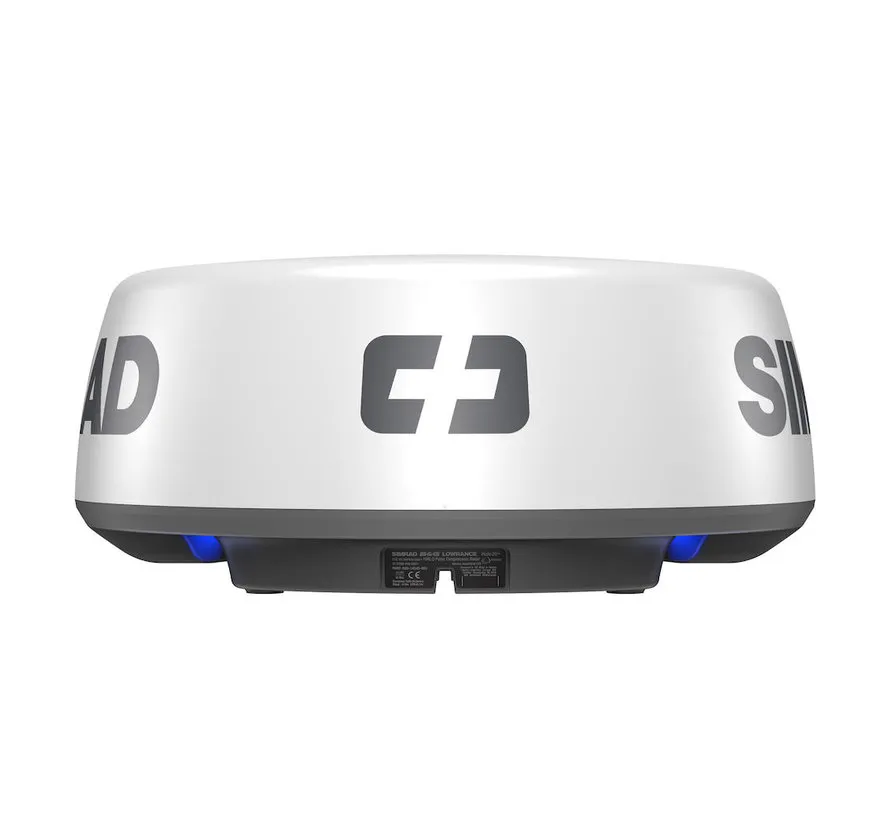

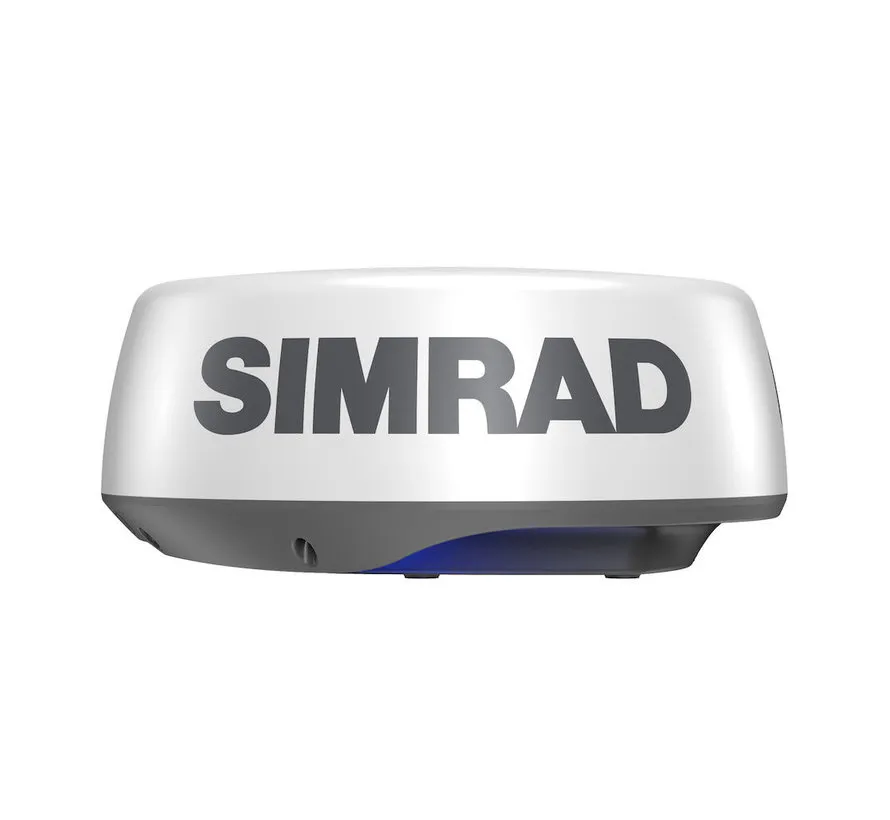

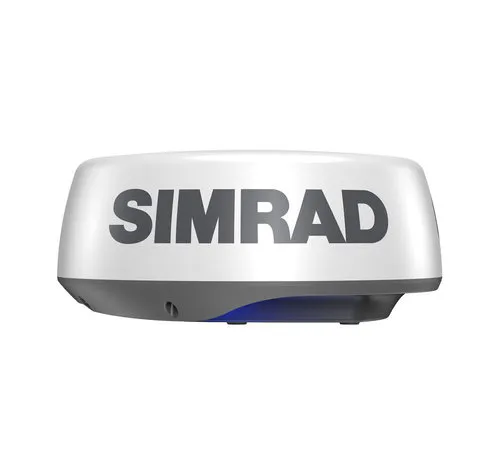

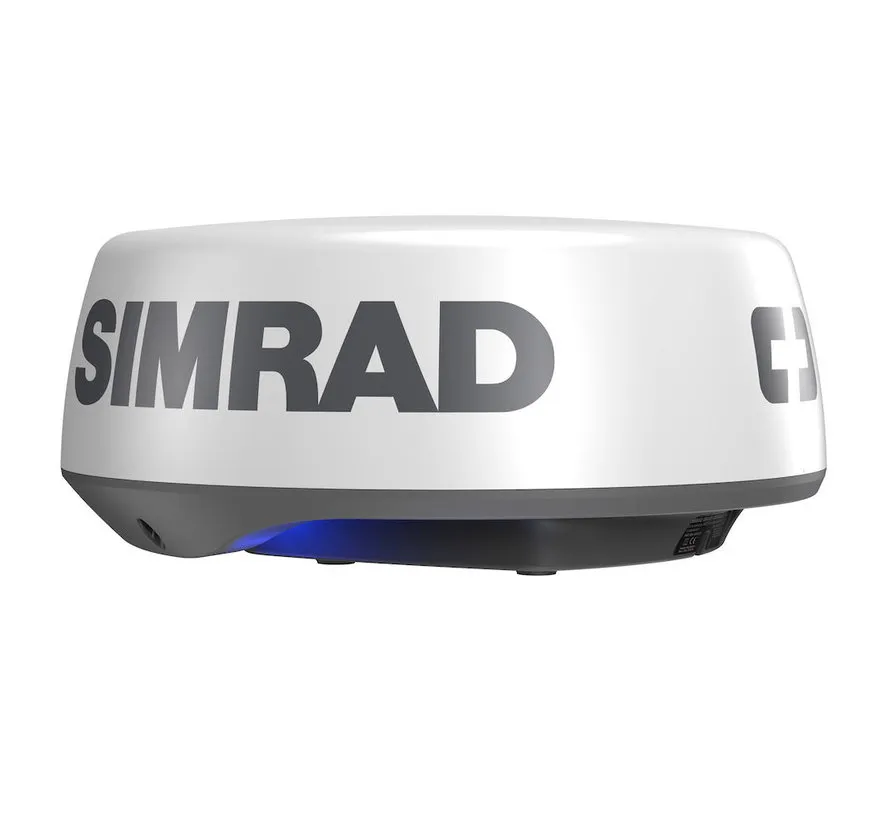

The Simrad HALO20+ is a compact 20-inch pulse compression radar designed for motorboats, sailing yachts and coastal navigation.
Pulse compression technology provides strong short-range target detection while maintaining a maximum range of up to 36 nautical miles.

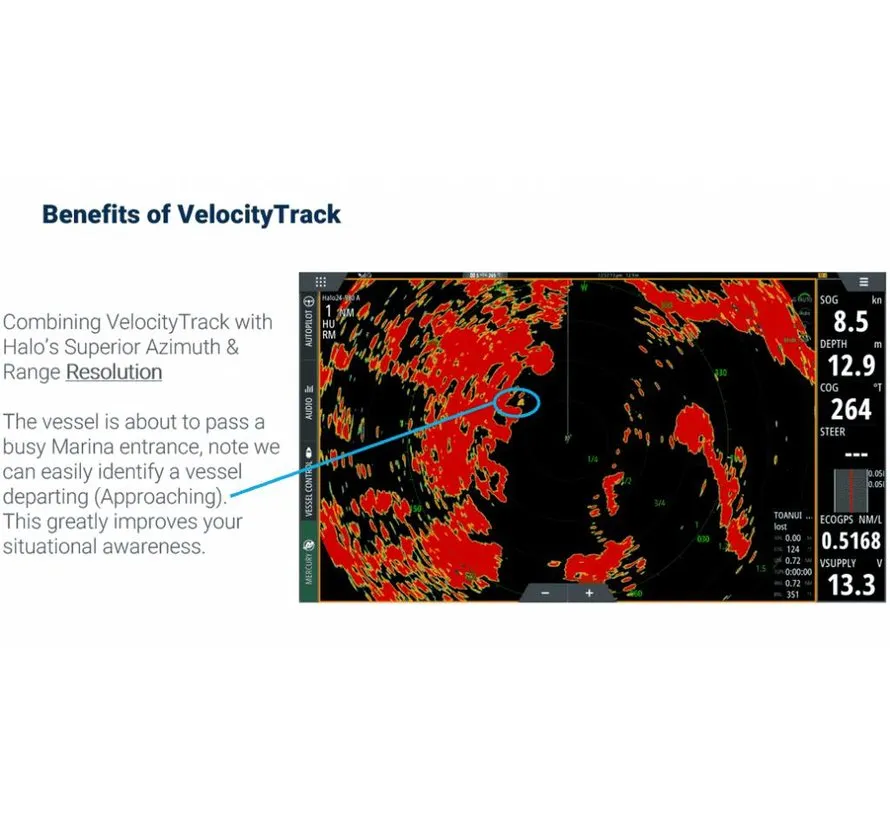

VelocityTrack Doppler technology helps identify whether targets are approaching or moving away.
Main features
- 20-inch radome
- Pulse Compression radar
- VelocityTrack Doppler
- Maximum range: 36 NM
- Minimum range: approx. 50 m

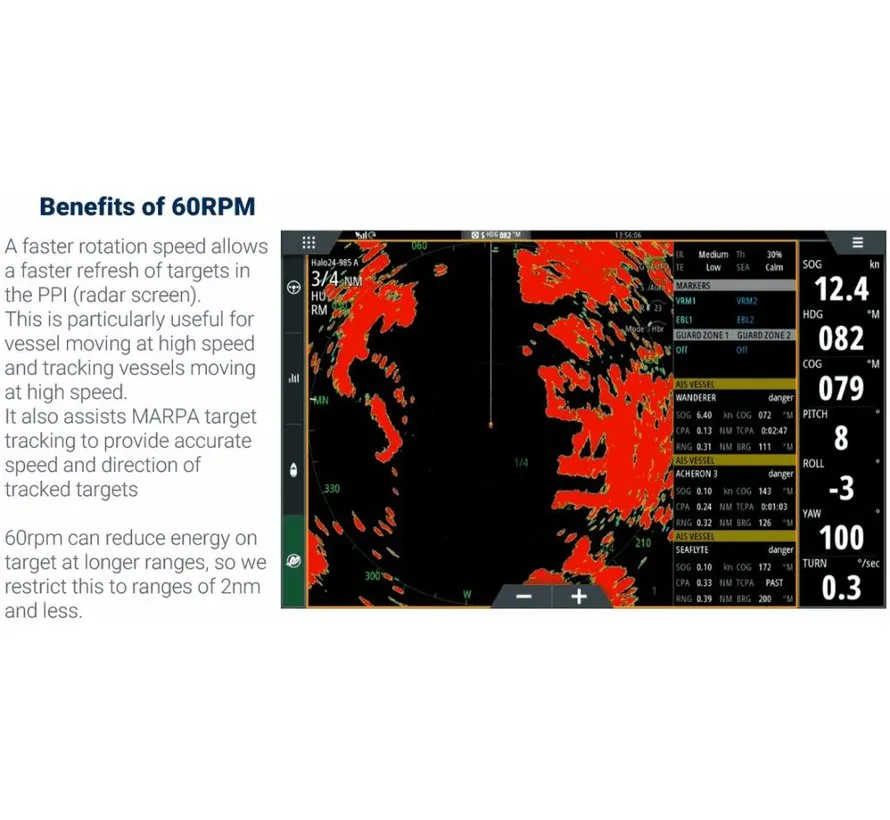

- Rotation speed: up to 60 rpm

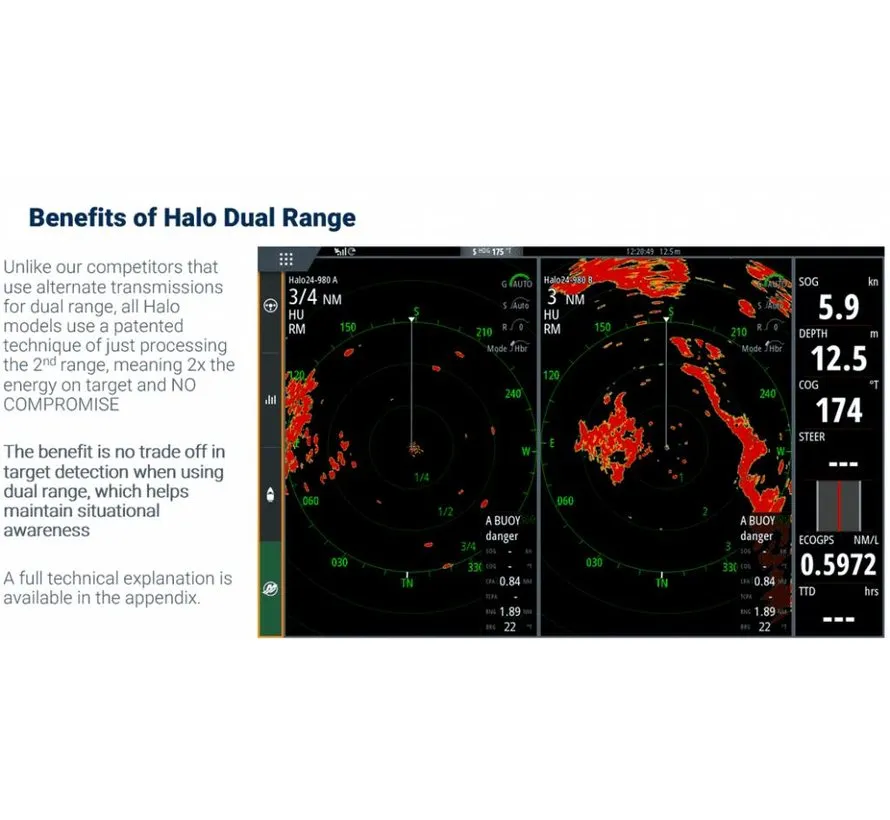

- Dual Range

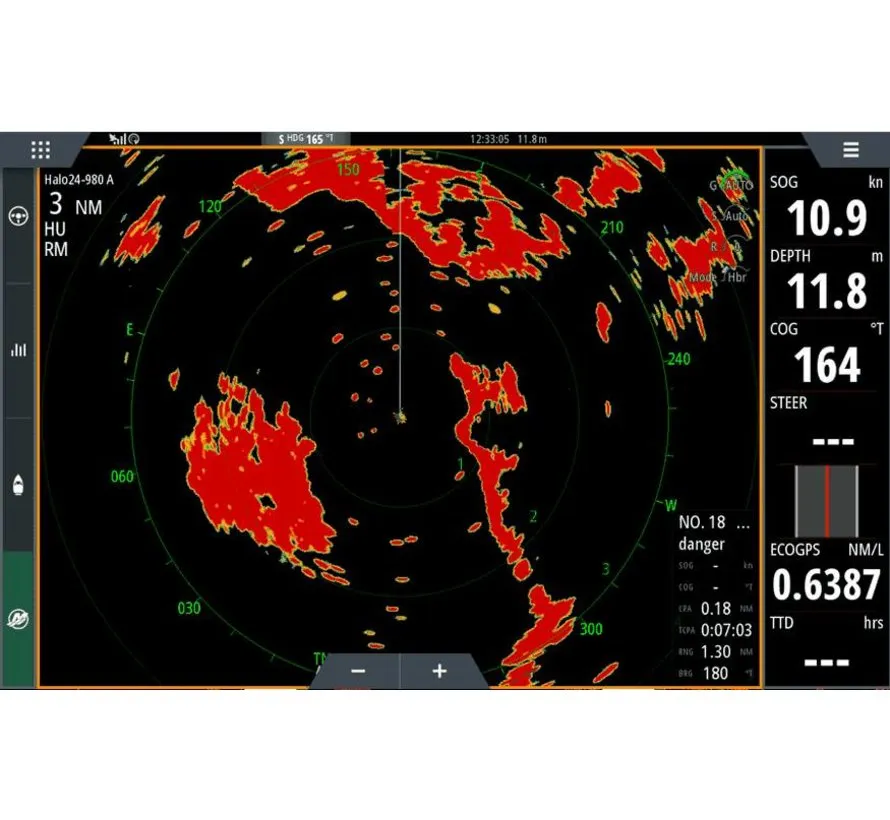

- MARPA target tracking
- Harbour mode
- Offshore mode

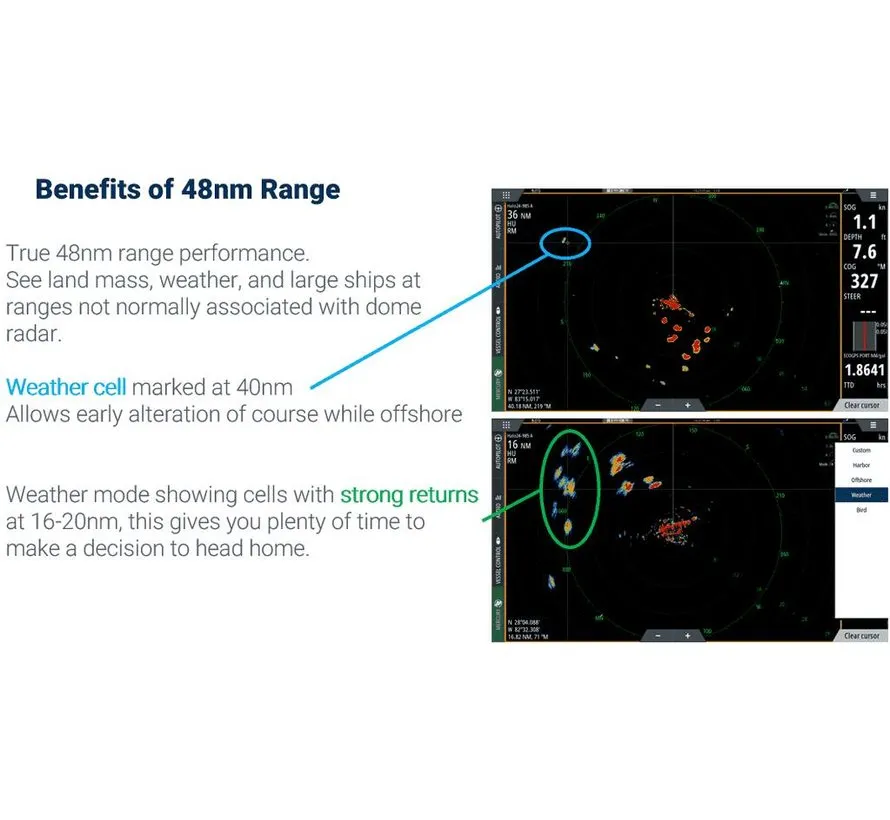

- Weather mode
- Bird mode
Radar performance
- Transmit power: approx. 25 W
- Horizontal beam width: approx. 4.9°
- Optimised target separation: approx. 2.5°
- Vertical beam width: approx. 25°
- Rotation: up to 60 rpm
Power
- Supply voltage: 10.5-31.2 V DC
- Suitable for 12 V and 24 V systems
- Typical consumption: approx. 20 W
- Maximum consumption: approx. 29 W
- Recommended fuse: 5 A
Dimensions
- Diameter: approx. 510 mm
- Height: approx. 223 mm
- Weight: approx. 5.9 kg
Environmental
- Waterproof rating: IPX6
- Operating temperature: -25 °C to +55 °C
- Maximum rated wind speed: approx. 100 knots

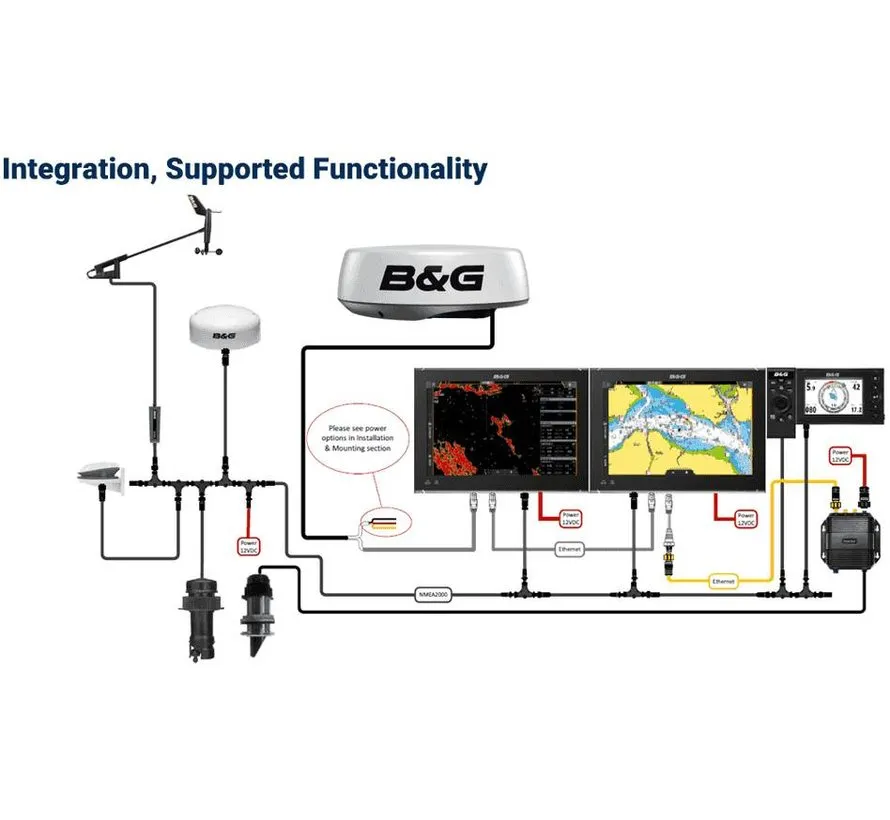

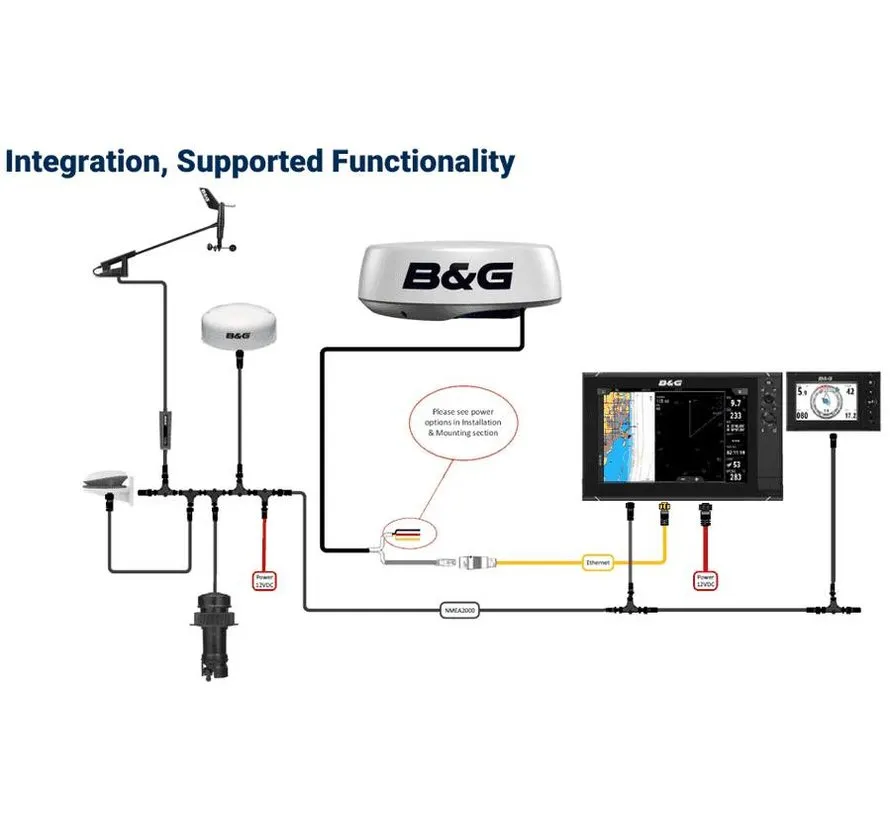

Compatibility
Compatible with suitable Simrad multifunction displays, including depending on software and network configuration:
- NSX
- NSS evo3
- NSS evo3S
- GO XSE
- GO XSR
- NSO evo3
- NSO evo3S
Package contents
- Simrad HALO20+ radar
- 10 m radar cable
- Ethernet adapter cable
- Mounting hardware
- Installation documentation
Important
- Multifunction display not included.
- Accurate heading information is recommended for radar overlay.
- Some MARPA functions require additional network data.
- Radar should be installed with an unobstructed field of view.
Manual Simrad HALO20+ doppler radar.
