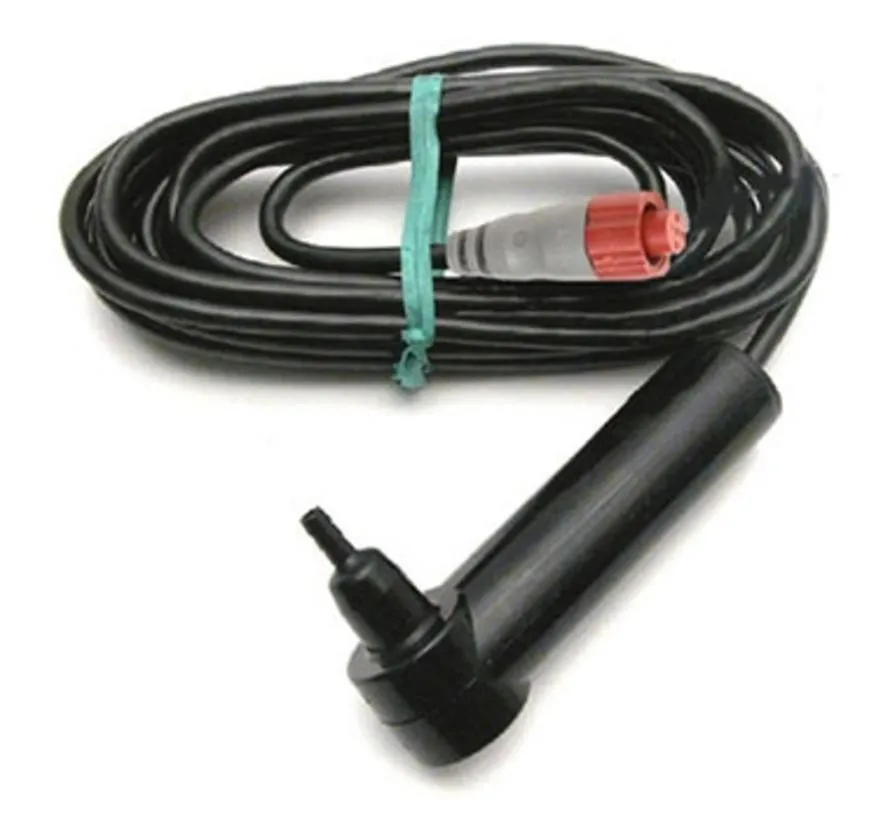

The Lowrance NMEA 2000 Pressure Sensor is designed to measure and share pressure data within a marine NMEA 2000 network. It is pre-configured for engine water pressure and can be configured with compatible displays for other applications, including engine oil pressure, boost pressure, transmission oil pressure or pitot speed.
With a 3 metre / 10 ft cable and a maximum pressure rating of 100 PSI / 689 kPa, this sensor is suitable for engine monitoring and onboard instrument data. Suppliers also list an NMEA 2000 T-connector in the delivery.
Key features
- NMEA 2000 pressure sensor
- Pre-configured for engine water pressure
- Configurable for engine oil pressure
- Configurable for boost pressure
- Configurable for transmission oil pressure
- Configurable for pitot speed
- Maximum pressure: 100 PSI / 689 kPa
- Cable length: 3 m / 10 ft
- Suitable for Lowrance, Simrad and B&G systems
- Replacement for EP-90 according to supplier information
- For engine monitoring and network data onboard
- Configurable only via compatible displays/gauges
Product specifications
- Brand: Lowrance / Navico
- Article code: 000-11523-001
- Product type: pressure sensor
- Network: NMEA 2000
- Connector: Micro-C / NMEA 2000
- Cable length: 3 m / 10 ft
- Maximum pressure: 100 PSI / 689 kPa
- Default configuration: engine water pressure
- Possible configurations: engine water pressure, engine oil pressure, boost pressure, transmission oil pressure, pitot speed
- Compatible with: suitable Lowrance, Simrad and B&G displays/gauges
- Supplied according to supplier: pressure sensor and NMEA 2000 T-connector
- Not included: display, NMEA 2000 backbone, power supply or fitting tools
- Check advice: verify display and NMEA 2000 network compatibility before installation
