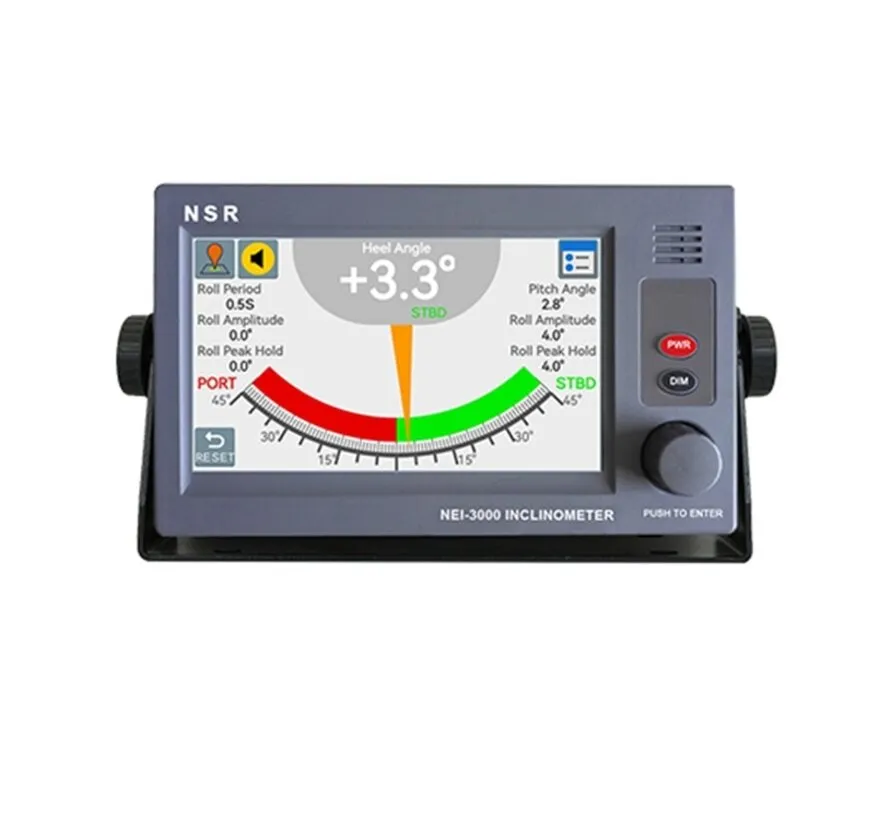

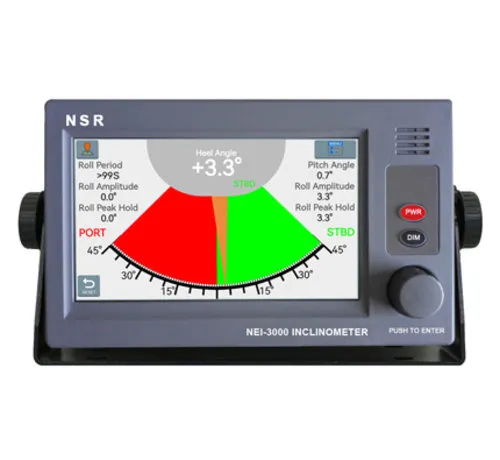

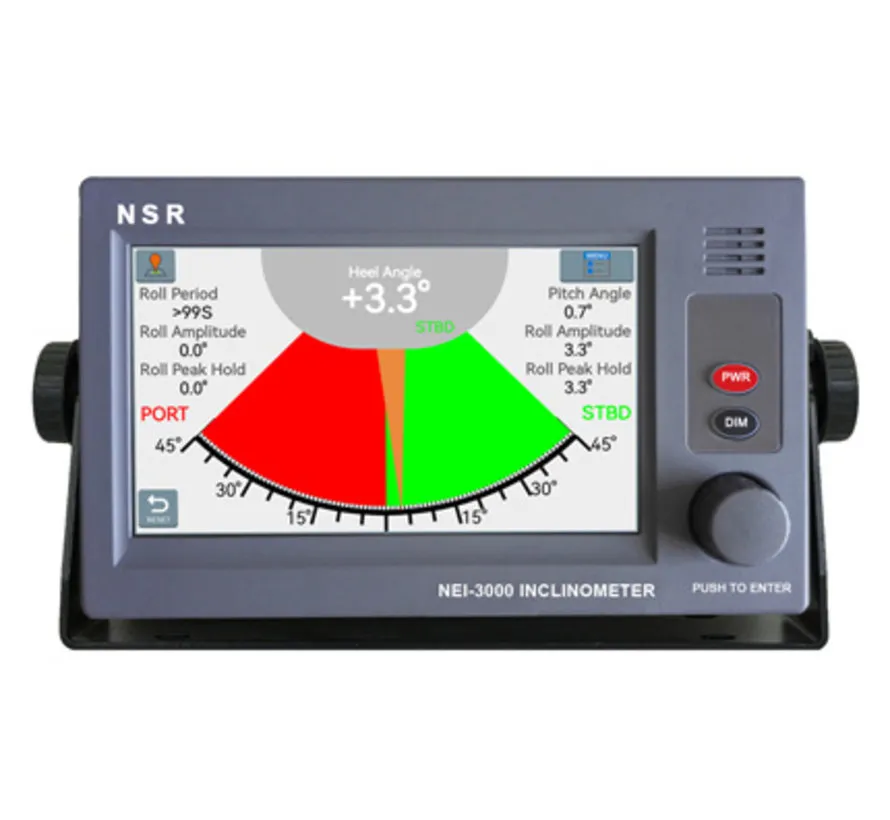

The NSR NEI-3000 is an electronic inclinometer for vessel navigation and onboard stability monitoring. It measures and displays heel angle, roll amplitude, roll period and pitch angle. This supports the bridge team when assessing vessel motion and stability information.
This version is supplied as a complete set, including display unit, sensor unit, power supply unit, NEB700A flush mount bracket and accessories. This makes the set suitable for fixed installation on the bridge or in a technical navigation panel.
Key features
- Electronic inclinometer for ships
- Measures heel angle
- Measures roll amplitude
- Measures roll period
- Measures pitch angle
- Large 7 inch colour LCD
- Touchscreen operation
- Android O/S for easy operation
- Data interface to BAM/INS
- Heel angle log for the latest 3 minutes
- Roll amplitude log for the latest 30 minutes
- Designed for onboard navigation and stability monitoring
- Complete set for fixed installation
- Includes sensor, power supply, flush mount bracket and accessories
Supplied / standard set
- Display unit
- Sensor unit
- Power supply unit
- NEB700A flush mount bracket
- Accessories
Product specifications
- Brand: NSR Marine
- Model: NEI-3000
- Product type: electronic inclinometer / vessel heel monitor
- Delivery: 1 complete set
- Application: vessel navigation, stability monitoring and bridge equipment
- Display: 7 inch colour LCD touchscreen
- Resolution: 1024 × 600
- Operating system: Android
- Heel angle:
- Range: ±90°
- Accuracy: ±1°
- Roll amplitude:
- Range: ±90°
- Accuracy: ±1°
- Roll period:
- Range: 4-40 seconds
- Accuracy: ±1 second
- Pitch angle:
- Range: ±90°
- Accuracy: ±1°
- Interface: I/O sentence according to IEC 61162-1 and IEC 61162-2
- Data interface: to BAM/INS
- Power supply: AC 220 V / DC 24 V
- DC range: 9-36 V DC
- Power consumption: <10 W
- Display unit dimensions: 145 x 264 x 83 mm
- IP grade: IP22
- Mounting: flush mount possible with supplied NEB700A bracket
- Application: bridge, wheelhouse, navigation panel and professional vessel installations
Datasheet NSR NEI-3000 electronic inclinometer - elektronische hellingmeter.
