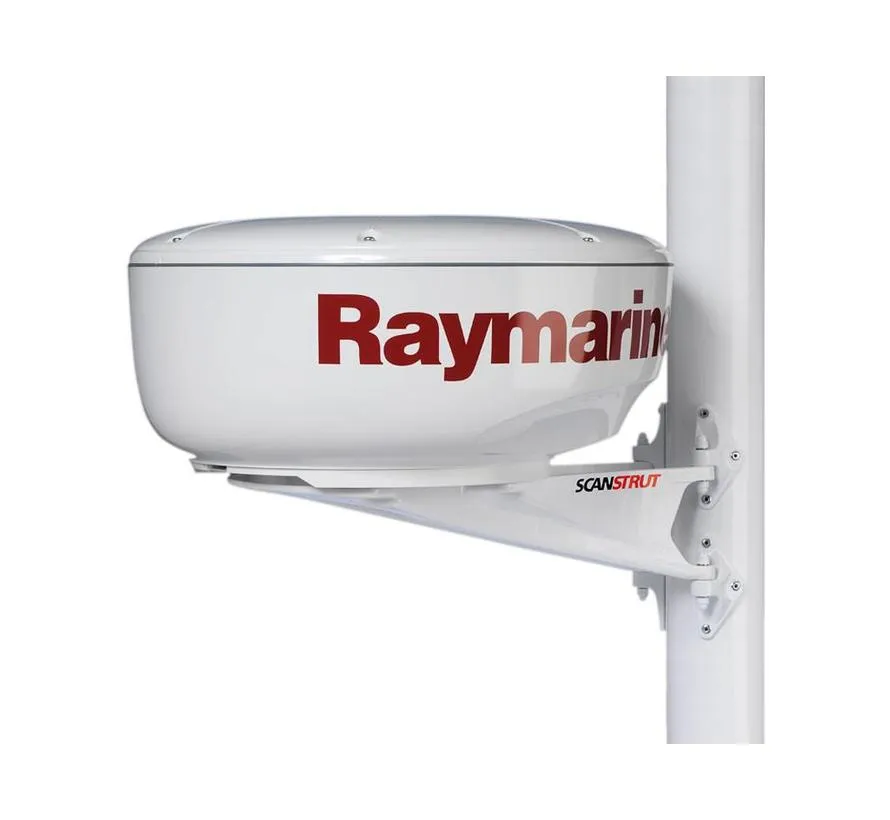

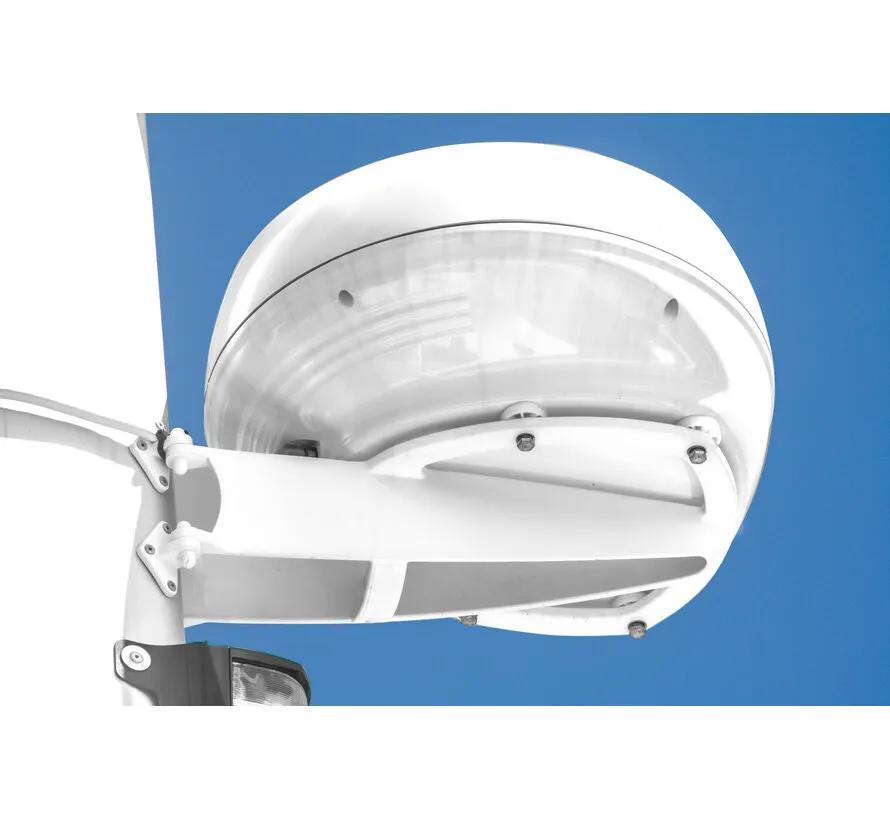

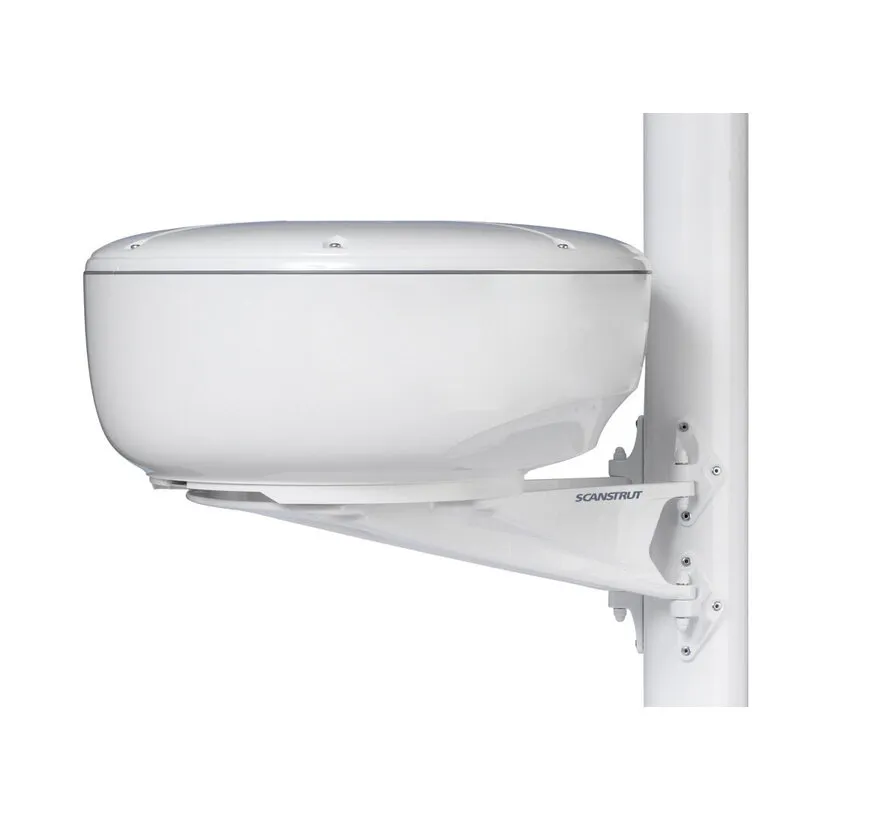

The Scanstrut M92722 is a robust universal mast mount designed for 18- and 24-inch radome radar systems on sailing yachts.
It is manufactured from marine-grade aluminium and finished with Scanstrut's four-step marine paint system for long-term corrosion protection.
Four swivel mounting feet allow the bracket to adapt to different mast profiles. A strong 12-point fixing system with high-quality Monel rivets provides secure installation.
A key feature of the M92722 is the ability to add a separate Scanstrut radar guard for additional protection.
Key features
• Universal radar mast mount
• Suitable for 18- and 24-inch radomes
• Designed for sailing yachts
• Radar guard can be added
• Marine-grade aluminium
• Four-step marine paint system
• Four swivel mounting feet
• 12-point fixing
• High-quality Monel rivets
• Compact mounting
• Independent safety wire
• Minimum mast width 65 mm
• No specified maximum mast width
• 3-year warranty
M92722_Platform_Mounting_Dimensions
Compatible radar systems
B&G
• 3G/4G with radar guard
• HALO20 with radar guard
• HALO20+ with radar guard
• HALO24
• HALO24 with radar guard
Garmin
• Fantom 18 with radar guard
• Fantom 24
• Fantom 24 with radar guard
• GMR 18 with radar guard
• GMR 24 with radar guard
• GMR24HD / 24xHD
Lowrance
• HALO20 with radar guard
• HALO20+ with radar guard
• HALO24
Raymarine
• Quantum with radar guard
• Quantum 2 with radar guard
• RD218
• RD418 / RD418HD
• RD418/RD418HD with radar guard
Simrad
• GB40
• NX40 / NX45
• NSE8 / NSE12
• HALO20 with radar guard
• HALO20+ with radar guard
• HALO24
Optional accessories
• Scanstrut radar guard depending on radar model
• Scanstrut 50100 mast adapter kit
• M92722 replacement foot pack: 15001R
