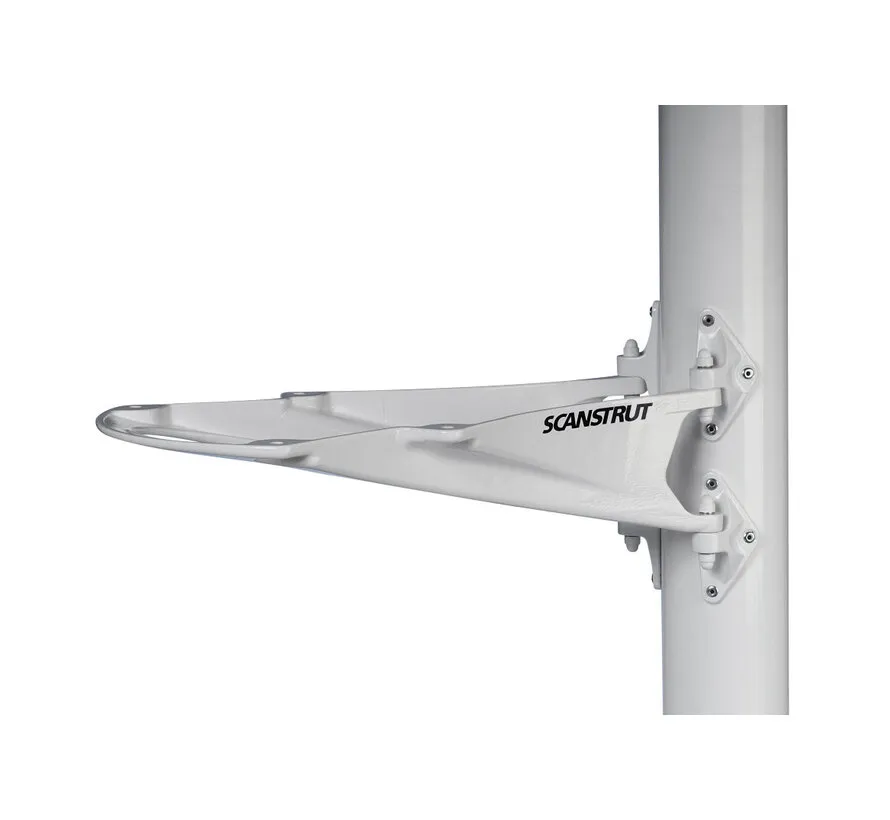

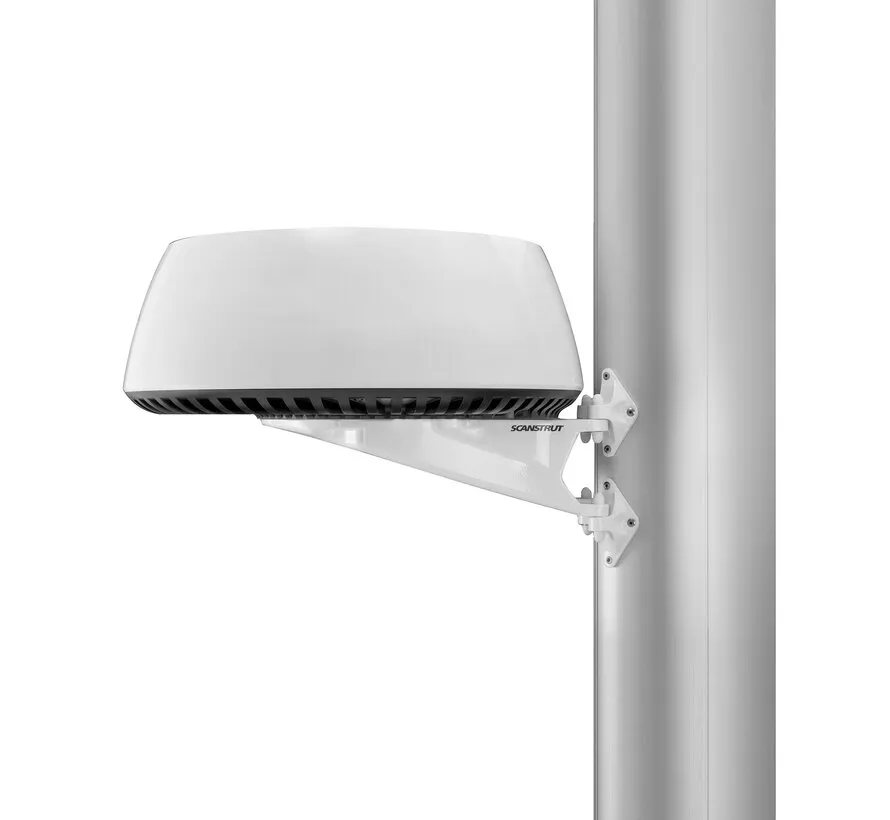

The Scanstrut SC20 is a professional universal mast mount designed for compact radar and satellite antennas.
Four swivel mounting feet allow the bracket to conform to a wide variety of mast profiles. A strong 12-point fixing system using high-quality Monel rivets provides secure installation.
The SC20 is manufactured from marine-grade aluminium and protected by Scanstrut's four-step marine paint system for long-term corrosion resistance.
Its compact design positions the radar as close to the front of the mast as possible.
A separate safety wire system secures the radar to the mast in the event that the primary mounting system is damaged.
Key features
• Universal radar mast mount
• Fits a wide variety of mast profiles
• Four swivel mounting feet
• Strong 12-point fixing
• High-quality Monel rivets
• Marine-grade aluminium
• White marine finish
• Scanstrut 4-step marine paint system
• Compact radar installation
• Safety wire system
• Minimum mast width 65 mm
• No specified maximum mast width
• Compatible with numerous 18-inch radomes
• 3-year warranty
SC20_Platform_Mounting_Dimensions
Compatible radar antennas
B&G
• Broadband 3G
• Broadband 4G
• HALO20
• HALO20+
Simrad
• Broadband 3G
• Broadband 4G
• DX45
• HALO20
• HALO20+
Lowrance
• Broadband 3G
• Broadband 4G
• HALO20
• HALO20+
Garmin
• Fantom 18
• GMR18 HD
• GMR18xHD
• GMR18 HD+
• GMR40
Raymarine
• Quantum
• Quantum 2
• 37STV
Optional accessories
• Scanstrut 50100 mast mount adapter kit
• Scanstrut 15001 replacement foot pack
