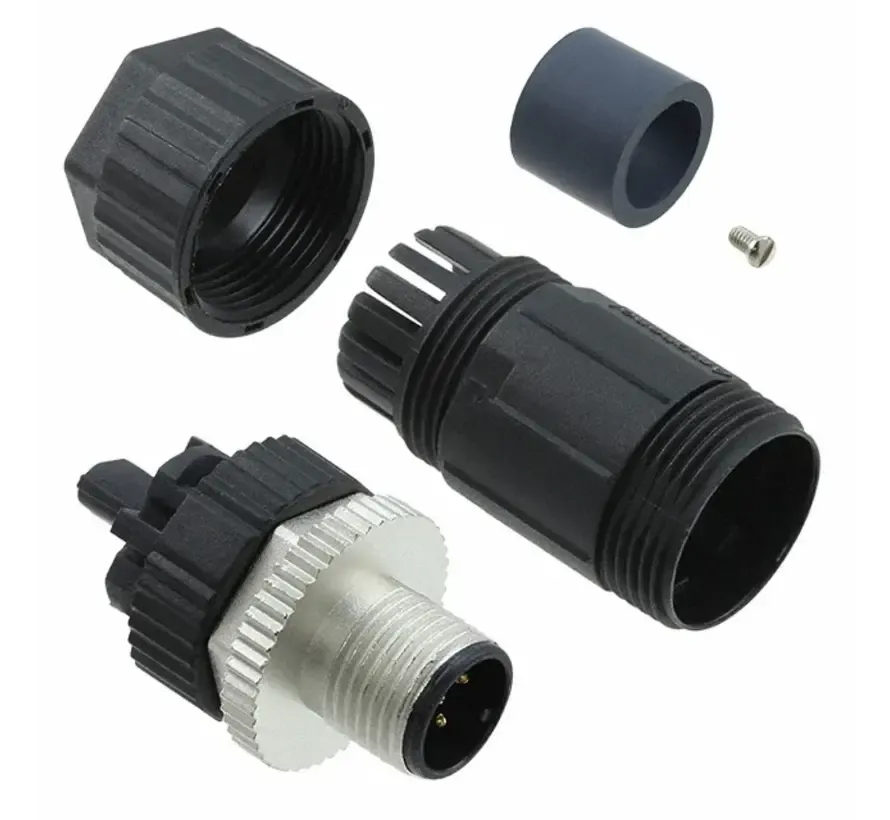

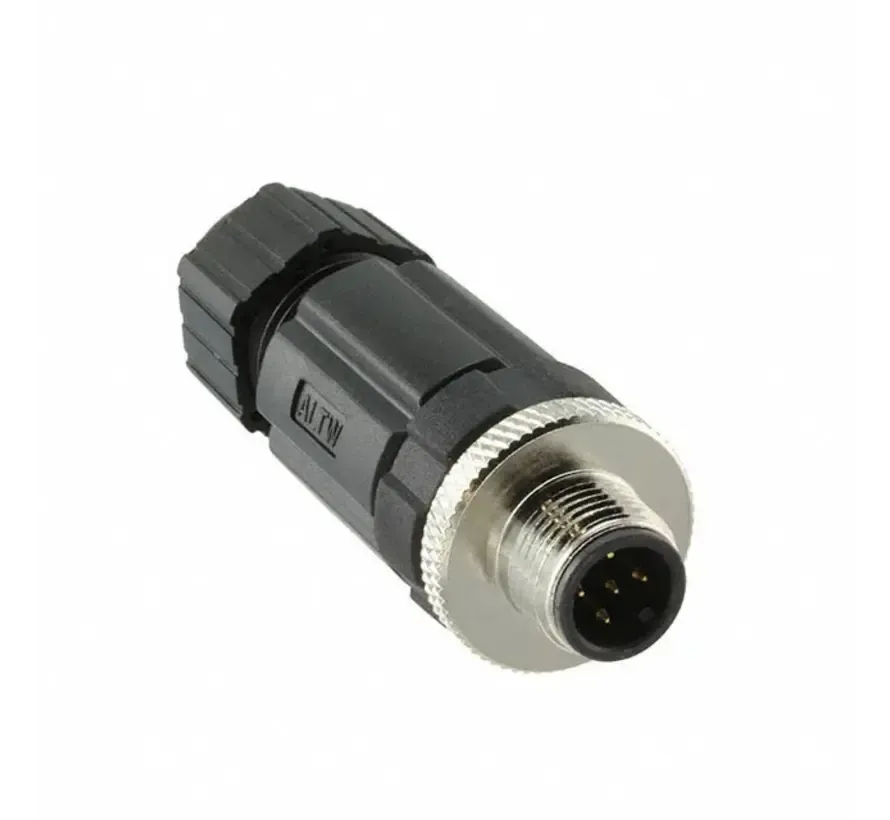

The Amphenol M12 A-coded 5-pin connector is a self-installable field connector for NMEA2000, sensors, data networks and technical signal cabling. The connector can be mounted directly to a suitable cable, making it practical for custom onboard cable assemblies.
Key features
- Self-installable M12 connector
- Suitable for NMEA2000 cabling and technical signal applications
- A-coded version
- 5-pin male connector
- Straight design
- Screw termination for conductors
- No special crimping tool required
- IP67 when correctly mated
- Suitable for cable diameter approx. 4.0 - 8.0 mm
- Robust connector for industrial and marine environments
Product specifications
- Brand: Amphenol LTW / Amphenol Industrial
- Article code: M12A-05BMMB-SL7001
- Product type: self-installable M12 field connector
- Application: NMEA2000, sensor cables, signal cabling, marine electronics
- Coding: A-coded
- Number of pins: 5
- Connector side: male / plug
- Contact type: male pin
- Connector shape: straight
- Mounting type: free-hanging / inline
- Termination: screw termination
- Locking system: M12 thread
- Rated current: 4 A
- Rated voltage: 60 V AC/DC
- Protection rating: IP67 mated
- Cable diameter: approx. 4.0 - 8.0 mm
- Operating temperature: -40 °C to +105 °C
- Variants: this item is the straight 5-pin male A-coded self-installable connector
