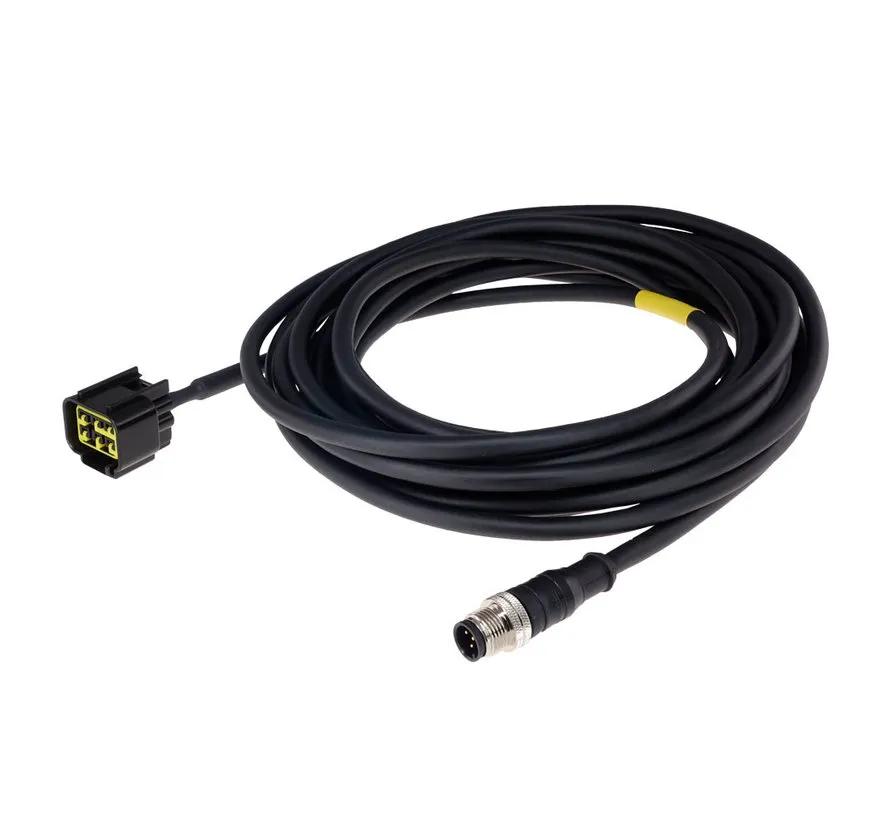

The LXNAV Yamaha NMEA2000 cable is designed to connect a suitable Yamaha outboard engine to an NMEA2000 network. It allows engine data to be made available on a compatible chartplotter, multifunction display or NMEA2000 instrument.
Key features
- Engine cable for Yamaha outboards with NMEA2000 support
- Connects the Yamaha engine interface to the NMEA2000 network
- Makes engine data available on chartplotter, MFD or instrument
- Plug-and-play use within standard NMEA2000 systems
- Listed compatibility with Lowrance, Raymarine, Simrad, Navico, Humminbird, Furuno, LXNAV and Garmin
- Suitable for Yamaha engines without CommandLink Plus system
- For Yamaha outboards from approx. model year 2006 onward, depending on engine type
- Available in multiple cable lengths
- Technical cable for marine engine data and onboard networks
Product specifications
- Brand: LXNAV
- Product type: Yamaha engine to NMEA2000 cable
- Application: Yamaha engine data transfer via NMEA2000
- Network standard: NMEA2000
- Suitable for: Yamaha outboard engines with standard NMEA2000 support
- Listed system compatibility: Lowrance, Raymarine, Simrad, Navico, Humminbird, Furuno, LXNAV, Garmin
- Available lengths:
- 1 metre
- 3 metres
- 6 metres
- Engine-side connection: Yamaha engine connector
- Network-side connection: NMEA2000 / M12 network connector
- Use: engine data to chartplotter, MFD or NMEA2000 instrument
- Listed Yamaha model examples: F50, T50, F60, T60, F75, F90, F115, LF115, F150, LF150, F200, LF200, F225, F250
- Not intended for: Yamaha CommandLink Plus systems unless the installation explicitly supports this
