Mercury VesselView Link, Fully integrate your multifunction display with your Mercury propulsion system through the VesselView Link.
The system fits single engine models and is your connection to all the amenities SmartCraft has to offer. Available for compatible Lowrance and Simrad displays, VesselView Link puts all VesselView information and controls at the tips of your fingers.
With an easy-to-navigate user interface, you can integrate the following systems into one display.
Chartplotter
Sonar/fishfinder
Radar
VHF
AIS (Automatic Identification System)
Sonic Hub/Fusion Link
C-Zone Digital Switching

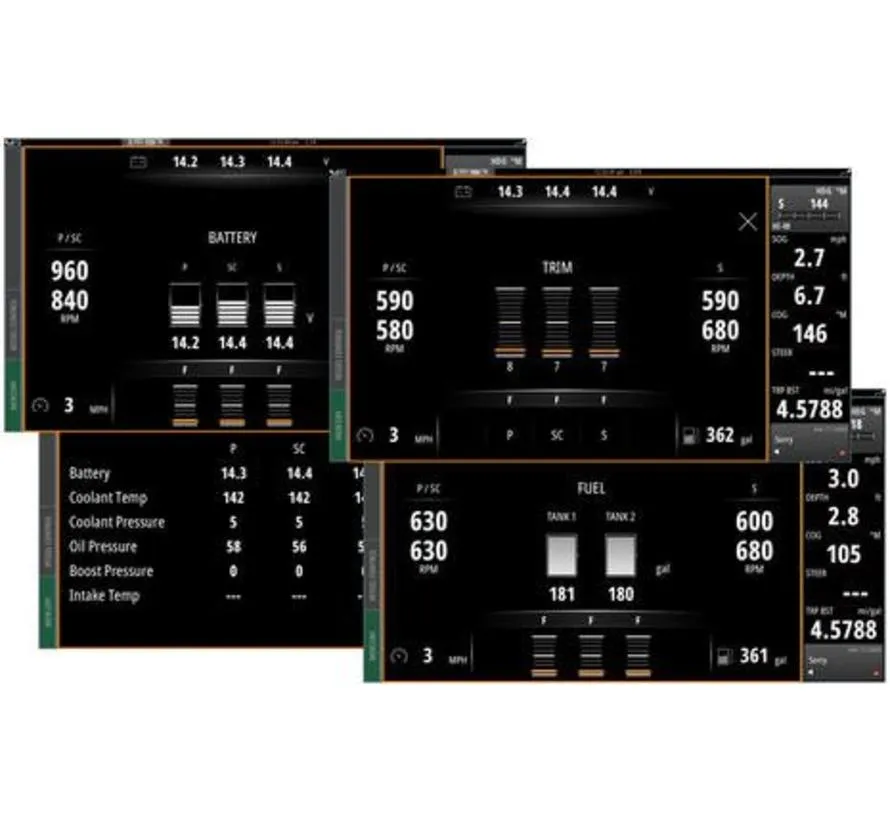

The Mercury VesselView Link shows you the most relevant engine information engine on the main screen, such as;
RPM
Speed
Fuel remaining
Voltage
Trim & Tabs
Mercury VesselView Link is your digital interface with advanced SmartCraft® technology. It gives you instant access to all data from the engine, battery, oil pressure, fuel level and much more. The data provided by the VesselView can be displayed simultaneously on the screen while you are, for example, fishing; you then simply split your screen image into two or more images.
The Mercury VesselView Link can be used with the following displays:
- Lowrance HDS gen2 Touch
- Lowrance HDS gen3
- Lowrance Carbon
- Lowrance Elite Ti*
- Simrad NSS evo2
- Simrad NSS evo3
- Simrad NSO evo2
- Simrad GO serie
Mercury VesselView Link Specifications:
Technical/Environmental
Specified Standards IPX5
Product Width [mm] 148
Product Height 125
Product Depth [mm] 26
Networking Connectors
NMEA 2000 Certified Yes -
Power
Power Consumption < 2.5 amps
Power Supply (Supply Voltage) 12v from SmartCraft® network
Mercury VesselView Link brochure.
