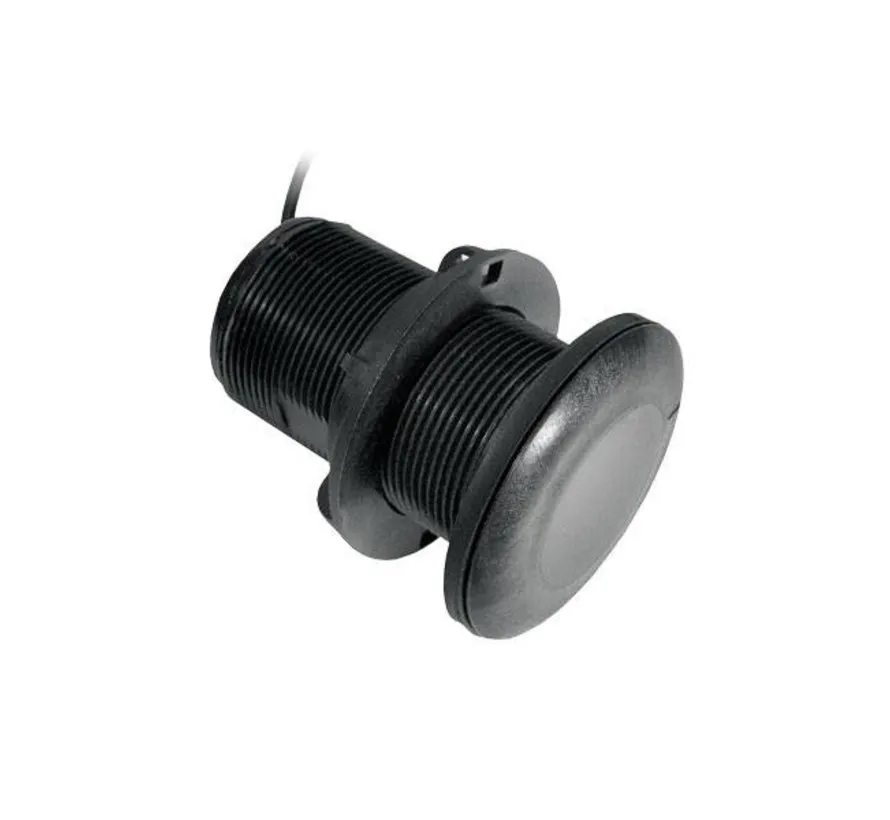

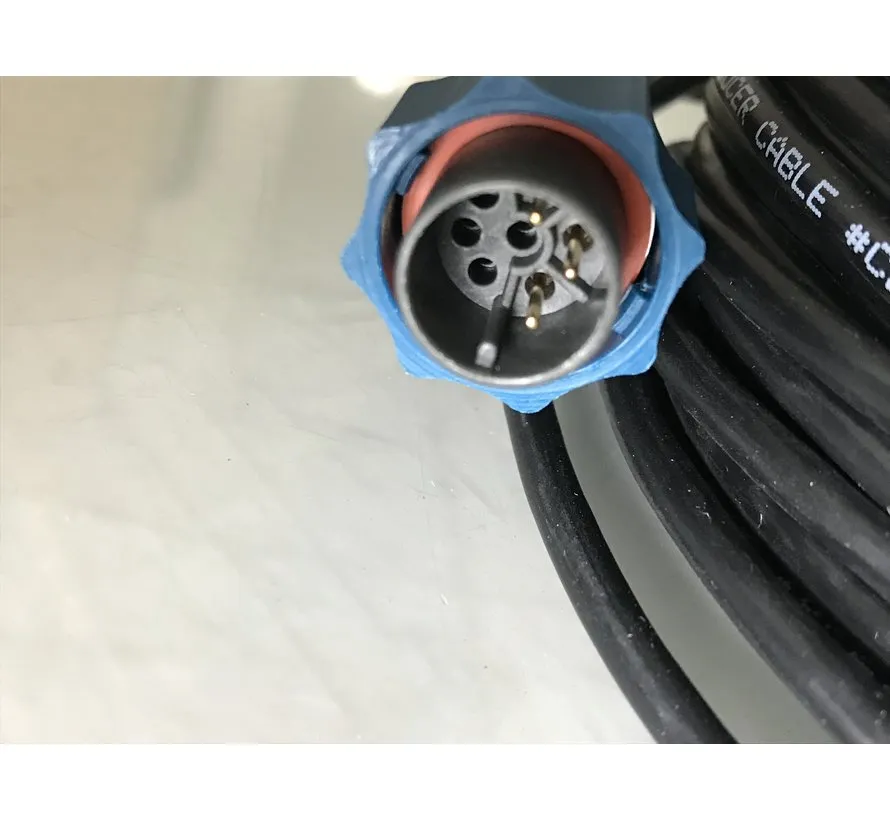

Lowrance Airmar P19 (0° Tilt) for thru-hull mounting, for fiberglass and metal hulls. Equipped with a blue connector.

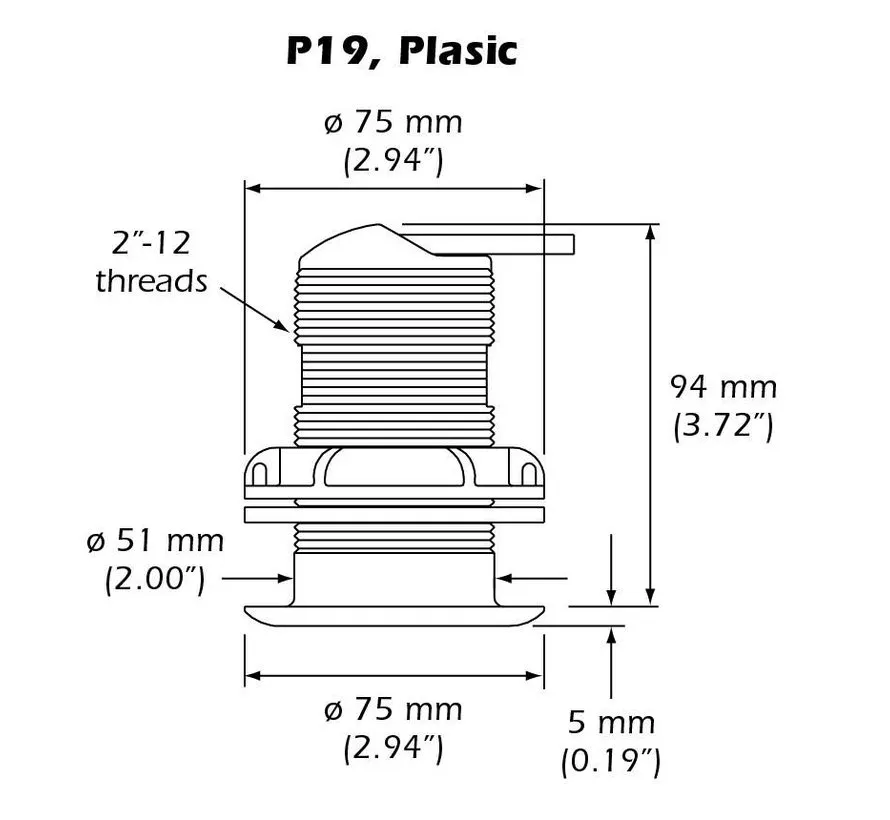

This 3-pin, 500W transducer has a depth rating of 900 ft, an operating frequency of 77/200 kHz, and a beamwidth of 45/15 degrees. This transducer features a nearly flat housing that minimizes drag, extending only 5 mm (3/16") beyond the hull.
The transducer kit comes with installation instructions; follow them carefully.
CAUTION: Do not use on wooden hulls.
Specifications Lowrance Airmar P19 (0° Tilt):
Frequency: 77/200 kHz
Power: 500 W
Beamwidth: 45/15 mm
Maximum depth: 900 ft
Depth:
Number of pins: 3-pin
Cable length: 30 ft/9 meters
Weight: 0.5 kg
