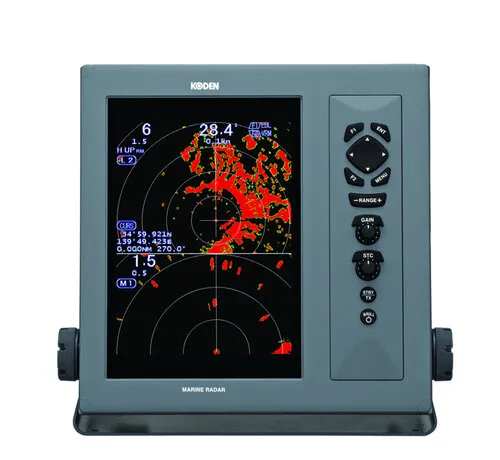

The Koden MDC-2004A set consists of MRD-104A and RB804
Radome antenna of 1.2 ft with 10 meters of cable.
Includes power cable and mounting material.
10.4 inch LCD screen.
Functions:
True trail function
The display precisely shows the movement of other ships, such as drawing tails, while land and buoys are shown as stationary objects, even while your ship is moving. This allows you to easily distinguish moving and stationary objects.
Dual range display
The exclusive dual-range radar feature allows you to view a split-screen view of both long- and short-range targets simultaneously. It's like having two radars in one.
Real-time smooth head-up indication
The image moves smoothly in proportion to the changing bearing.
ATA with up to 50 targets as an option
The handy ATA function (Automatic Tracking Aid) is optionally available. The latest movements of other ships can be displayed instantly in vector and numerical form, ensuring safe navigation. When the automatic acquisition zone is set, targets up to 50 entering the zone will be automatically locked.
AIS interface up to 100 targets as option
When connected to an AIS receiver, the radar displays information on up to 100 targets, including the name, course and speed of any vessel fitted with an AIS transmitter.
CCD camera input
Accepts CCD camera input, allowing you to view both above and below deck when steering.
Clear and easy to read display
The LCD screen and the acrylic plate with anti-reflective coating filter are directly connected to each other. It increases visibility in direct sunlight and prevents condensation.
RGB output
RGB output available for a connected external monitor. You can follow the radar even when you are not steering.
MDC-2004A 4kW / 32nm / 1.2ft Radome
Dimensions 320 (H) x 364 (W) x 184 (D) mm
Weight 8.1 kg
Power supply 10.8 to 31.2 VDC
