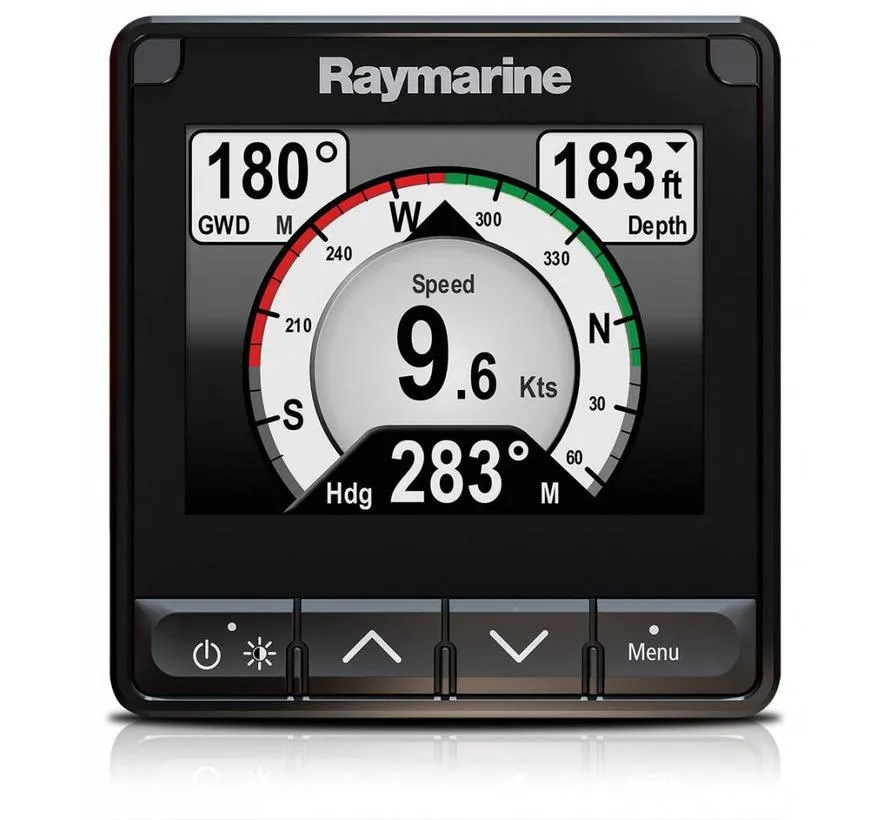

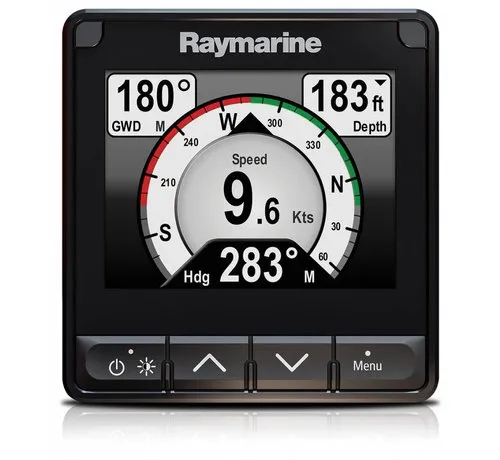

The Raymarine i70s is a multifunction colour instrument designed to display navigation, sailing, engine and sensor data available on a SeaTalkNG or compatible NMEA 2000 network.

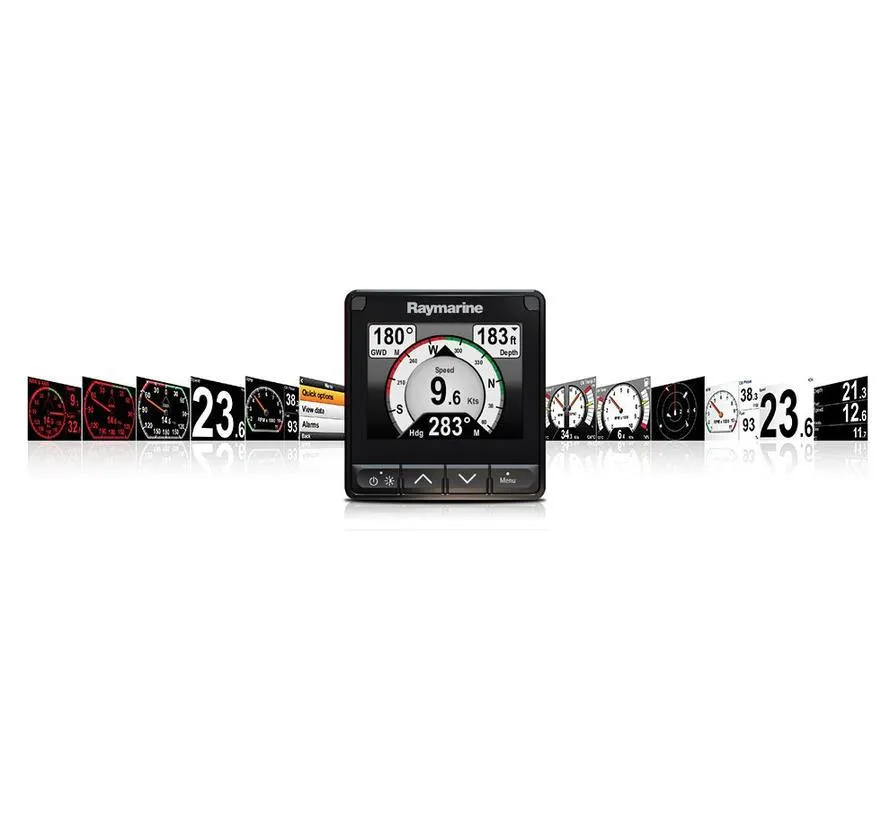

Display options
- Wind
- Speed through water
- Speed over ground
- Depth
- Tridata
- Navigation

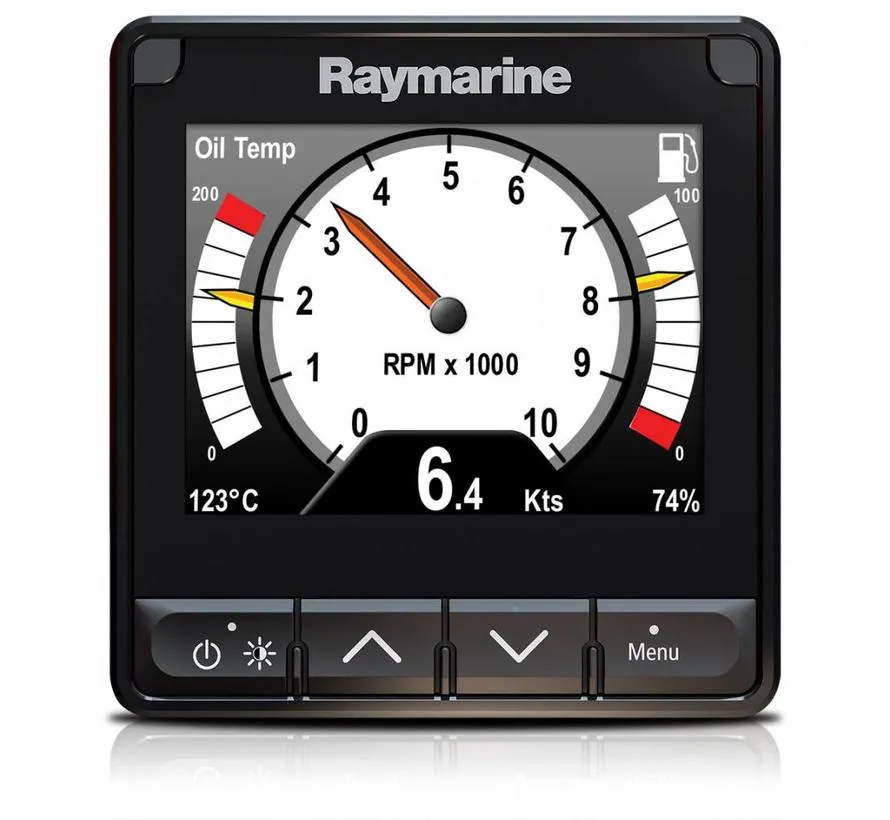

- Engine data
- Fuel data
- Environmental data
- Rudder position

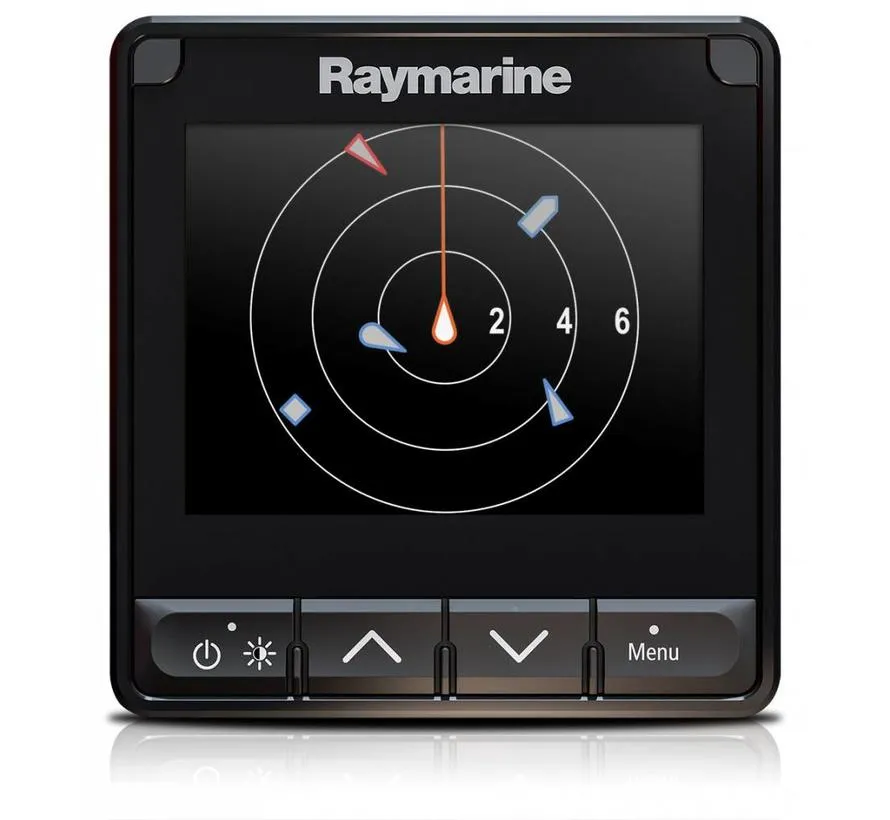

- AIS targets
- Compass heading

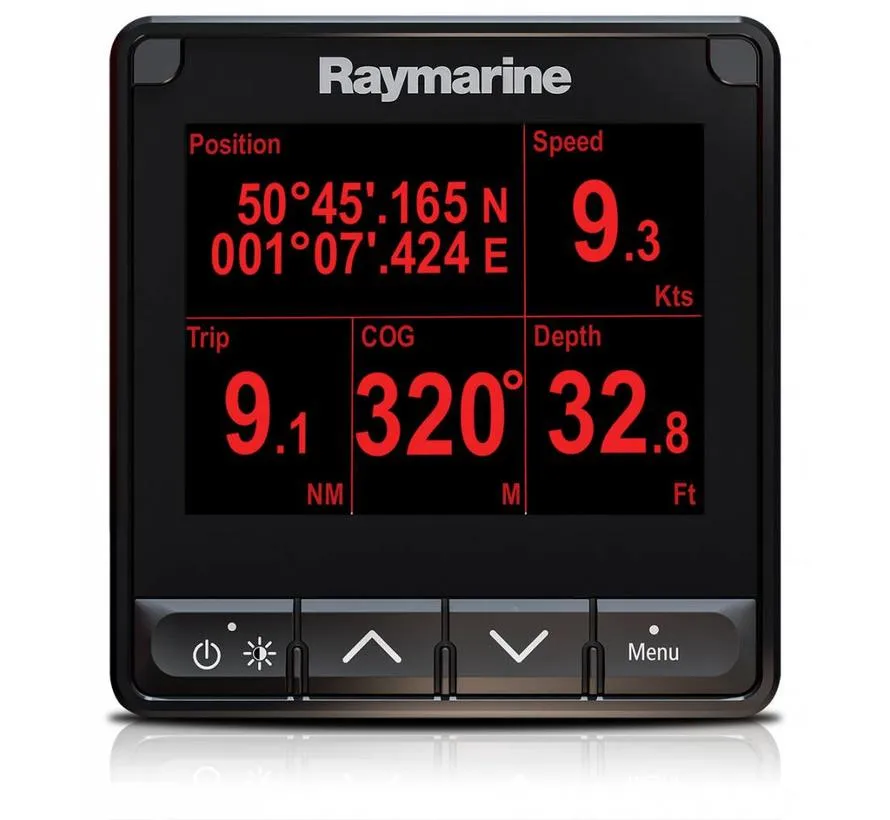

- GPS position
- Battery voltage
Display
- Screen size: 4.1 inches
- TFT LCD
- Resolution: 320 × 240 pixels
- Brightness: 1200 cd/m²
- 16-bit colour
- Up to 64,000 colours
- Large characters up to approx. 43 mm
Networking
- 1 × SeaTalkNG connection
- NMEA 2000 compatible
- No direct NMEA 0183 connection

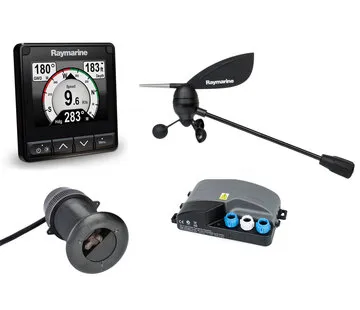

Transducer integration
Analog transducers can be connected through a Raymarine iTC-5.
Supported data types include:
- Depth
- Wind
- Speed
- Compass
- Rudder angle
The i70s can also use suitable networked smart transducers such as the DST800 and P79S.
Power
- Nominal voltage: 12 V DC
- Operating range: 9–16 V DC
- Protected up to 32 V DC
- Current draw: approx. 143 mA
- Power consumption: approx. 1.7 W
- NMEA 2000 LEN: 3
Environmental
- IPX6 / IPX7
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
Package contents
- Raymarine i70s display
- Black bezel
- Alternative gunmetal bezel
- Suncover
- 400 mm SeaTalkNG spur cable
- Panel gasket
- Ferrite
- Mounting screws
- Documentation
