The Raymarine i70s Depth, Speed & Wind Pack is a complete marine instrument system for measuring and displaying depth, boat speed, water temperature, wind speed and wind direction.

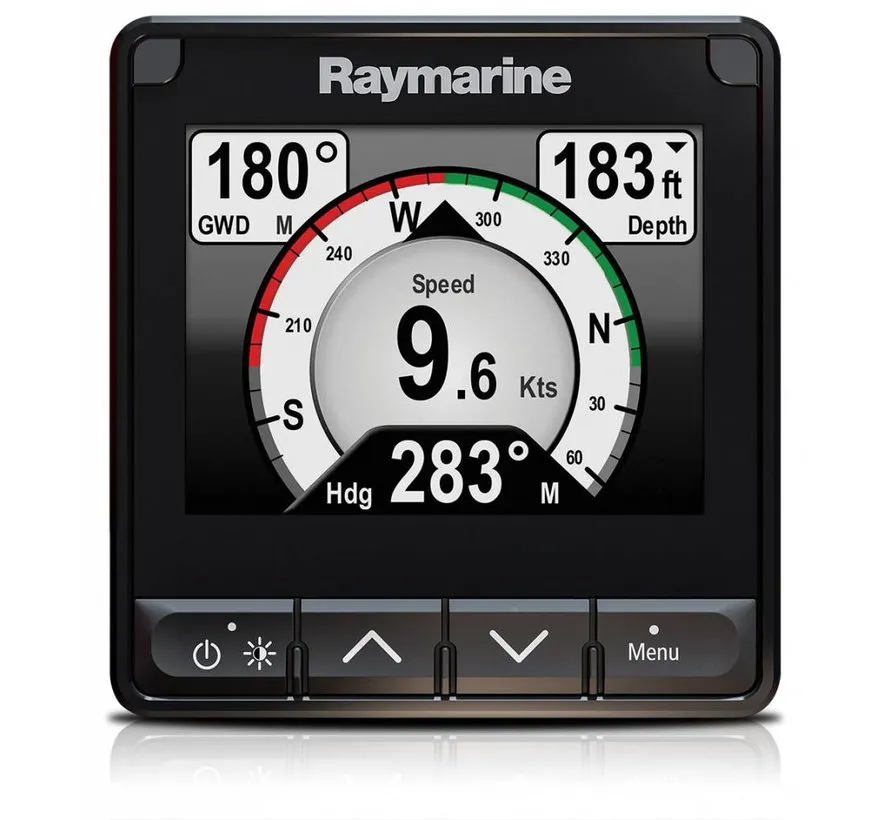

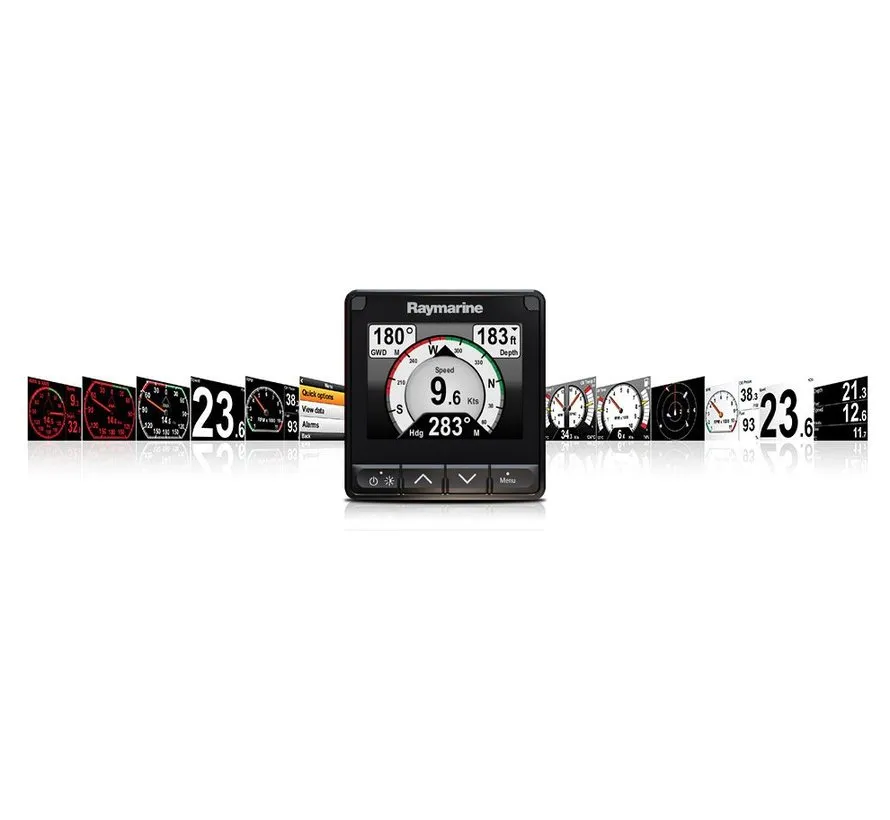

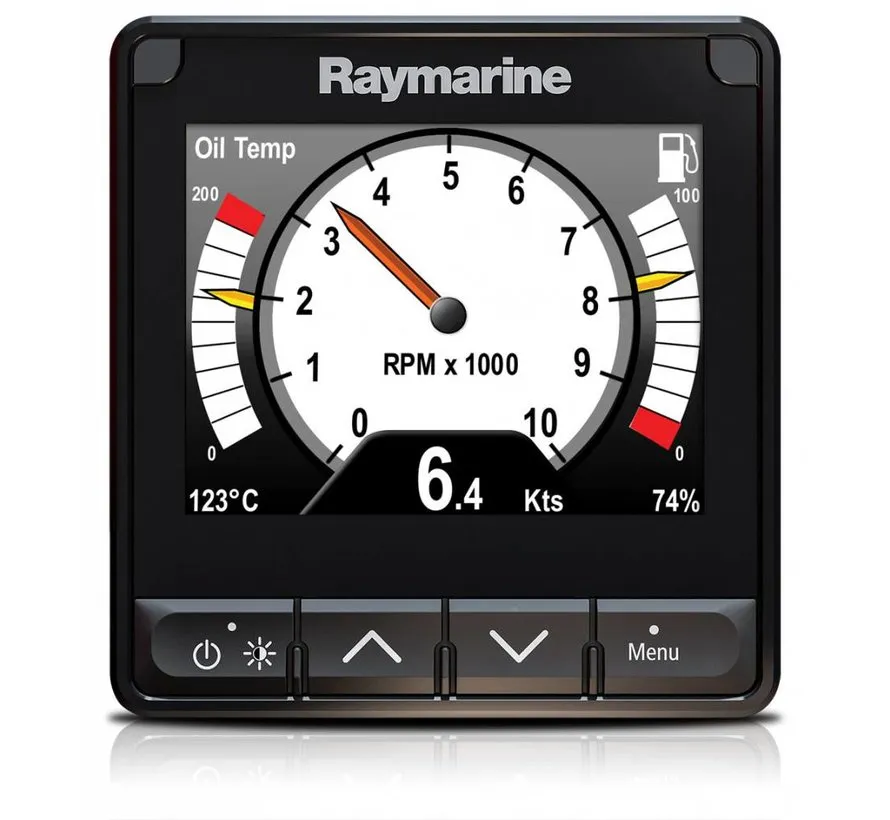

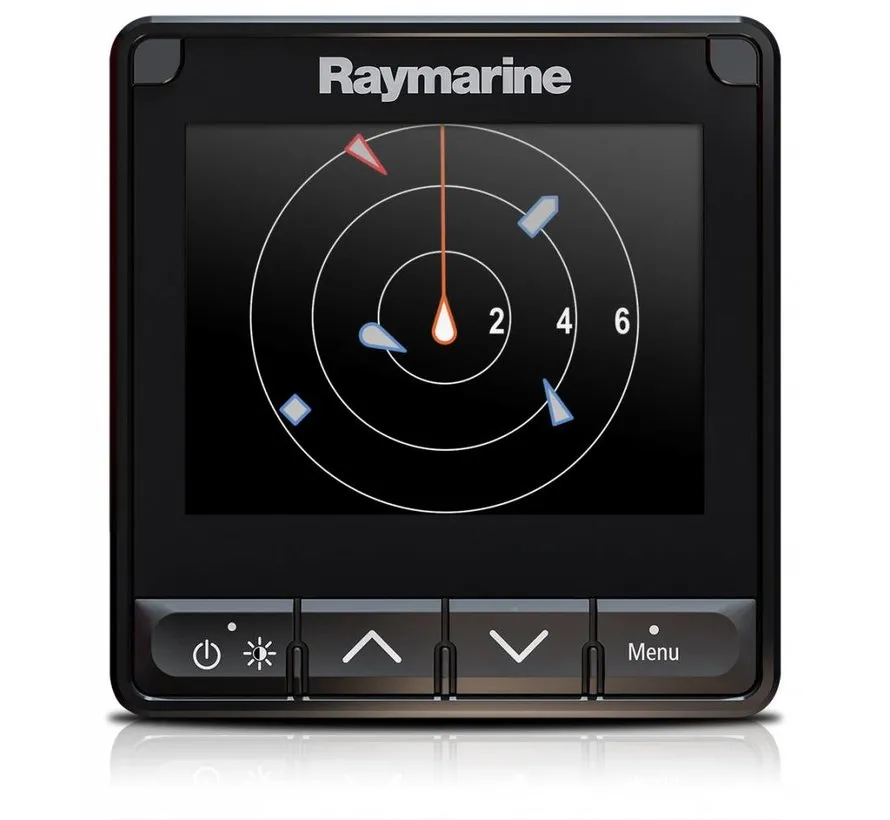

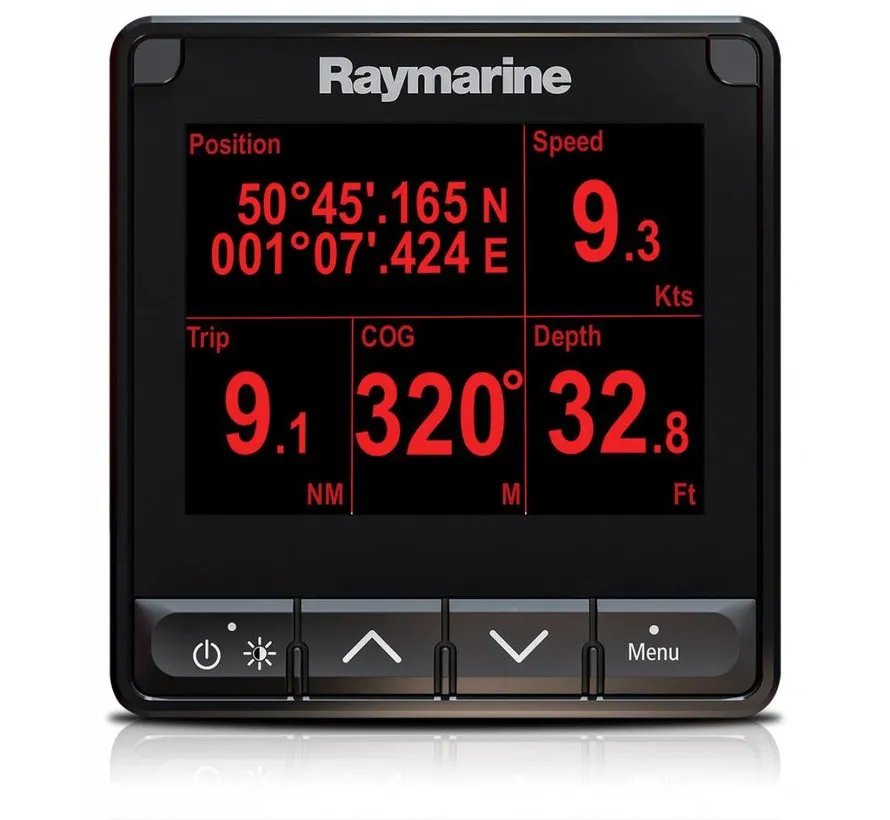

i70s display
- 4.1-inch TFT colour display
- Resolution: 320 × 240 pixels
- Brightness: 1200 cd/m²
- 64,000 colours
- SeaTalkNG
- NMEA 2000 compatible
DST800 transducer
The included DST800 provides:
- Depth
- Speed through water
- Water temperature
Specifications:
- Through-hull installation
- 200 kHz depth frequency
- Connected through the iTC-5 converter
Wind transducer
The included Short Arm Wind Transducer measures:
- Wind speed
- Wind direction
iTC-5 converter
The iTC-5 converts analogue transducer data to SeaTalkNG/NMEA 2000 network data.
It supports suitable sensors for:
- Wind
- Depth
- Speed
- Temperature
- Rudder
- Compass
Power
- Nominal voltage: 12 V DC
- i70s operating range: 9–16 V DC
- i70s power consumption: approx. 1.7 W
- Current draw: approx. 143 mA
- NMEA 2000 LEN: 3
Environmental
- IPX6 / IPX7
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -30 °C to +70 °C

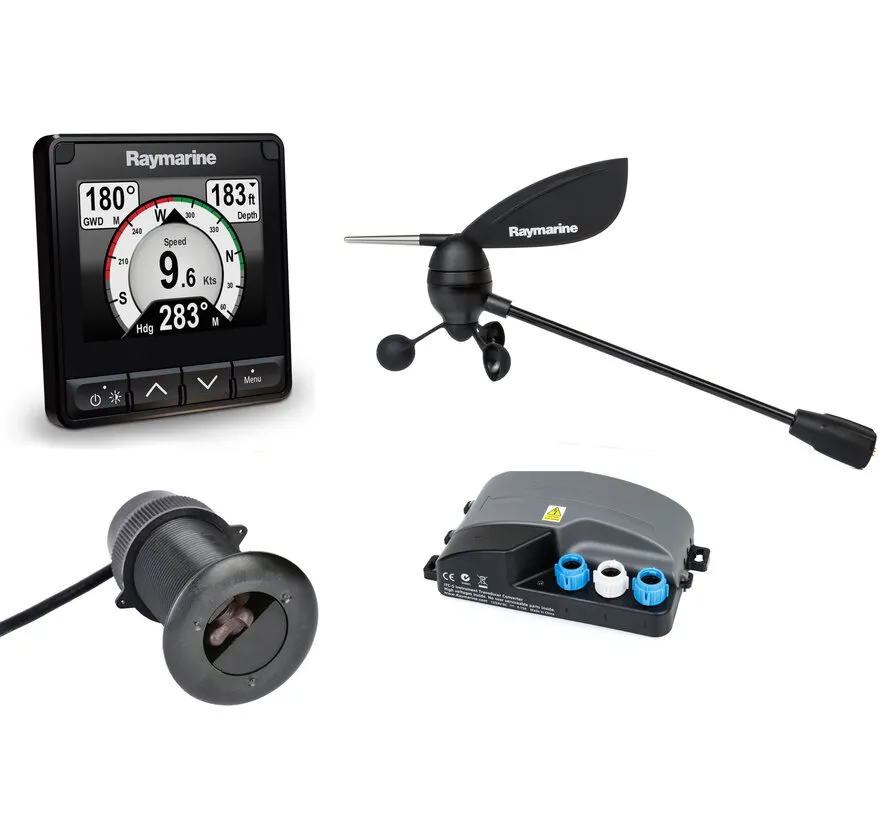

Package contents
- Raymarine i70s multifunction colour display
- DST800 depth/speed/temperature transducer
- Short Arm Wind Transducer
- iTC-5 transducer converter
- 3 m SeaTalkNG backbone cable
- SeaTalkNG 5-way connector
- SeaTalkNG power cable
- Backbone terminator
- Blanking plug
- Mounting hardware
- Documentation
Important
- Complete depth, speed and wind instrument pack.
- DST800 is a through-hull transducer.
- Additional SeaTalkNG cabling may be required depending on installation.
- Chartplotter and AIS transceiver are not included.
