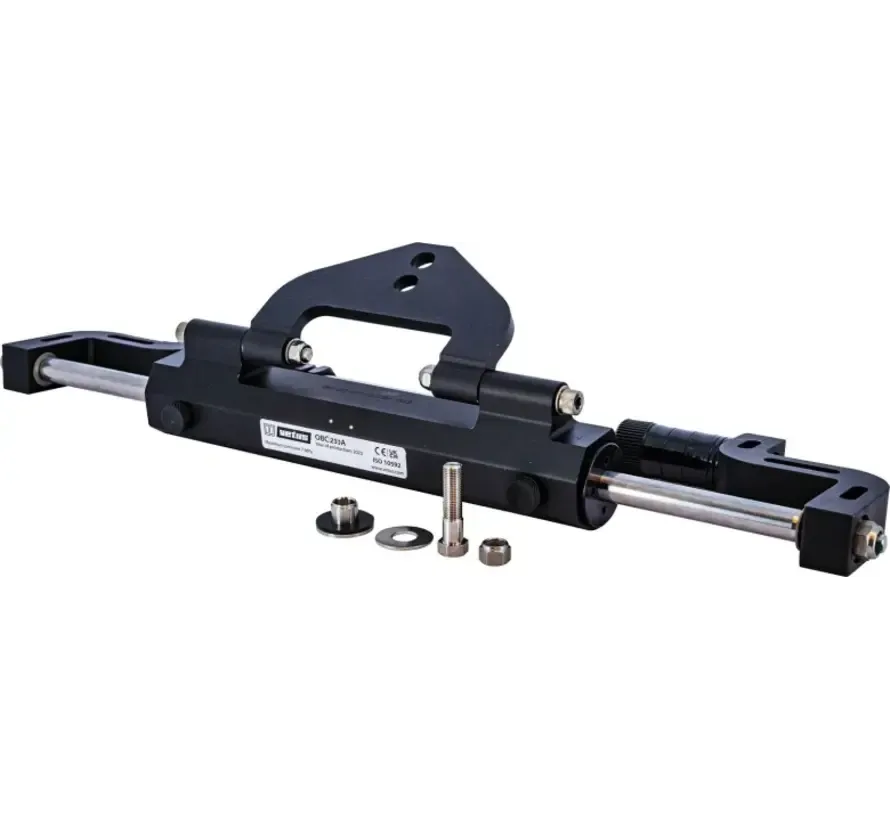

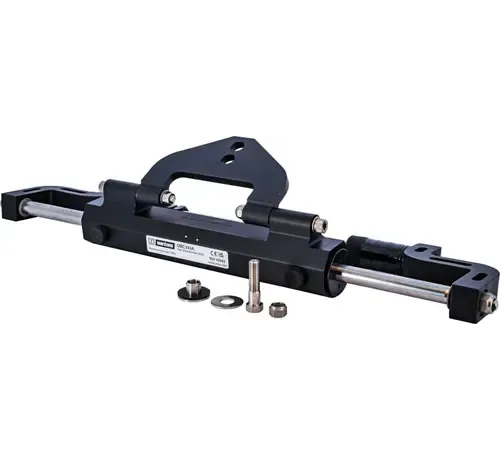

The Vetus OBC250A is a hydraulic steering cylinder for outboard engines and Z-drives. This version is designed for engine outputs up to 250 hp and is intended for installations where smooth and direct steering response is important. The cylinder uses a balanced design, so the number of steering wheel turns to port and starboard remains the same. The use of AISI 316L stainless steel and aluminium components makes it well suited to marine conditions.
Specifications:
- hydraulic steering cylinder
- suitable for outboard engines and Z-drives
- for engine power up to 250 hp
- type: balanced cylinder
- material: AISI 316L stainless steel and aluminium components
- stroke: 203 mm
- cylinder capacity: 122 cc
- maximum working pressure: 70 bar
- weight: 3.7 kg
- connection: combined 10 mm T-fitting with bleed point
- suitable for single and twin engine installations
- product code: OBC250A
