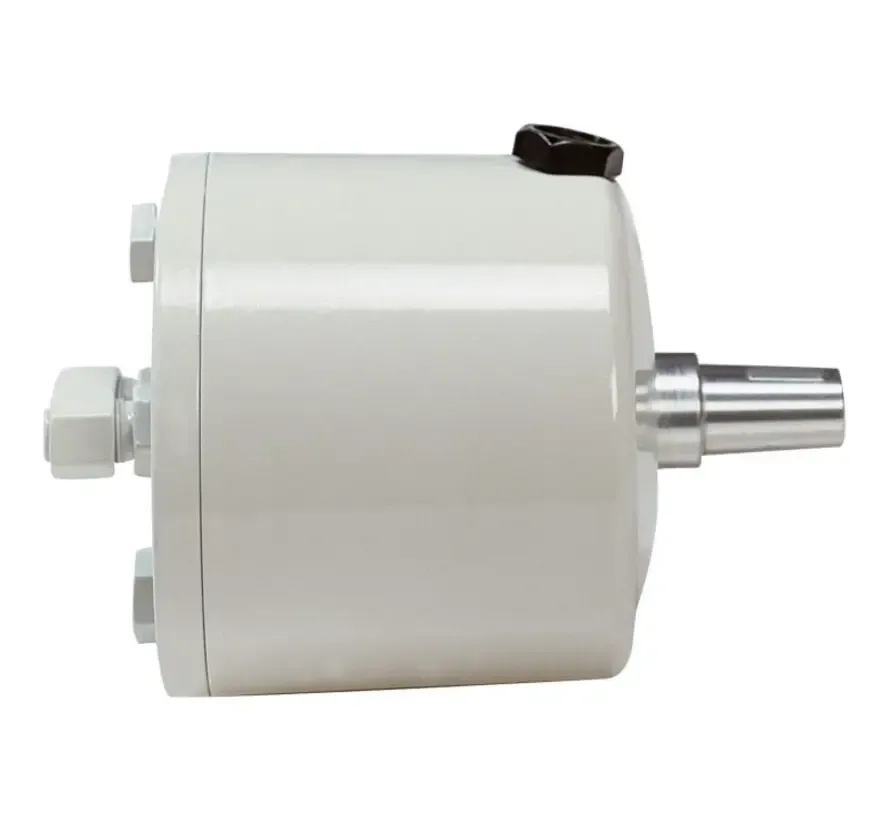

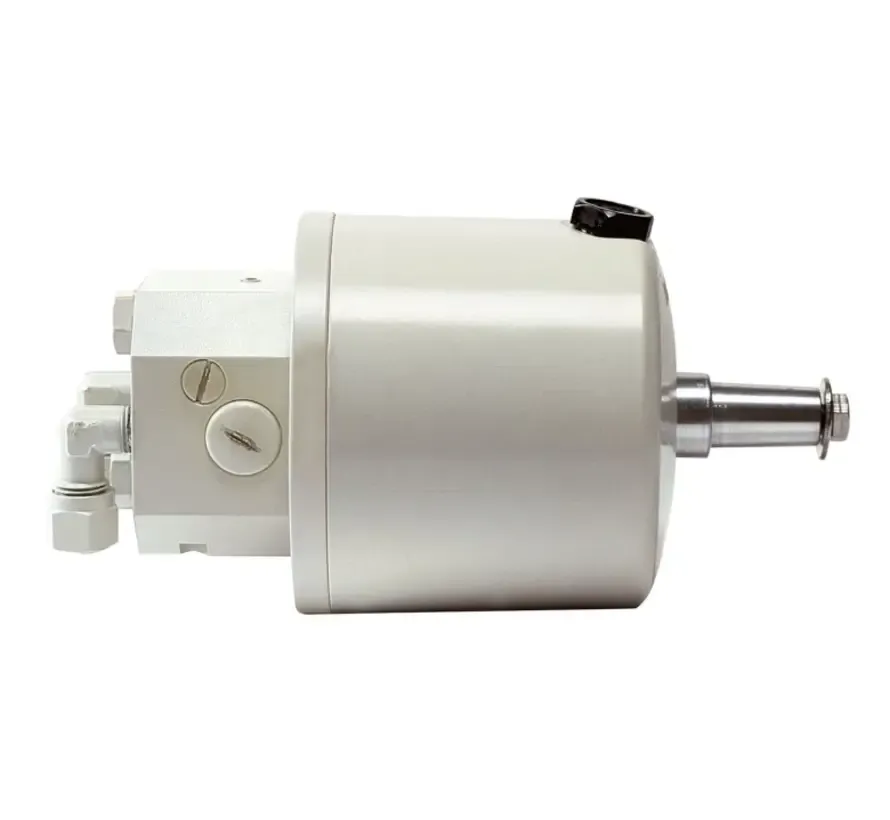

Vetus HTP42 steering pump with/without check valve
A compact steering pump that can be mounted horizontally or vertically in any position. With built-in check valves and pressure relief protection.
The Vetus HTP4210R is a compact white hydraulic steering pump for systems with 10 mm tubing. This model can be mounted and operated in almost any position, offering extra flexibility during installation. The pump is equipped with built-in check valves and maximum pressure relief protection, making this version suitable for applications where a pump with integrated valves is required. The HTP42 version features 7 plungers and a displacement of 42 cm³ per revolution. The maximum working pressure is 70 bar.
Suitable for dual steering or autopilot steering applications.
Specifications of the Vetus HTP42 steering pump:
- Compact model
- Suitable for 10 mm tubing (plastic or copper)
- Pressure relief protection
- Capacity: 42 cm³ per revolution
- Weight: 4.1 kg
- Max. steering wheel diameter: 53 cm
- Can be mounted horizontally or vertically in any position
