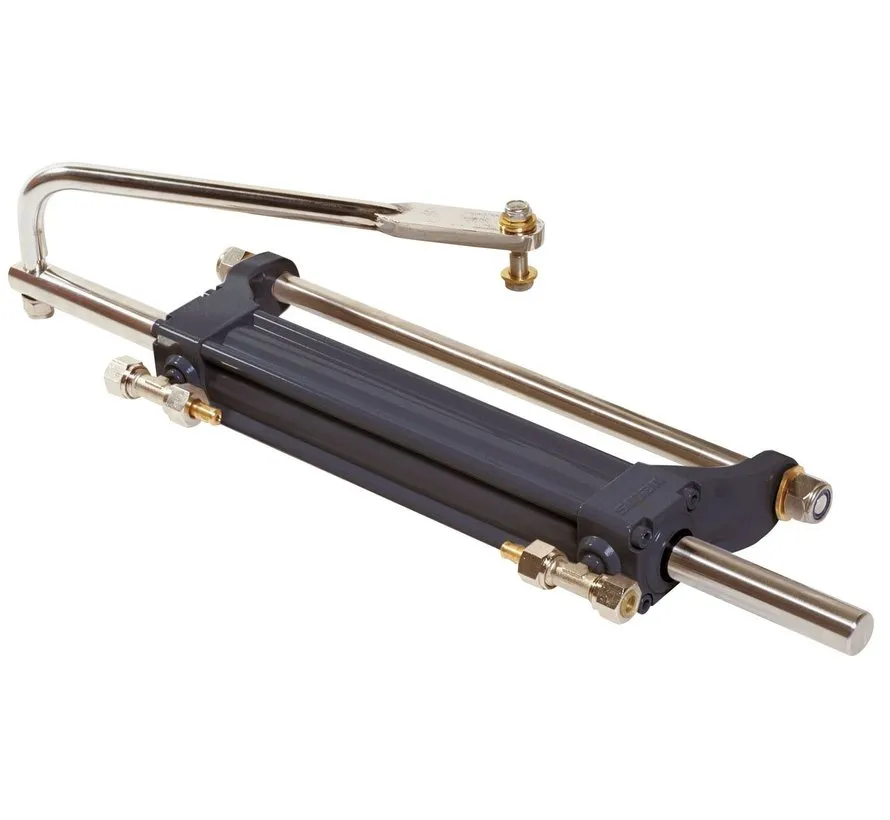

The Vetus OBC225 is a hydraulic steering cylinder for outboard engines and Z-drives. This version is intended for engines up to 225 hp and is designed for installations where strong and even steering response is required. The cylinder uses a balanced design and features a stainless steel piston rod, making it well suited to marine use.
Specifications:
- hydraulic steering cylinder
- suitable for outboard engines and Z-drives
- for engine power up to 225 hp
- type: balanced cylinder
- stroke: 197 mm
- cylinder capacity: 173 cm³
- working pressure: 70 bar
- connection: G 1/4 internal thread
- weight: 4.4 kg
- stainless steel piston rod
- recommended steering pumps: HTP3010R or HTP4210R
Handleiding/manual/handbuch Vetus cilinder voor buitenboordmotoren tot 225 pk.
