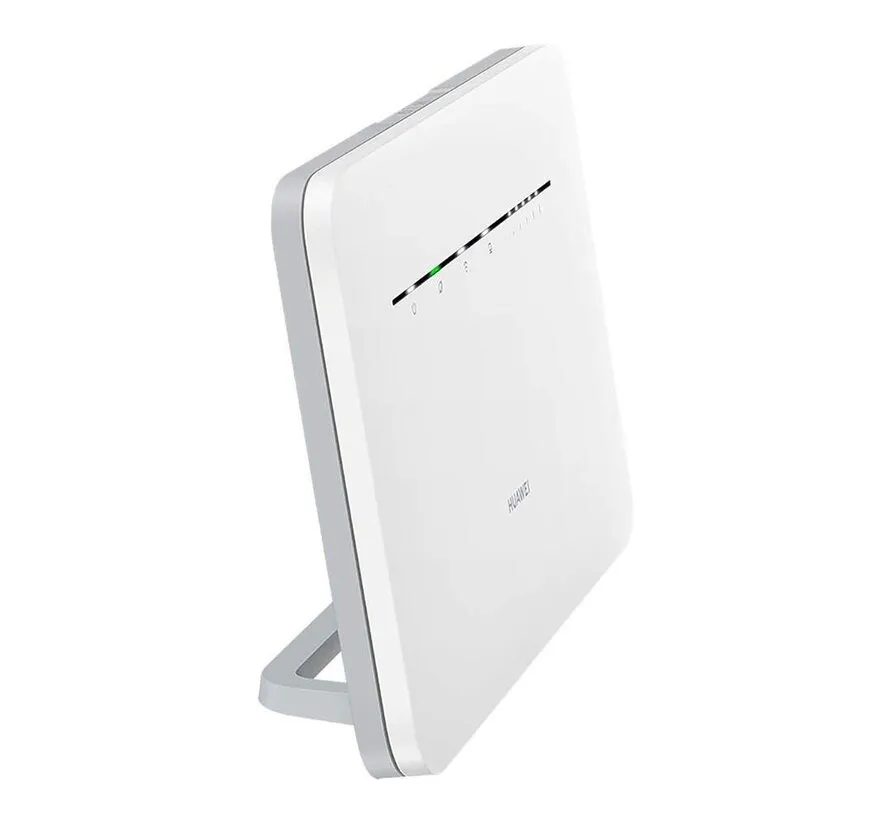

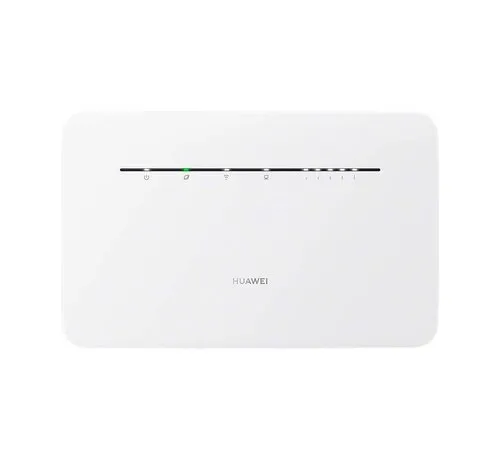

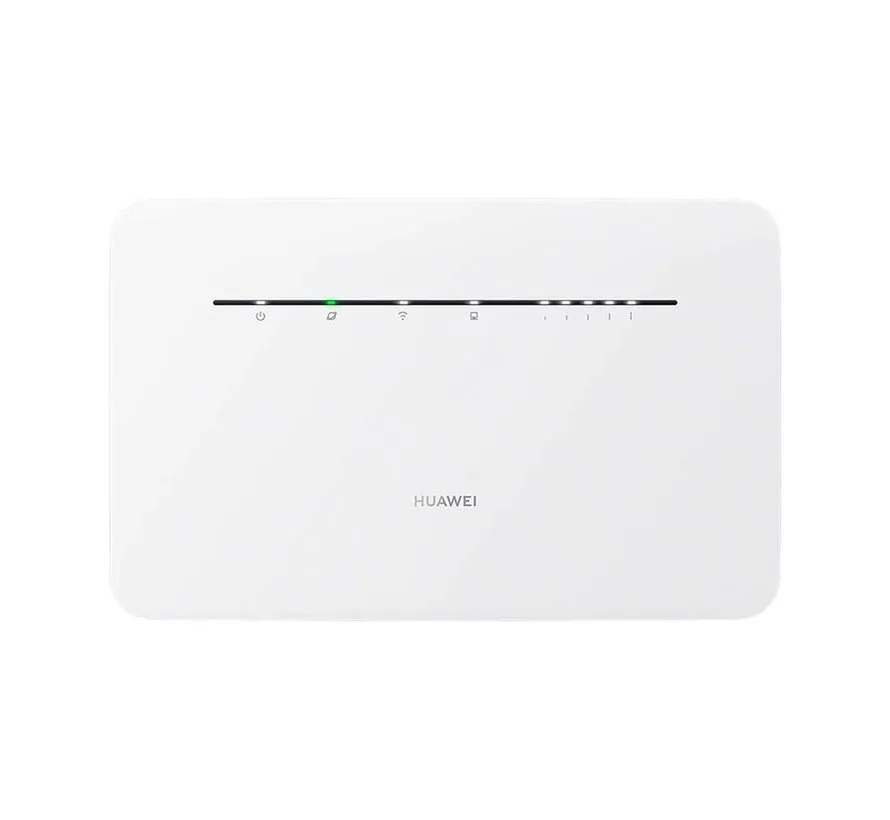

The Huawei B535-232A is a fixed 4G+ LTE router designed to provide internet access through a mobile network. Insert a suitable SIM card and share the mobile connection using dual-band WiFi or wired Ethernet.
The router supports LTE Advanced Cat 7 with download speeds of up to 300 Mbps and upload speeds of up to 100 Mbps. Wireless connectivity includes both 2.4 GHz and 5 GHz WiFi using WiFi 5 / IEEE 802.11ac.

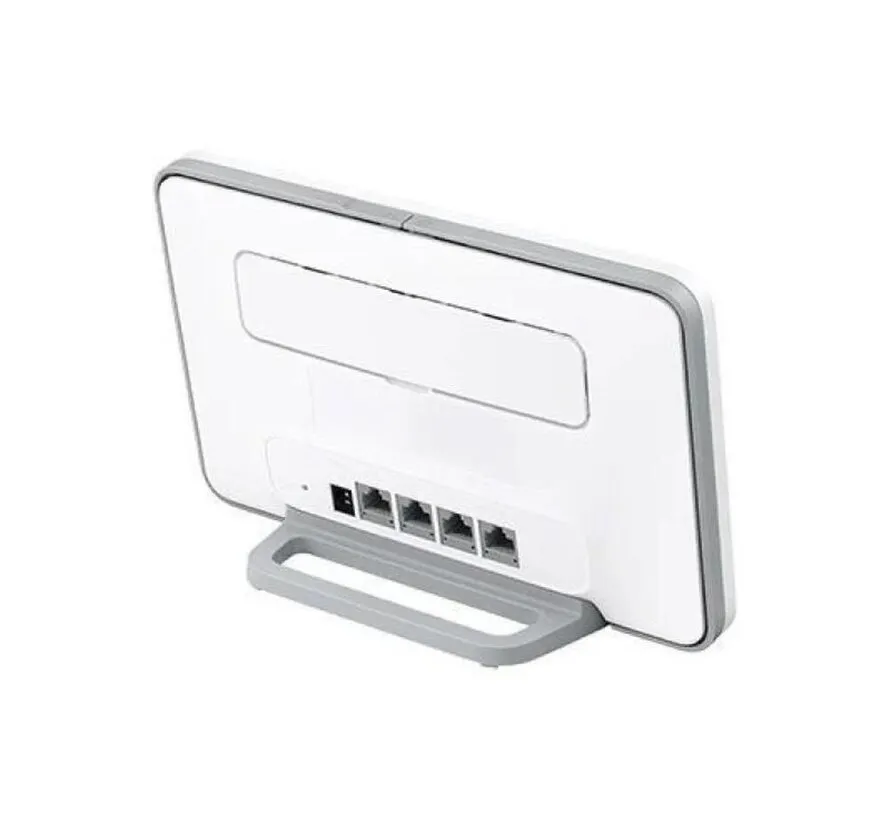

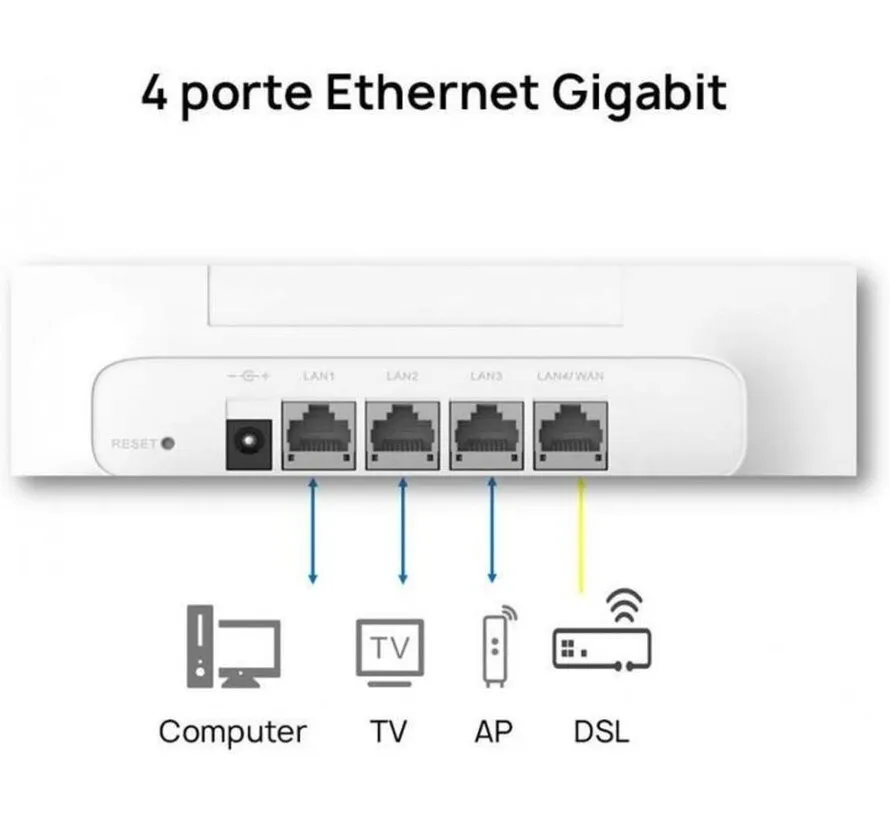

Four RJ45 network connections are available for wired equipment, with one port supporting LAN/WAN operation. Two SMA connectors allow optional external LTE antennas to be connected when additional signal performance is required.
Key features
- 4G+ LTE Advanced Cat 7
- Download speeds up to 300 Mbps
- Upload speeds up to 100 Mbps
- Dual-band 2.4 GHz and 5 GHz WiFi
- WiFi 5 / IEEE 802.11ac
- 2x2 MIMO
- Up to approximately 400 Mbps at 2.4 GHz
- Up to approximately 867 Mbps at 5 GHz
- Four RJ45 network ports
- One LAN/WAN port
- Two SMA external LTE antenna connectors
- SIM card slot
- VPN, firewall and MAC filtering
- Web interface and Huawei AI Life support
- Suitable for home, office, camper and temporary installations
Product specifications
- Product type: 4G+ LTE WiFi router
- Mobile technology: LTE Advanced Cat 7
- Maximum download speed: 300 Mbps
- Maximum upload speed: 100 Mbps
- WiFi standard: IEEE 802.11a/b/g/n/ac
- WiFi generation: WiFi 5
- WiFi frequencies: 2.4 GHz and 5 GHz
- 2.4 GHz WiFi: up to approximately 400 Mbps
- 5 GHz WiFi: up to approximately 867 Mbps
- LTE bands: B1, B3, B7, B8, B20, B28, B32 and B38
- UMTS bands: B1 and B8
- Network connections: 4x RJ45, including 1x LAN/WAN
- External antenna connections: 2x SMA for LTE
- SIM card: Nano-SIM
- VPN: VPN client, VPN pass-through, L2TP and PPTP
- Network functions: firewall, MAC filtering, Multi-APN, IPv4/IPv6 dual stack and IP pass-through
- Power adapter input: 100-240V AC, 50/60 Hz
- Router power supply: 12V DC / 1A
- Maximum power consumption: below 12 W
- Dimensions without stand: approx. 219 x 138 x 25.6 mm
- Dimensions with stand: approx. 219 x 138 x 60.7 mm
- Weight: approx. 330 g
- Colour: white
- Application: fixed mobile internet connection for home, office, camper or temporary installations
- Included: router, stand, power adapter, Ethernet cable and quick start guide
- Not included: SIM card, mobile data subscription and external LTE antennas
- Compatibility advice: check mobile network provider, supported frequency bands and required antenna connections before ordering
