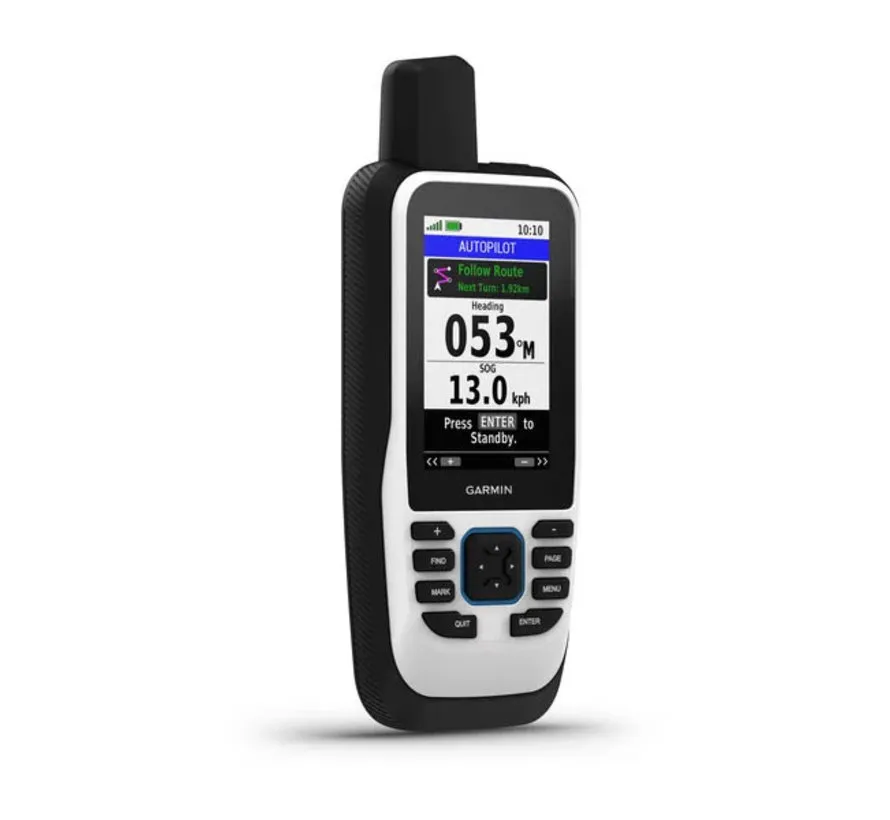

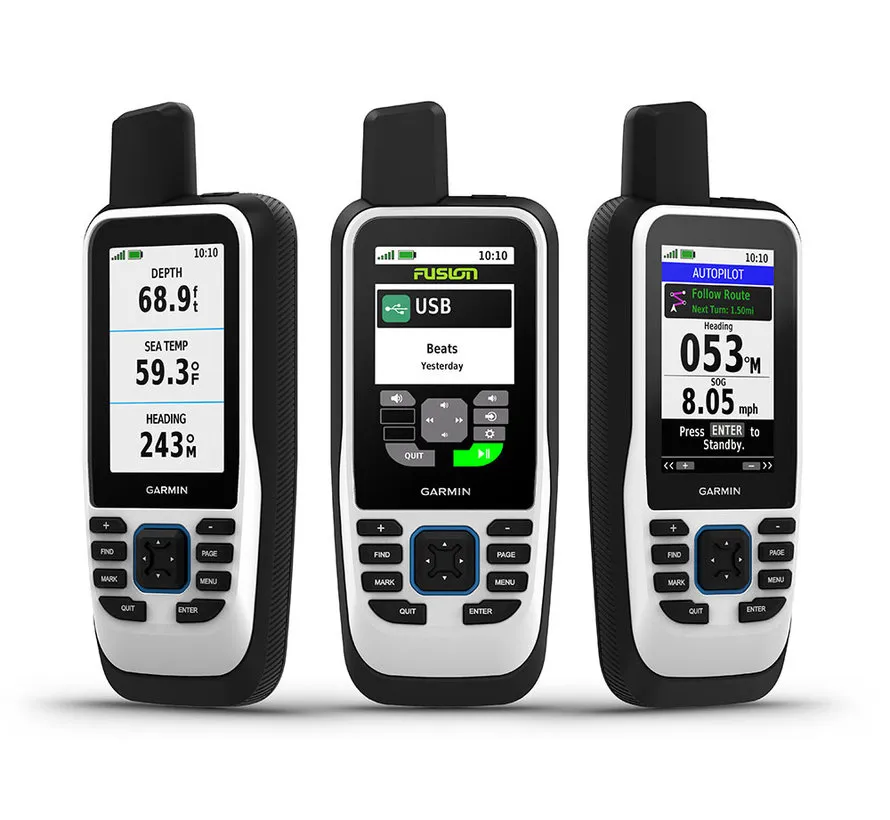

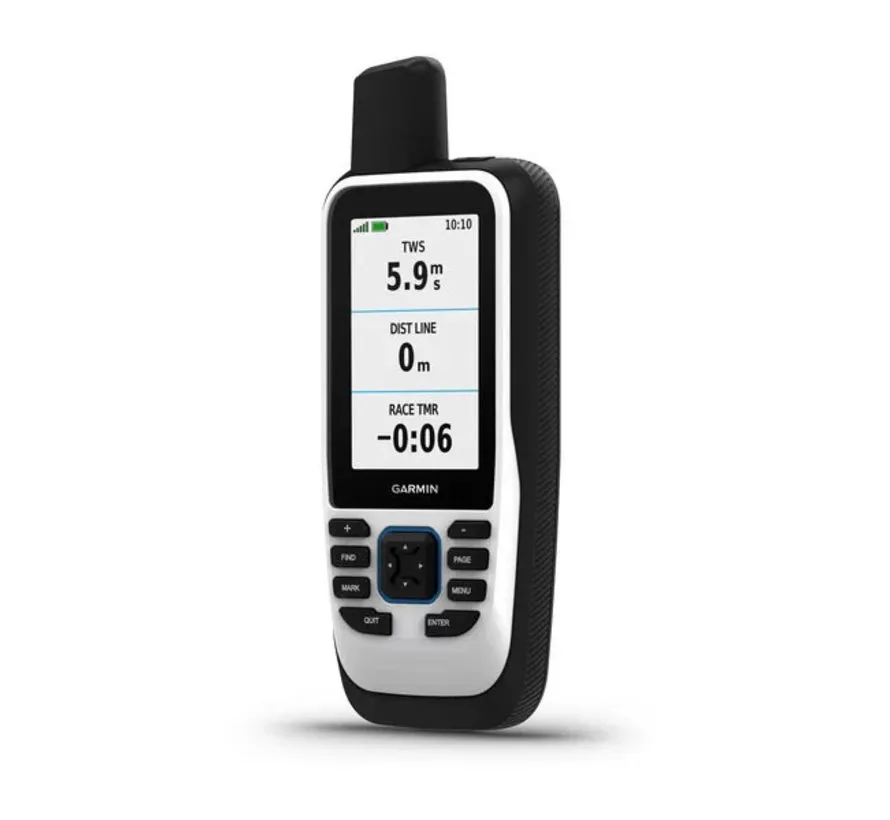

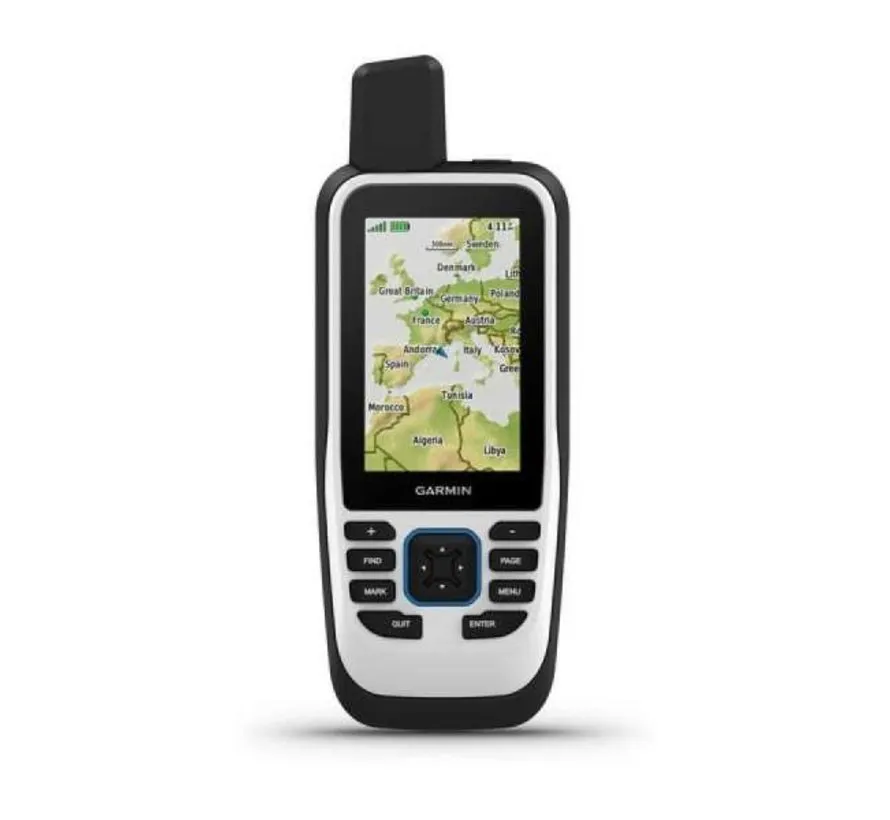

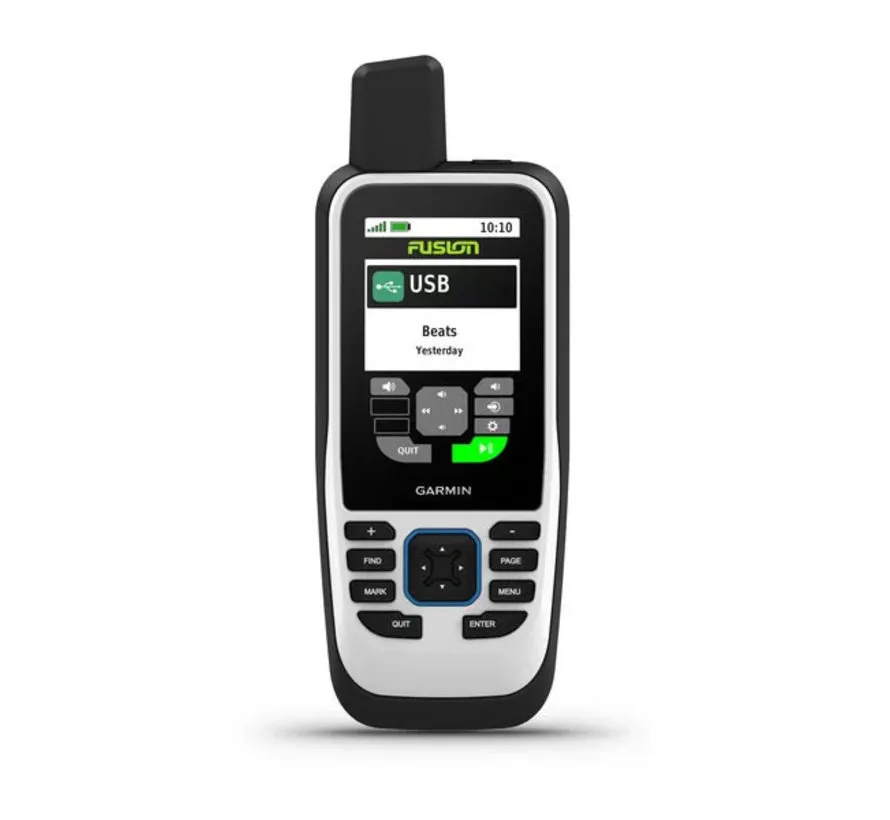

The Garmin GPSMAP 86s is a robust handheld GPS for boating, watersports, fishing and outdoor navigation. It is floatable, water-resistant to IPX7 and features a sunlight-readable 3-inch colour display. Garmin supplies the GPSMAP 86s with a worldwide basemap and support for optional BlueChart g3 coastal charts.
With Wi-Fi, Bluetooth and ANT+ connectivity, the GPSMAP 86s can connect wirelessly for updates and data sharing. When paired with compatible Garmin chartplotters and instruments, it can stream boat data directly to the handheld. The internal rechargeable lithium-ion battery provides up to 40 hours of use and up to 200 hours in expedition mode.
Key features
- Floating handheld GPS for marine use
- Preloaded worldwide basemap
- Supports optional BlueChart g3 charts
- 3-inch sunlight-readable colour display
- Water-resistant to IPX7
- Wireless connectivity via Wi-Fi, Bluetooth and ANT+
- Streams boat data from compatible Garmin systems
- Internal rechargeable lithium-ion battery
- Battery life up to 40 hours
- Up to 200 hours in expedition mode
- Built-in sensors such as barometric altimeter and 3-axis compass according to supplier specification
- Suitable as handheld navigation or backup GPS onboard
Product specifications
- Brand: Garmin
- Model: GPSMAP 86s
- Manufacturer reference: 010-02235-01
- Product type: handheld marine GPS
- Map: worldwide basemap
- Optional charts: BlueChart g3 coastal charts
- Display: 3-inch TFT colour display
- Display resolution according to supplier: 240 x 400 pixels
- Dimensions according to supplier: 6.75 x 17.8 x 4.4 cm
- Weight according to supplier: 272 g
- Battery: internal rechargeable lithium-ion
- Battery life: up to 40 hours
- Expedition mode: up to 200 hours
- Water rating: IPX7
- Memory according to supplier: 16 GB + microSD card slot
- Waypoints according to supplier: 10,000
- Routes according to supplier: 250
- Connectivity: Wi-Fi, Bluetooth, ANT+
- Sensors according to supplier: barometric altimeter, 3-axis electronic compass
- Application: boating, marine navigation, outdoor, fishing, backup navigation
- Not included: optional BlueChart g3 charts, mounting accessories or extra charging accessories
