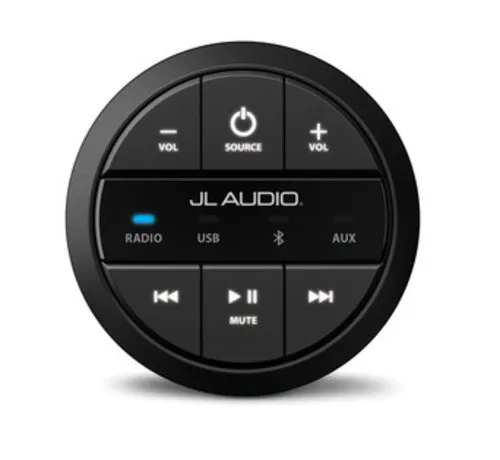

The JL Audio MMR-20-BE is a compact wired remote controller for compatible JL Audio MediaMaster source units.
Designed specifically for marine and off-road applications, the controller features an IP67-rated weather-resistant construction.
Large illuminated buttons provide direct access to frequently used MediaMaster functions without requiring access to the main source unit.
The MMR-20-BE does not have a display. LED indicators identify the selected source, while illumination brightness can be configured through the connected MediaMaster unit.
Its compact round design and single-hole installation make it particularly suitable for secondary helm stations, cockpits and flybridges where mounting space is limited.
Depending on the system configuration, up to three MMR-20 remote controllers can be connected to one MediaMaster source unit.
Key features
- Wired remote for JL Audio MediaMaster
- Designed for marine and off-road applications
- IP67 rated
- Compact round design
- Non-display controller
- Large illuminated controls
- LED source indicators
- Adjustable illumination brightness
- Supports up to 3 remotes per source unit
- Maximum connection distance approx. 22.8 m
- Simple single-hole installation
- Suitable for cockpit, helm and flybridge installation
Control functions
- Power on/off
- Source selection
- Volume up/down
- Track up/down for USB and Bluetooth
- Fast forward/rewind for USB
- Favourite station up/down for radio
- Play/pause for USB and Bluetooth
- Mute/unmute for radio and AUX
Compatibility
Suitable for compatible JL Audio MediaMaster source units supporting wired MMR remote controllers.
MMC connection cables are required and sold separately.
Suitable Y-splitters can be used to connect up to three remotes to one MediaMaster source unit.
Product specifications
- Product type: wired marine audio remote controller
- Design: round, non-display
- Ingress protection: IP67
- Controls: push buttons
- Illumination: backlit controls
- Source indication: LED
- Maximum distance from source unit: approx. 22.8 m
- Maximum mounting panel thickness: approx. 38 mm
- Mounting hole diameter: approx. 50 mm
- Width: approx. 60 mm
- Height: approx. 60 mm
- Front depth: approx. 15 mm
- Rear installation depth: approx. 29 mm plus additional space for bracket and cable
- Colour: black
- Application: marine audio, boats, yachts, off-road vehicles and secondary control positions
- Included: MMR-20-BE remote, gasket and mounting hardware
- Not included: MMC connection cable, Y-splitter or MediaMaster source unit
- Warranty: 2-year limited manufacturer warranty
- Compatibility advice: check MediaMaster source unit compatibility and required MMC connection cable before ordering
- EAN: 0699440999212
