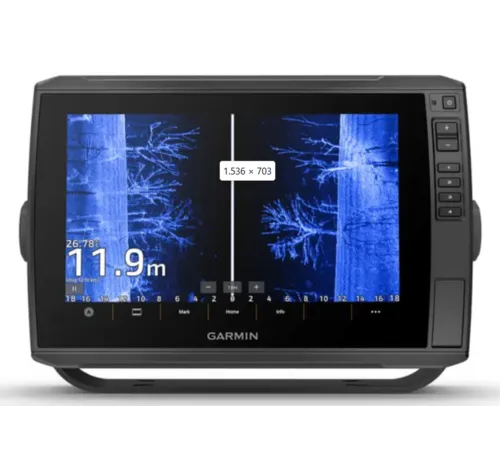

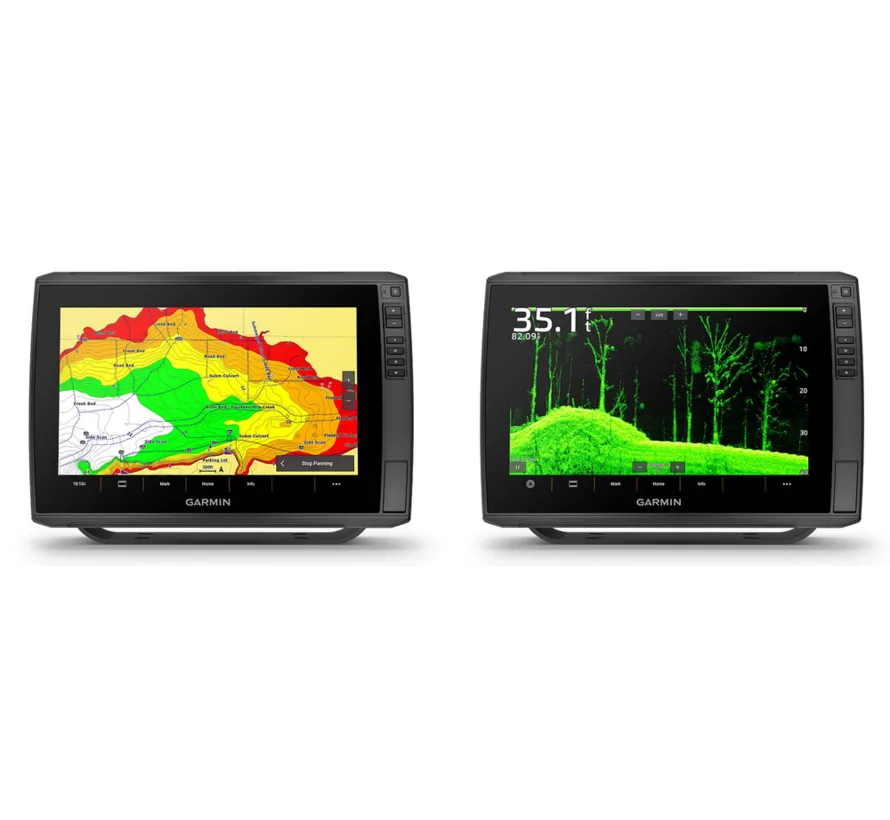

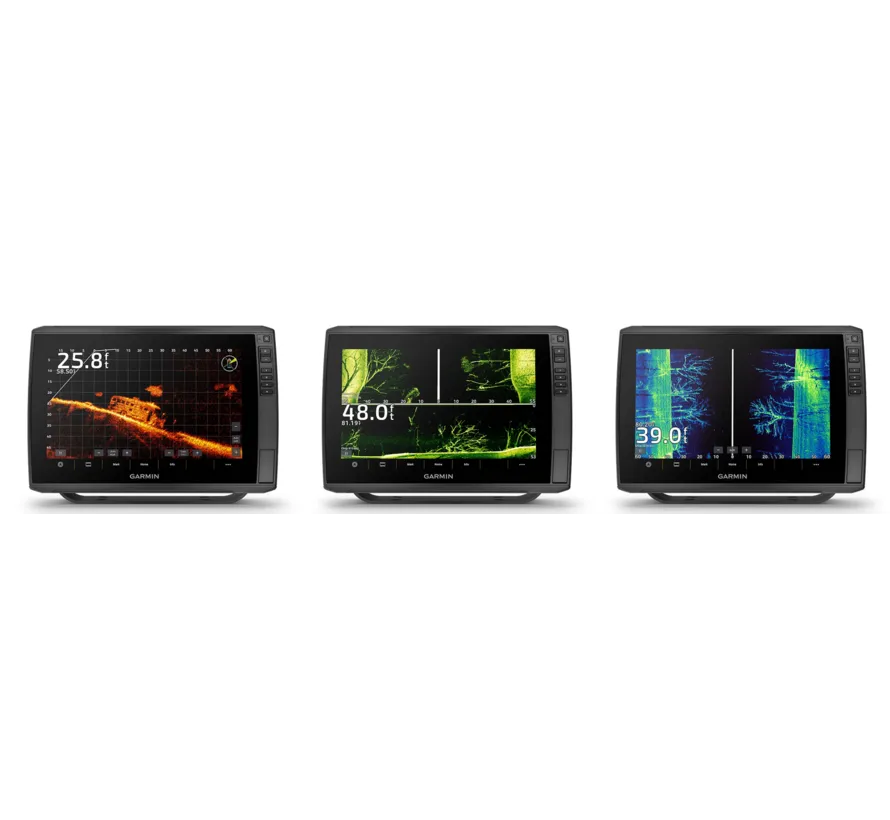

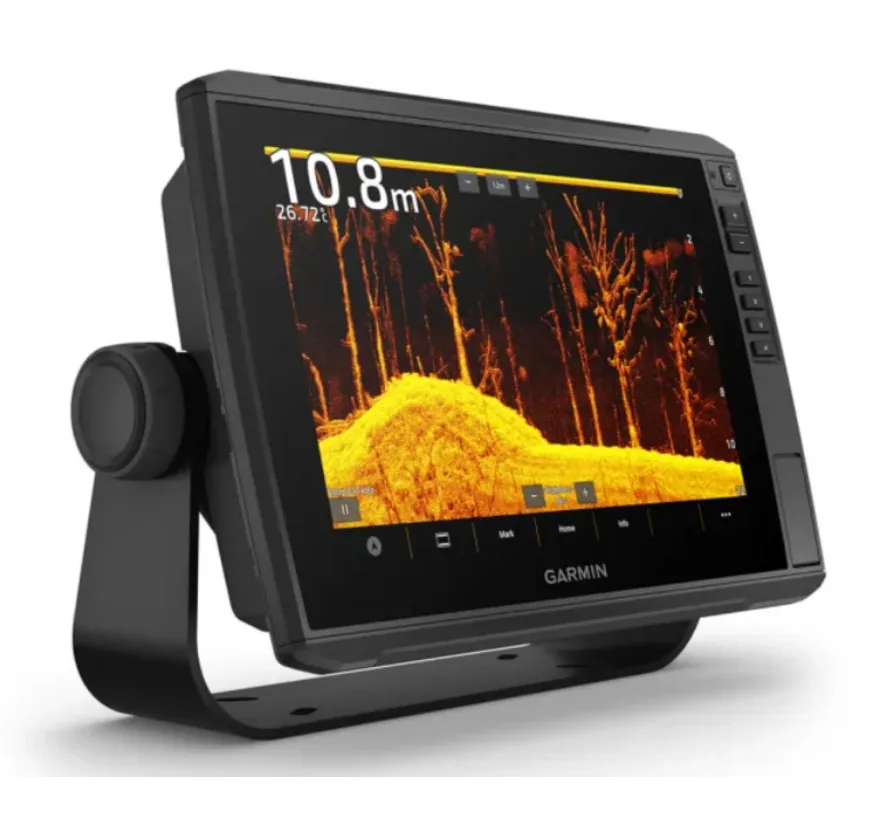

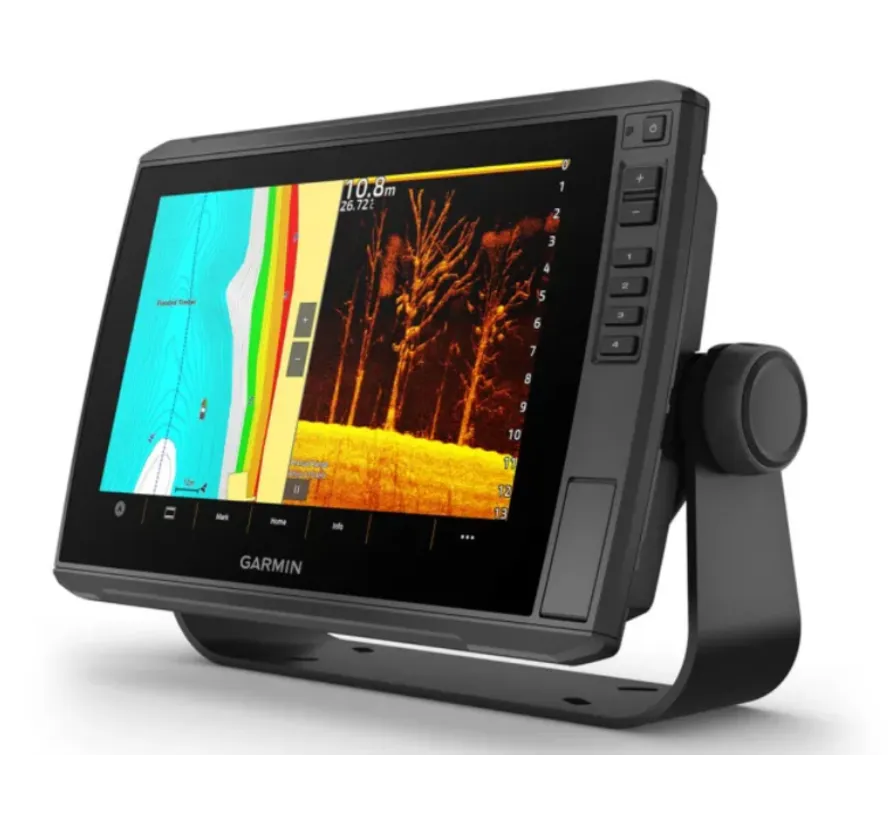

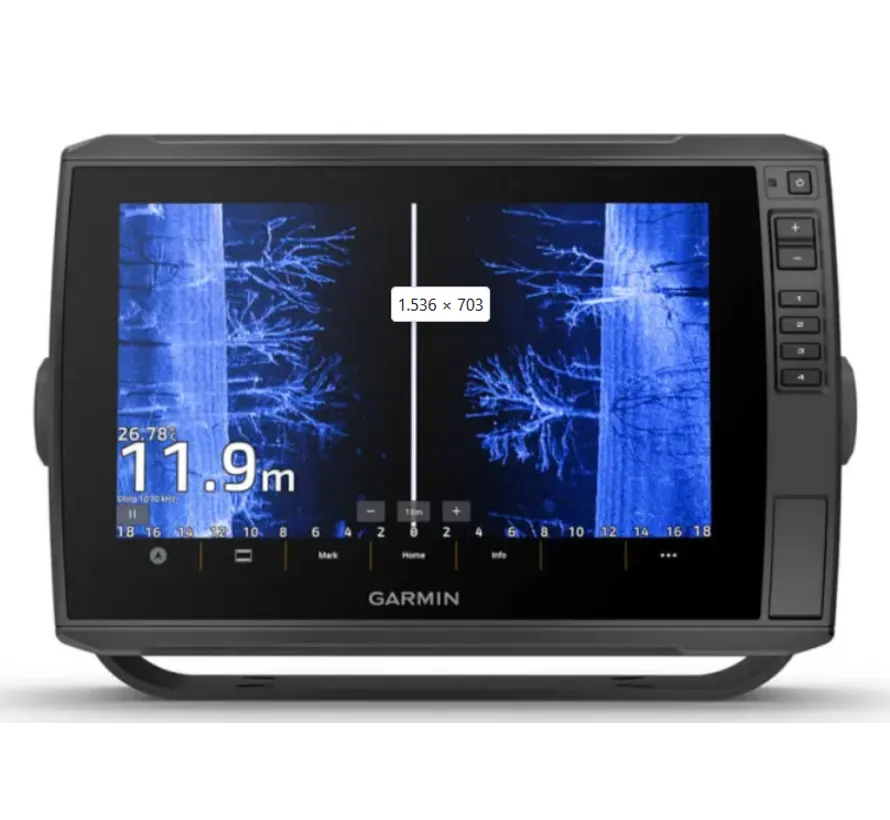

Garmin ECHOMAP Ultra 2 10" chartplotter with and without transducer has large, bright, sunlight-readable touchscreens and brings a world of possibilities for finding fish within reach.
They support Garmin Navionics+™ and Garmin Navionics Vision+™ maps, and the transducer bundle adds Ultra High-Definition scanning sonar and traditional CHIRP sonar with GT56UHD-TM transducer.
10" touchscreen
Support for LiveScope sonar
Support for Navionics+ and Navionics Vision maps
Wireless sharing of sonar, waypoints, and routes
Take screen shots to share your catch
Multiband GPS for improved position accuracy
NMEA2000 network
Specifications
General
Physical dimensions 29.5 x 19.5 x 9.8 cm (11.6″ x 7.7″ x 3.9″)
Weight 1.8 kg (4 lbs)
Water resistance IPX7
Touchscreen
Screen type WXGA, IPS
Screen size, WxH 21.7 x 13.6 cm; 21.7 cm diagonal (8.5″ x 5.4″; 10″ diagonal)
Screen resolution, WxH 1280 x 800 pixels

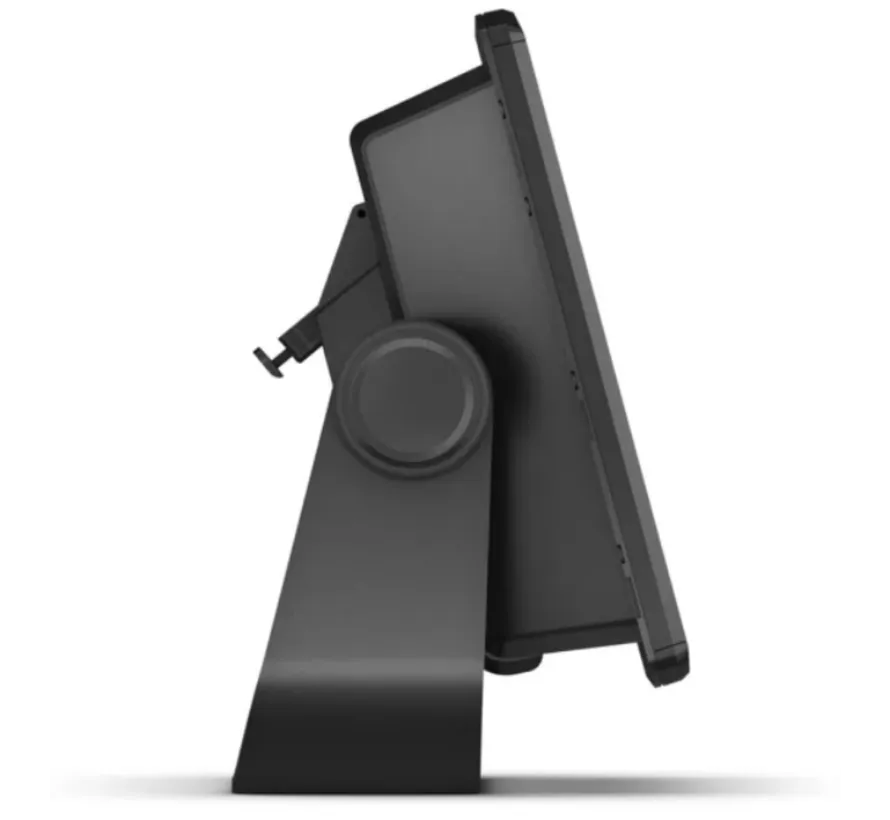

Mounting options Bracket or flush mount
Buttons with Keyed Assist Touchscreen with Keyed Assist
Maps and memory
Suitable for data cards 2 microSD cards
Waypoints 5000
Track points 50,000
Tracks 50 stored tracks
Routes 100
Sensors
GPS
GLONASS
Galileo
BeiDou
Has a built-in receiver
Receiver 10 Hz
Compatible with NMEA 2000®
Supports WAAS
Supports multi-band GPS for multiple satellites
Optional map support
BlueChart g3
BlueChart g3 Vision
Garmin Navionics+™
Garmin Navionics Vision+™
TOPO 100K
Standard maps
Garmin Quickdraw Contours
Chartplotter features
Support for AIS (tracks the position of the vessel)
Support for DSC (displays position data from a VHF radio with DSC)
Supports FUSION-Link™ compatible radios
Compatible with ActiveCaptain Yes
Sailing functions
Electrical
Input power 9 to 18 Vdc
Nominal current consumption at 12 Vdc 2.3 A
Maximum current consumption at 12 Vdc 5 A
Maximum power at 10 Vdc 34 W
Echo sounder features and specifications
Displays sonar
Output power 600 W
Traditional sonar (dual frequency/beam) built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP)
ClearVü Built-in 260/455/800/1000/1200 kHz
SideVü Built-in 260/455/800/1000/1200 kHz
Panoptix™ sonar
LiveScope

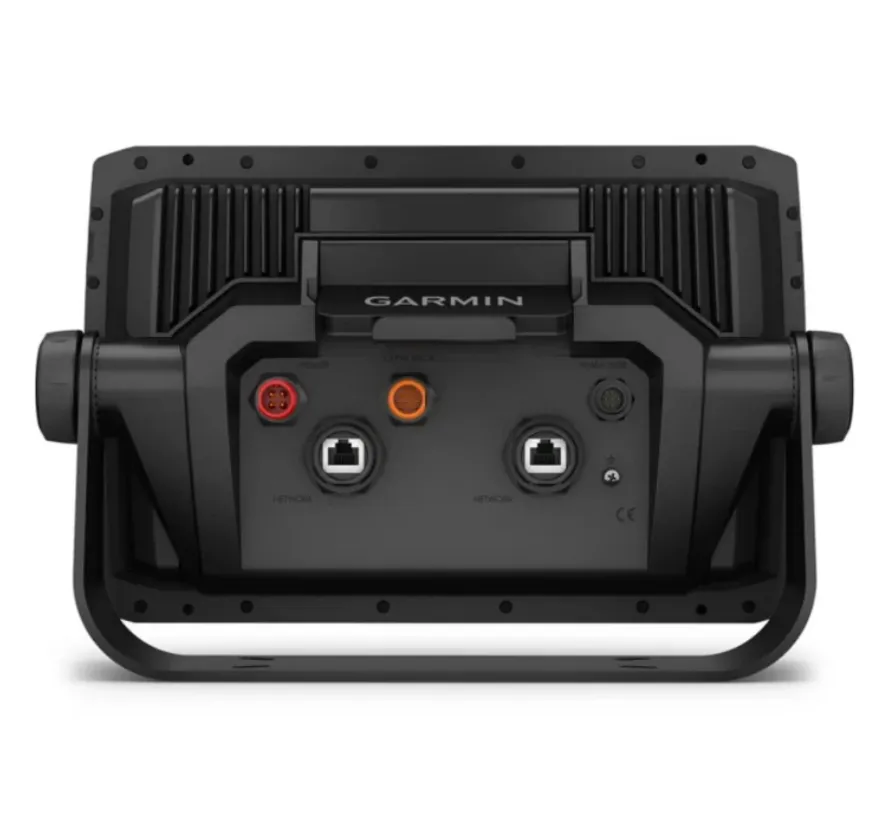

Connections
NMEA 2000® ports 1
Garmin Marine Network™ ports 2 (large connector)
12-pin transducer ports 12-pin scanning sonar
ANT® (Connectivity)
Garmin WiFi® network (local connection)
Compatible devices
AIS™ 600
AIS™ 800 Blackbox transceiver
LiveScope™ Plus only, LVS34 transducer
Compact Reactor™ 40 hydraulic autopilot with GHC™ 20 base package
Compact Reactor™ 40 hydraulic autopilot with GHC™ 50 and Shadow Drive™ technology package
Force® Kraken Trolling Motor
Force® Pro Trolling Motor
Force® Trolling Motor
Fusion Apollo™ MS-RA800 water sports stereo
GCV™ 20
GHP Compact Reactor™ 40 hydraulic autopilot, with GHC™ 20 and Shadow Drive™ package
GHP Compact Reactor™ 40 hydraulic autopilot, with GHC™ 50 instrument package
GLS™ 10 sonar module
GMI™ 20
LiveScope™ Plus system with GLS 10™ and LVS34 transducer
Livescope™ XR LVS62
Livescope™ XR system
Panoptix LiveScope Ice Fishing Kit
Panoptix LiveScope™ system
Panoptix LiveScope™ system
Panoptix™ PS22-TR
Panoptix™ PS30
Panoptix™ PS31
Panoptix™ PS51-TH
quatix® 7X - Solar edition
Reactor™ 40 Hydraulic Autopilot
Reactor™ 40 hydraulic corepack with SmartPump v2
Reactor™ 40 hydraulic autopilot
Reactor™ 40 Kicker autopilot
Reactor™ 40 Mechanical/Retrofit/Solenoid Core Pack
Reactor™ 40 Steer-by-Wire Standard Core Pack
Starter Kit for the Compact Reactor™ 40 Hydraulic Autopilot
VHF 115i Marine Radio
VHF 215i AIS Marine Radio
VHF 215i Marine Radio
VHF 315i Marine Radio
