Em-trak B952 5W AIS with WiFi & Bluetooth. Transponder (5W SOTMA) with integrated GPS and unique FLEXI-FIT bracket system. This AIS is robust - protected against vibrations, shocks, and extreme temperatures. Global certification - USCG, FCC, Canada, and Europe. Improved RF screening to protect against electromagnetic interference and built-in surge protection. The B921 has NMEA0183 and NMEA2000 connections.
Specifications Em-trak B952 5W AIS with WiFi & Bluetooth:
Dimensions 150 mm x 110 mm
Weight - 330 g
Power supply - 12-24V DC
Maximum power consumption - 2.05 W (170 mA at 12V)
Access scheme - SOTMA
Operating frequency range - 156 MHz to 163 MHz
AIS receiver sensitivity - -111dBm
AIS transmit power - 5 W (+ 37 dBm)
AIS standards - IEC62287-1 Ed 3
72 channels
GPS / Galileo + GLONASS or BEIDOU

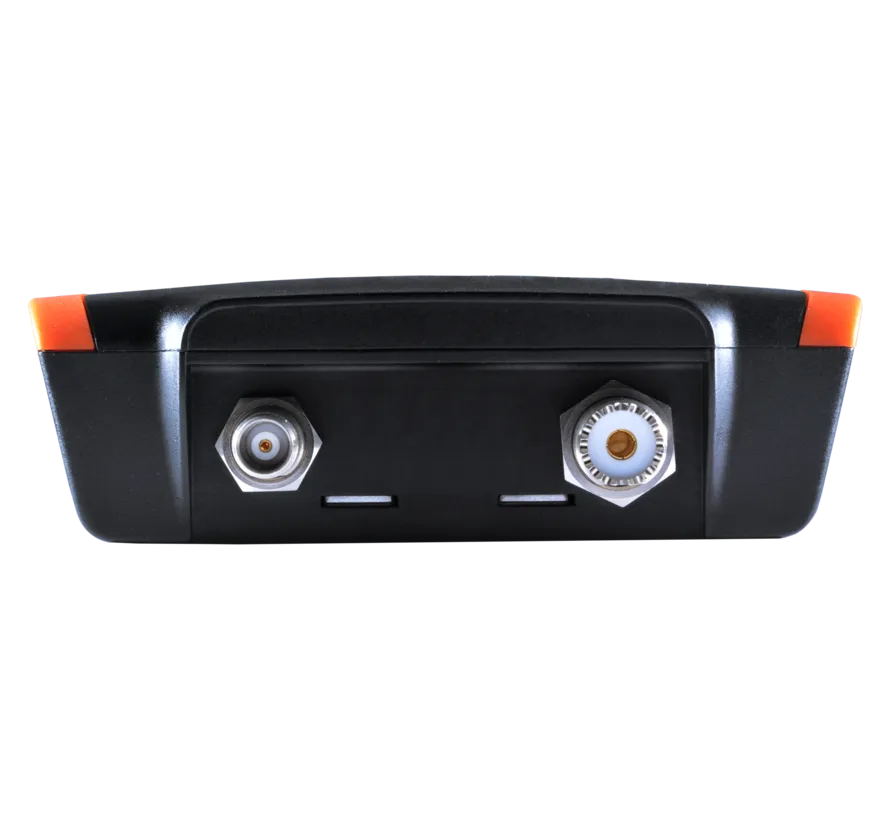

VHF antenna output - S0239
GPS antenna - TNC
NMEA2000 - Standard 5-way Micro-C connector
NMEA0183 - 12-way circular multipole
WiFi & Bluetooth
Micro USB
IPx6 & IPx7
Operating temperature - -25 °C to + 55 °C
