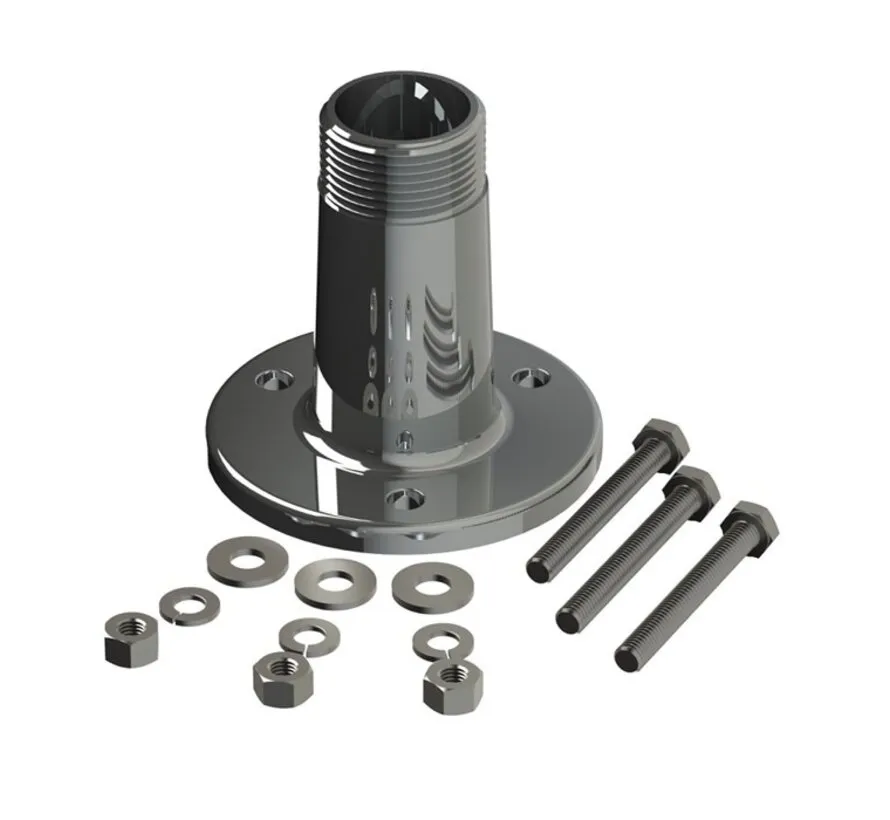

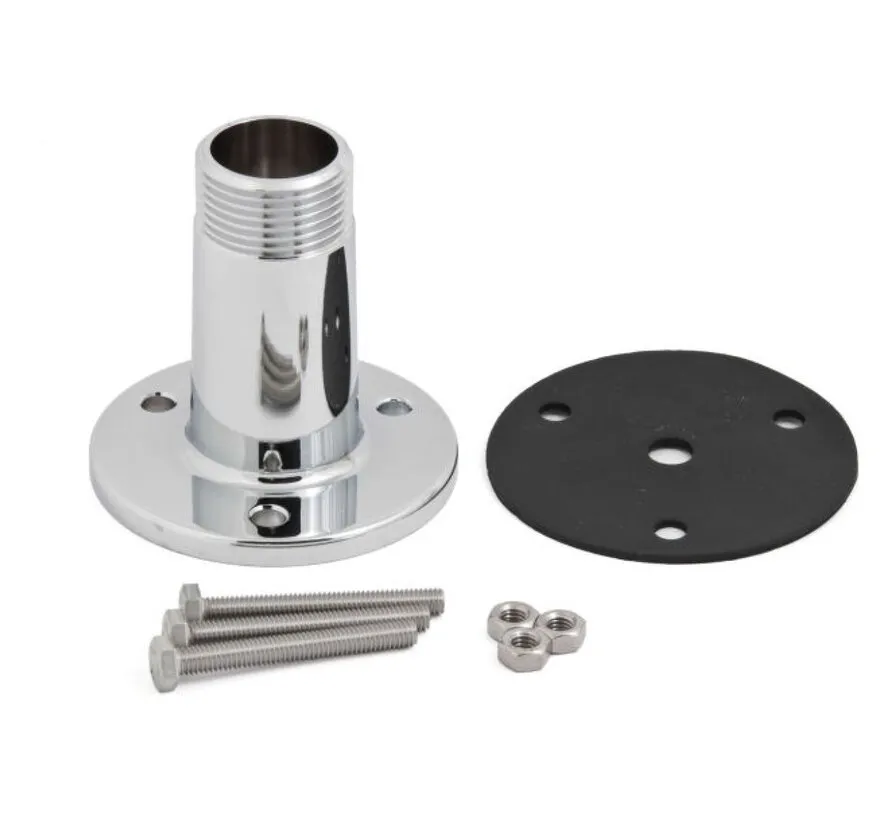

This AC Antennas deck mount is designed for neat and protected installation of a marine antenna where the coaxial cable is routed through the deck or bulkhead and remains protected inside the mount. That makes it suitable for installations where clean cable routing, proper sealing, and robust mechanical support are important. The mount is supplied as a complete kit with an EPDM rubber gasket and M6 x 50 mm bolts.
The E180F is made from chrome brass and is designed for marine environments to help reduce galvanic corrosion. According to the AC Antennas catalogue, it is a deck/wall mount with 1 1/4"-11 TPI male and 1"-14 TPI male threads. Market sources associate this mount with several AC Antennas ranges, including BB1, CELDual, CEL series, CELtwin, CX4, CX3 5/8, FAME 1/3, and NAVTEX3. That compatibility list comes from market sources; the official product page mainly describes the mount construction and intended use.
Product specifications
- Brand: AC Antennas
- Article code: E180F
- Manufacturer part no.: 900038-B
- Product type: deck mount / wall mount / deck gland
- Application: mounting marine antennas with protected cable feed-through
- Used for: antenna installations with coax routed through deck or bulkhead
- Material: chrome brass
- Seal: EPDM rubber gasket
- Fixings: M6 x 50 mm bolts included
- Max deck thickness: up to 36 mm
- Thread:
- 1 1/4"-11 TPI male
- 1"-14 TPI male
- Mounting position: deck / wall
- Weight: approx. 1.0 kg
- Feature: designed to reduce galvanic corrosion
- Compatibility:
- BB1
- CELDual
- CEL series
- CELtwin
- CX4
- CX3 5/8
- FAME 1/3
- NAVTEX3
