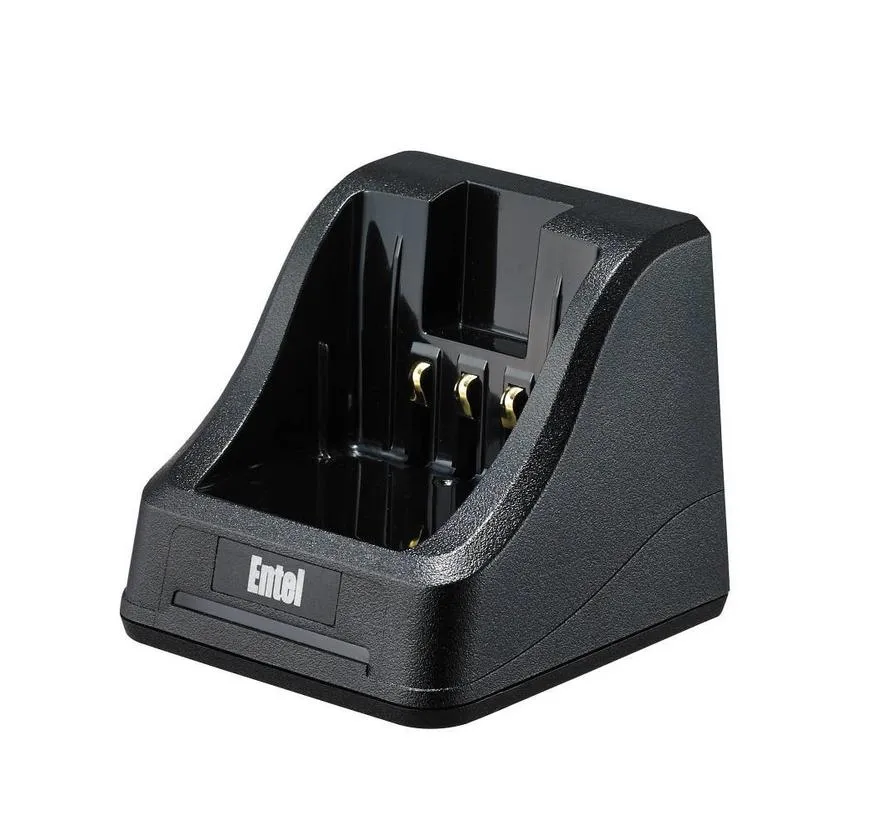

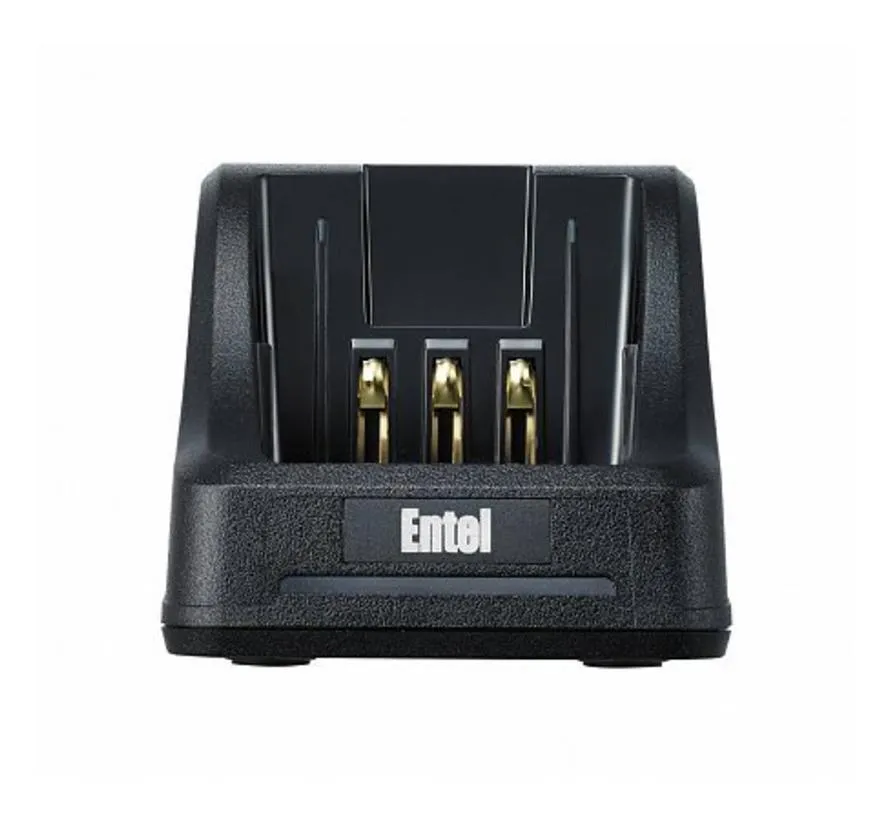

The Entel CSAHT is an intelligent single-pod rapid charger for compatible Entel HT series handheld radios and lithium-ion battery packs. The charger monitors the charging process and automatically switches to standby when charging is complete. The multicolour LED clearly indicates whether the battery is charging or fully charged.
The CSAHT is suitable for professional use in marine, industrial, security and service environments. The charging pod can be placed on a desk or workbench and is also suitable for wall or bulkhead mounting according to Entel. For 12V vehicle charging, CCAHT-12 is the separate version; the CSAHT is the mains-powered rapid charger version.
Key features
- Genuine Entel intelligent rapid charger
- For Entel lithium-ion battery packs
- Suitable for Entel HT series radios
- Single charging pod for one battery or radio
- Universal mains input: 100-240 V AC
- Charge time: approx. 3 hours, depending on battery capacity
- Automatic standby after full charge
- Multicolour LED charge status indication
- Suitable for flat-surface placement
- Suitable for wall or bulkhead mounting
- Use only with suitable Entel Li-ion batteries
- Do not confuse with CCAHT trickle charger or CCAHT-12 vehicle version
Product specifications
- Brand: Entel
- Article code: CSAHT
- Product type: intelligent rapid charger
- Version: single pod charger
- Suitable for: Entel HT series radios and compatible Li-ion battery packs
- Battery technology: lithium-ion
- Mains adapter input: 100-240 V AC, 50/60 Hz
- Mains adapter output: 12 V DC, 1000 mA
- Charging pod input: 11.5-12.5 V DC, 1000 mA
- Charging pod output: 8.9 V DC, 970 mA
- Charge status: multicolour LED
- Red LED: charging
- Green LED: charged / ready
- Fault indication: flashing amber/red in case of battery fault according to Entel guide
- Charge time: approx. 3 hours for a fully discharged CNB series battery, depending on capacity
- Compatible batteries according to Entel guide:
- CNB750E
- CNB751E
- CNB550E
- CNB950E
- CNB550EV2
- CNB950EV2
- Charging pod dimensions: 75 x 84 x 80 mm
- Charging pod weight: 120 g
- Mains adapter weight: 80 g
- Operating temperature: -20 °C to +55 °C
- Mounting: desk, wall or bulkhead mounting
- Mains adapter versions listed: CWCEA, CWCED, CWCEE, CWCES depending on plug type/region
- Application: charging Entel HT series radio batteries
