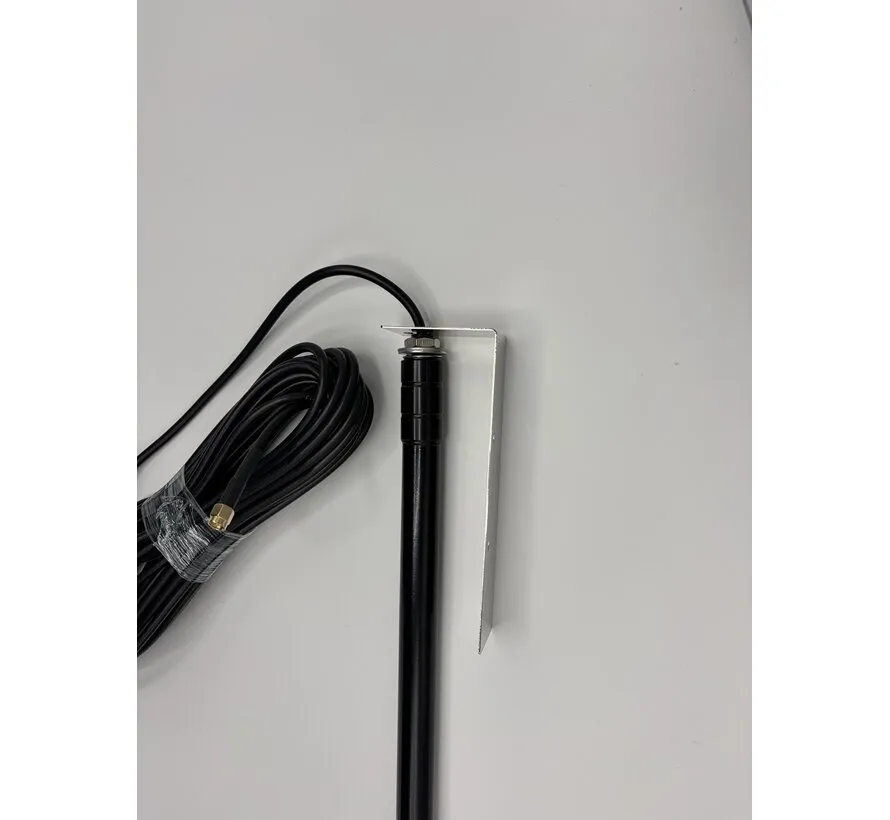

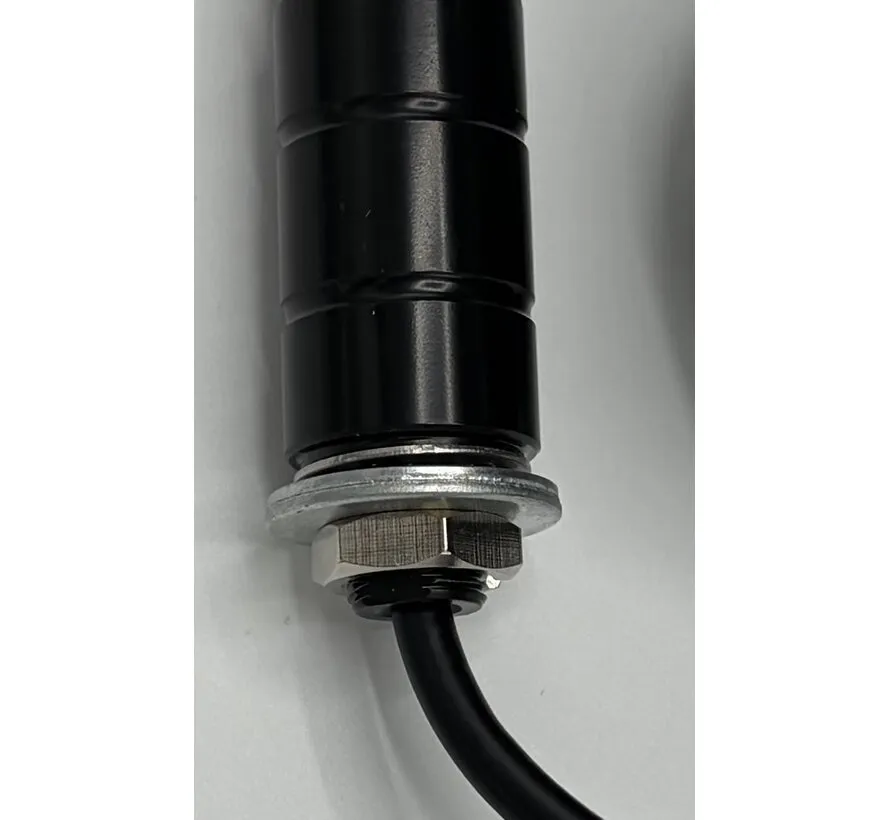

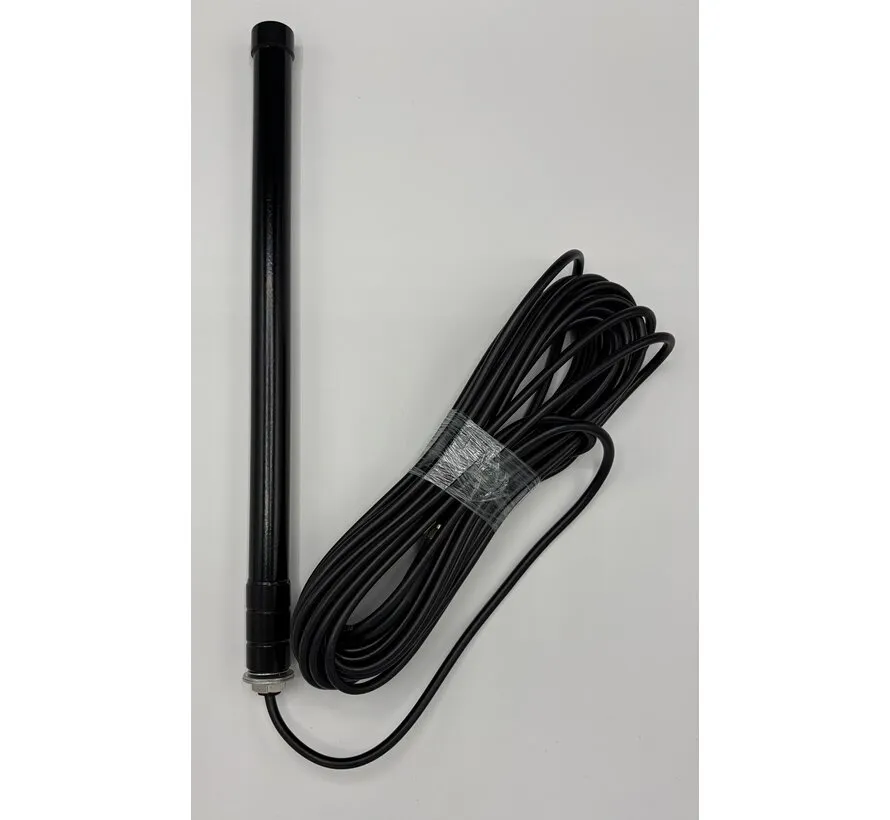

The Stigwize 5G wall mount antenna is a fixed fiberglass antenna designed for professional mobile network installations. It can be mounted on a wall or another fixed position and features an integrated CLF200 coaxial cable with SMA connector.
The range is available in three cable lengths: 3.5 metres, 5 metres and 10 metres. This allows the cable length to be selected according to the installation requirements.
The antenna is suitable for applications where an external mobile-network antenna is required for a router, modem, gateway, IoT system or other communication equipment.
Product specifications:
- Brand: Stigwize
- Series: STI10008
- Product type: 5G cellular antenna
- Antenna construction: fiberglass wall mount antenna
- Radiation pattern: omnidirectional
- Application: external antenna for routers, modems and gateways
- Mounting: fixed wall mounting
- Frequency range: 700–960 MHz
- Frequency range: 1700–2700 MHz

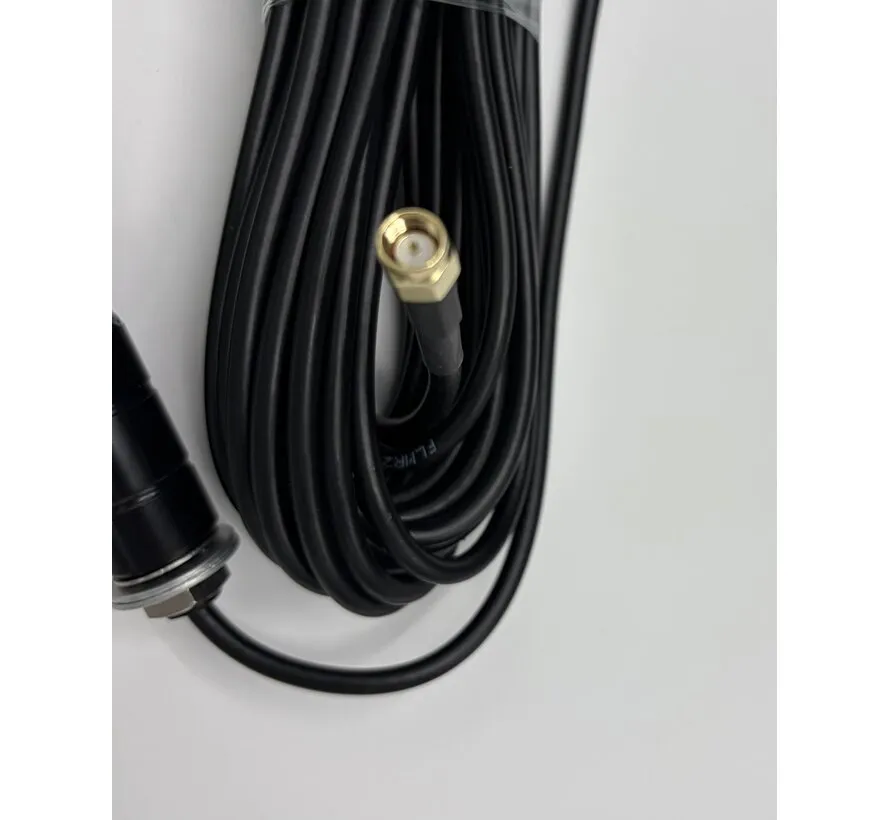

- Cable type: CLF200 coaxial cable
- Connector: SMA
- Cable length: 3.5 m, 5 m or 10 m depending on variant
- Indoor installation: yes
- Outdoor installation: yes
- GPS: no
- WiFi: no
- Passive antenna: yes
- Supply voltage: not applicable
- NMEA 0183: not applicable
- NMEA 2000: not applicable

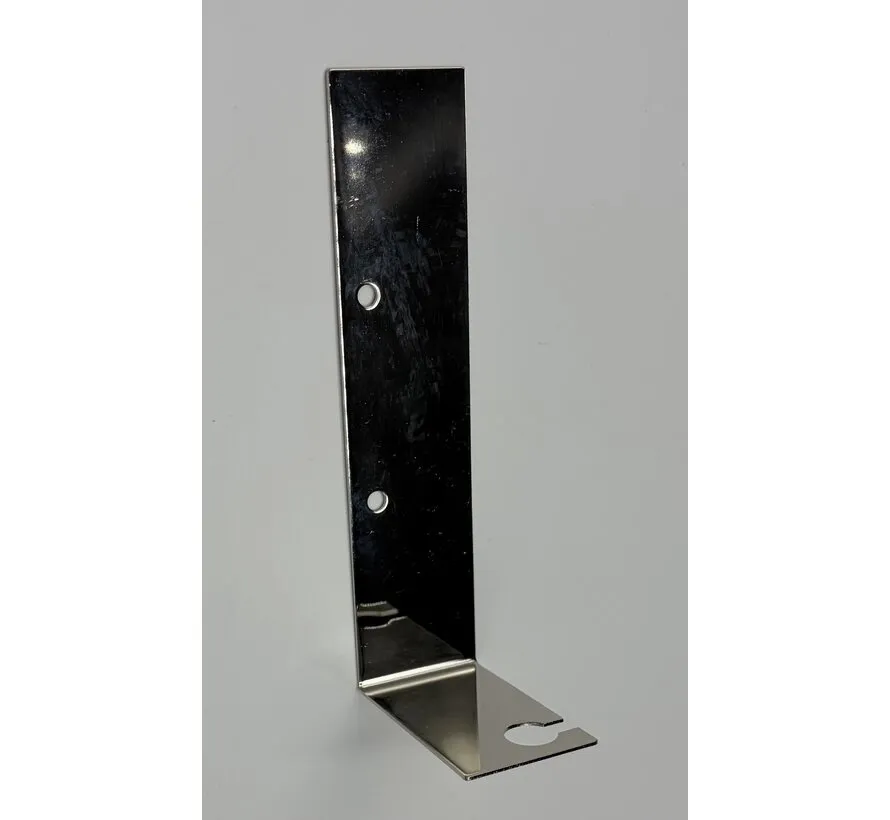

- Wall mounting hardware: included
Size antenna: 32,5 cm x 2,5 cm
Suitable for:
- 5G routers
- Cellular routers
- Industrial routers
- 5G modems
- Mobile gateways
- IoT gateways
- M2M systems
- Telemetry equipment
- Industrial networking systems
- Marine installations
- Technical installations
Compatibility:
Suitable for equipment with a compatible SMA antenna connection and support for the specified frequency ranges.
Modern 5G routers frequently use several antenna ports for MIMO. More than one antenna may therefore be required for optimum operation
