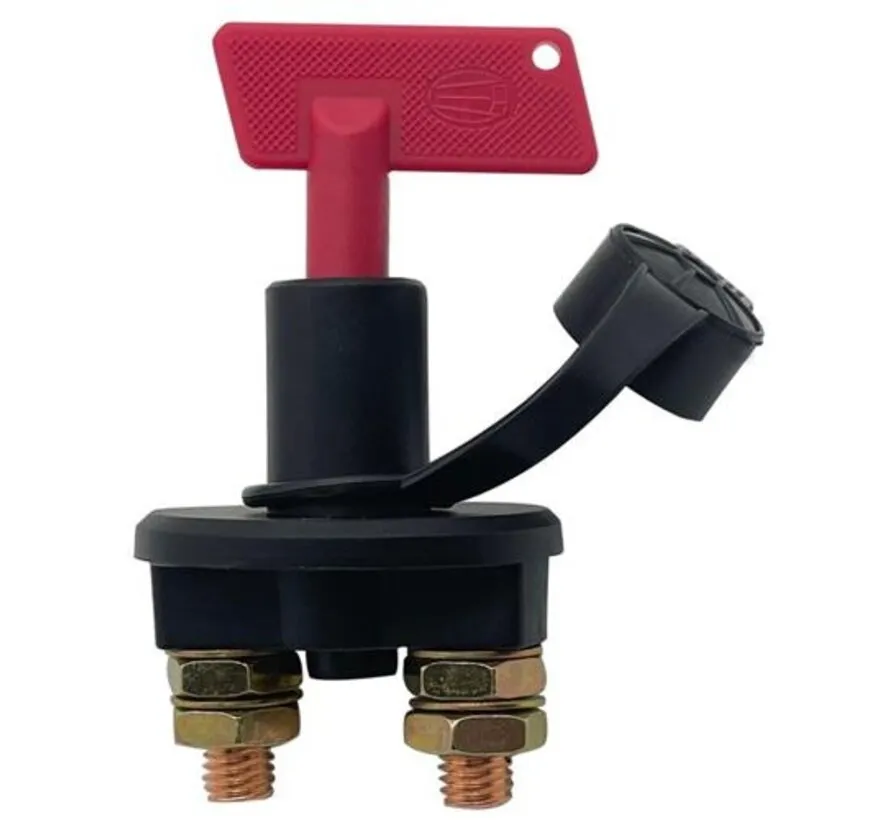

This Hollex battery switch is designed for safely switching battery circuits on and off in 12V and 24V onboard installations. It is a built-in version combining 100A continuous current capacity with a short-term peak load up to 500A. With its M10 terminal studs, it is suitable for main switching of starter batteries, service batteries, and general DC circuits on board.
Product specifications
- Brand: Hollex
- Article code: HBS01
- Product type: battery switch
- Application: main switching of battery circuits in 12V and 24V systems
- Version: built-in
- Voltage type: VDC
- System voltage:
- 12V
- 24V
- Continuous current: 100A
- Maximum short-term current: 500A

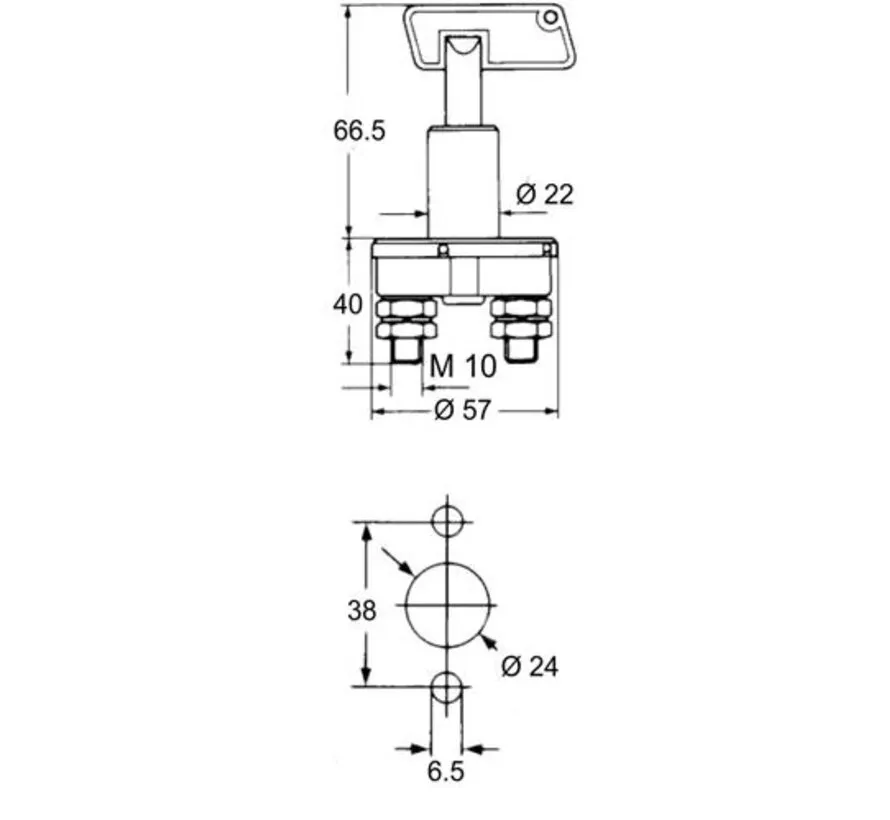

- Terminal size: M10
- Centre-to-centre stud spacing: 38 mm
- Hole size: Ø 24 mm
- Material: plastic
- Colour: black
- Dimensions:
- length 106.5 mm
- width 57 mm
- height 66.5 mm
- depth 40 mm
