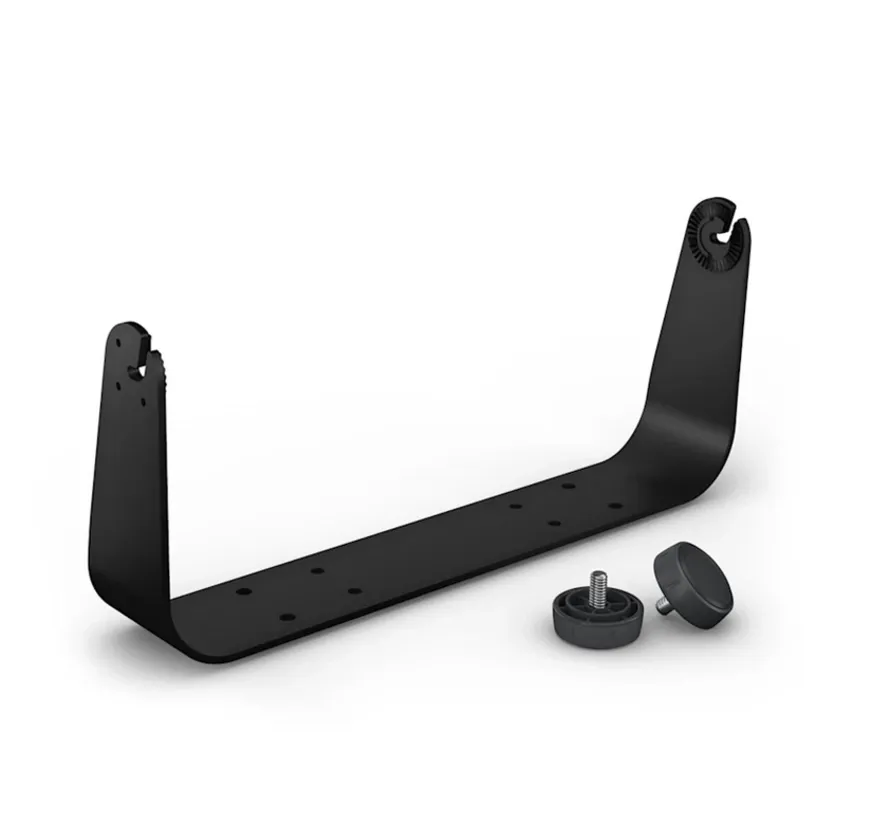

This original Garmin bail mount is designed for surface mounting compatible ECHOMAP Ultra 2 16-inch chartplotters on a flat surface.
The chartplotter sits directly in the bracket and is secured using the supplied side knobs. Its adjustable design allows the viewing angle to be tilted for improved visibility from the helm.
The bracket can also be used as a drilling template when marking the mounting holes. For fiberglass installations, Garmin recommends lightly countersinking only the upper gelcoat layer to help prevent cracking.
Important: the 16-inch version does not include a quick-release cradle. This differs from certain 10- and 12-inch ECHOMAP Ultra 2 mounting kits.
Key features
- Original Garmin mounting bracket
- For ECHOMAP Ultra 2 16-inch chartplotters
- Adjustable bail-mount design
- Adjustable viewing angle
- Includes mounting knobs
- Designed for surface mounting
- Mounts on a flat surface
- Secure fixed installation
- Quick-release cradle not included
- Suitable as a replacement or additional mounting bracket
Compatibility
Suitable for:

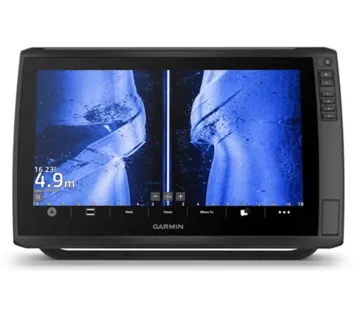

- Garmin ECHOMAP Ultra 2 16sv series
- Garmin ECHOMAP Ultra 2 16-inch chartplotters
- Including ECHOMAP Ultra 2 162sv versions
Not intended for smaller 10- or 12-inch ECHOMAP Ultra 2 models that use different mounting brackets.
Product specifications
- Product type: adjustable chartplotter bail mount
- Suitable display size: 16 inch
- Installation type: surface mount / bail mount
- Mounting surface: flat
- Adjustable viewing angle: yes
- Device retention: side mounting knobs
- Quick-release cradle: not included
- Recommended pilot-hole drill size according to Garmin: 3 mm / 1/8 inch
- Colour: black
- Application: mounting ECHOMAP Ultra 2 16-inch chartplotters
- Included: bail mount, mounting knobs, washers and mounting screws according to Garmin installation configuration
- Not included: ECHOMAP Ultra 2 chartplotter or quick-release cradle
- Compatibility advice: confirm the exact ECHOMAP Ultra 2 display size and model before ordering
- EAN: 0753759353407
