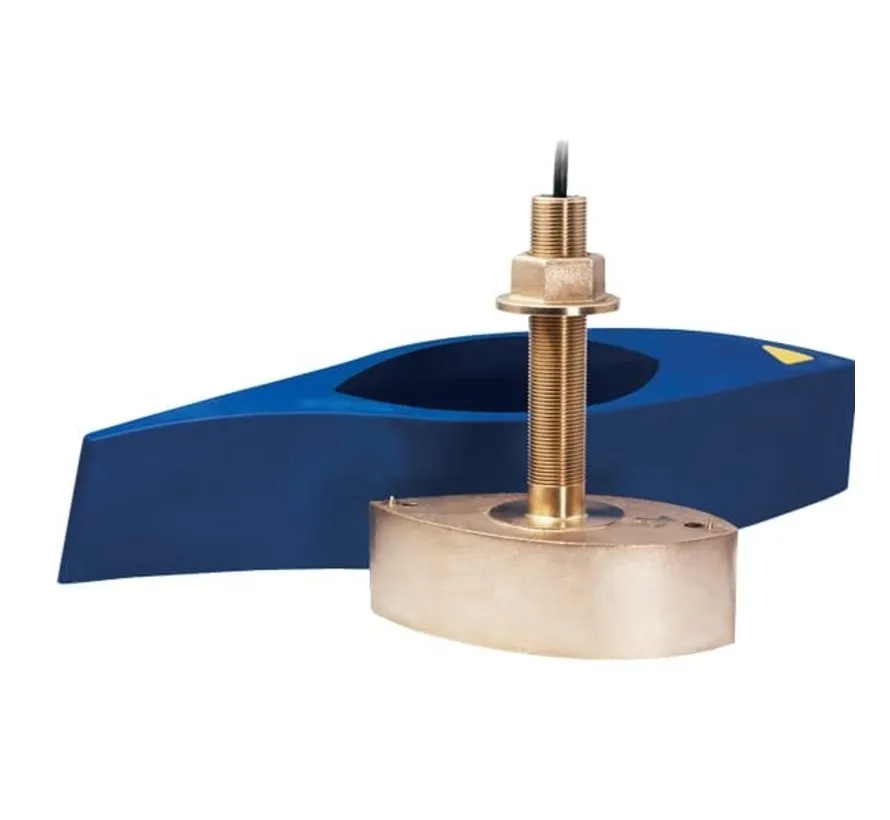

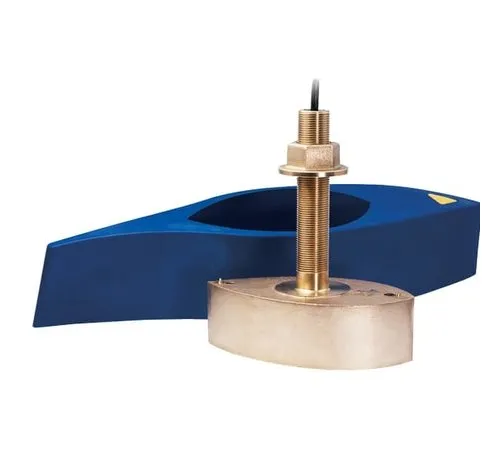

Airmar B265LH Thru-hull Chirp-ready 1 kW transducer.
This transducer has an operating frequency of 42 to 65 kHz and 130 to 210 kHz, and a beam width of 16 to 25 degrees and 6 to 10 degrees. It is capable of angles between plane and keel from 0 to 20 degrees and depths up to 914 m (3000 ft.).
Depth and fast-response water temperature measurement.
1 kW of power for great performance in deep water
Low frequency: 42 to 65 kHz
25° to 16° beam width
Maximum depth of 914 m (3000')
High frequency: 130 to 210 kHz
10° to 6° beamwidth
Maximum depth of 304 m (1000')
103 kHz total bandwidth of one transducer
Covers popular fishing frequencies of 50 and 200 kHz plus everything else in the bandwidth
Bronze housing with high-quality fairing for optimum performance at high speeds
Available for Lowrance, B&G, Simrad, Garmin, Raymarine.
Please specify when ordering which brand you want it for
