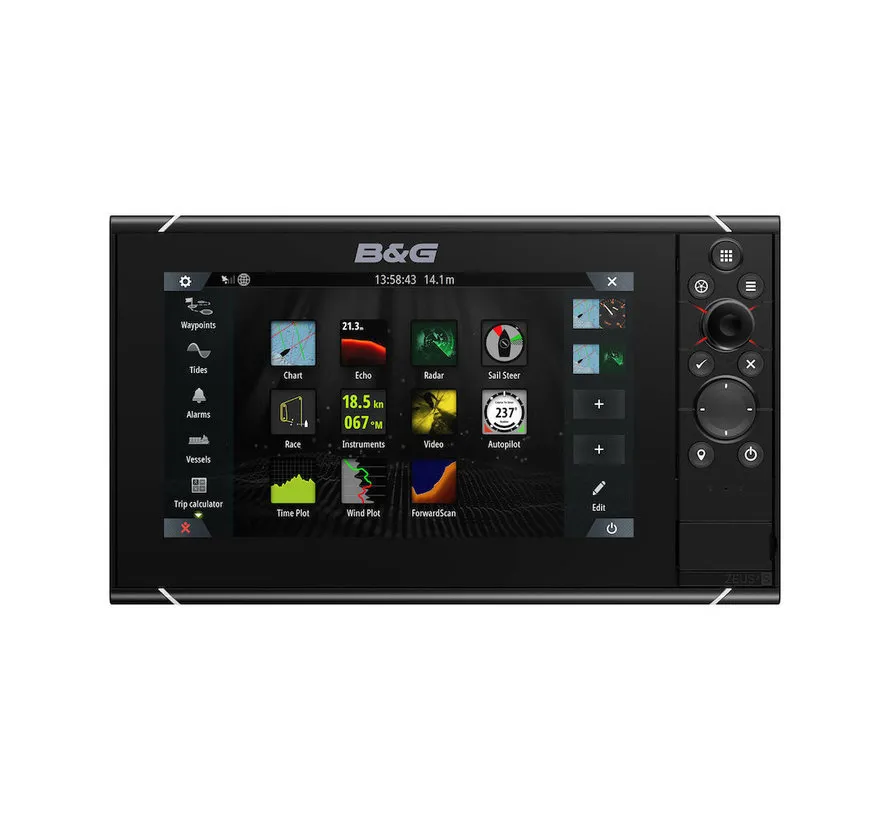

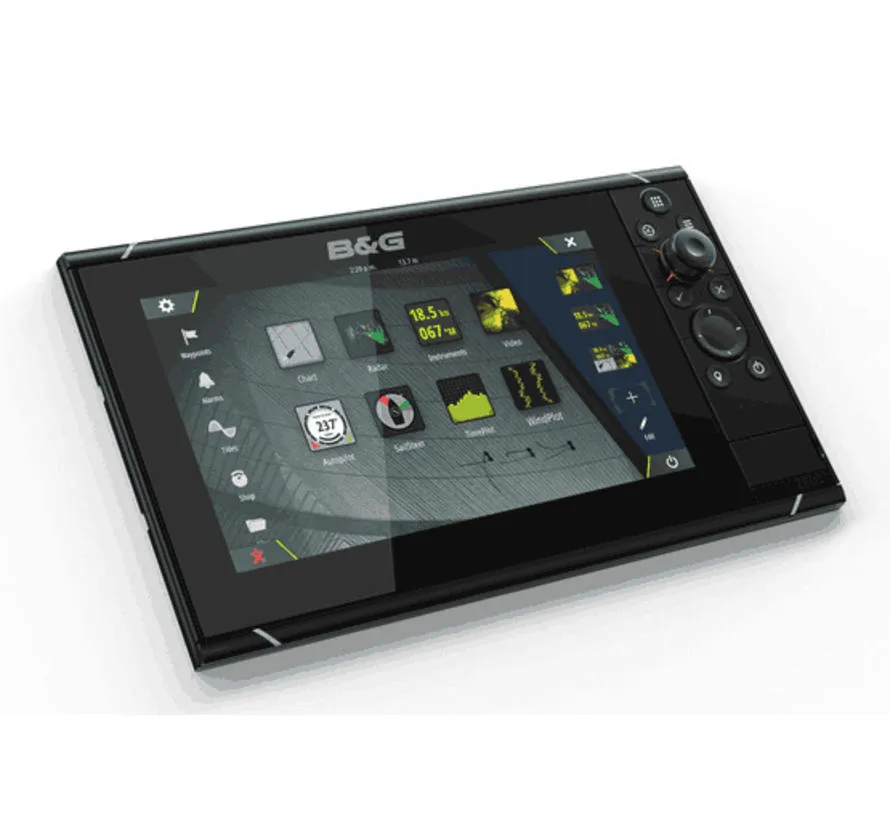

The B&G Zeus S 9 is a 9-inch multifunction chartplotter developed specifically for sailing.
Main features
- 9-inch SolarMAX IPS touchscreen
- 1280 × 800 pixels
- 1200 nits
- 85° viewing angle
- Integrated 10 Hz GPS
- Built-in sonar
- NMEA 2000
- Ethernet
- WiFi
- Bluetooth
- Radar support
- Autopilot integration
Sailing functions

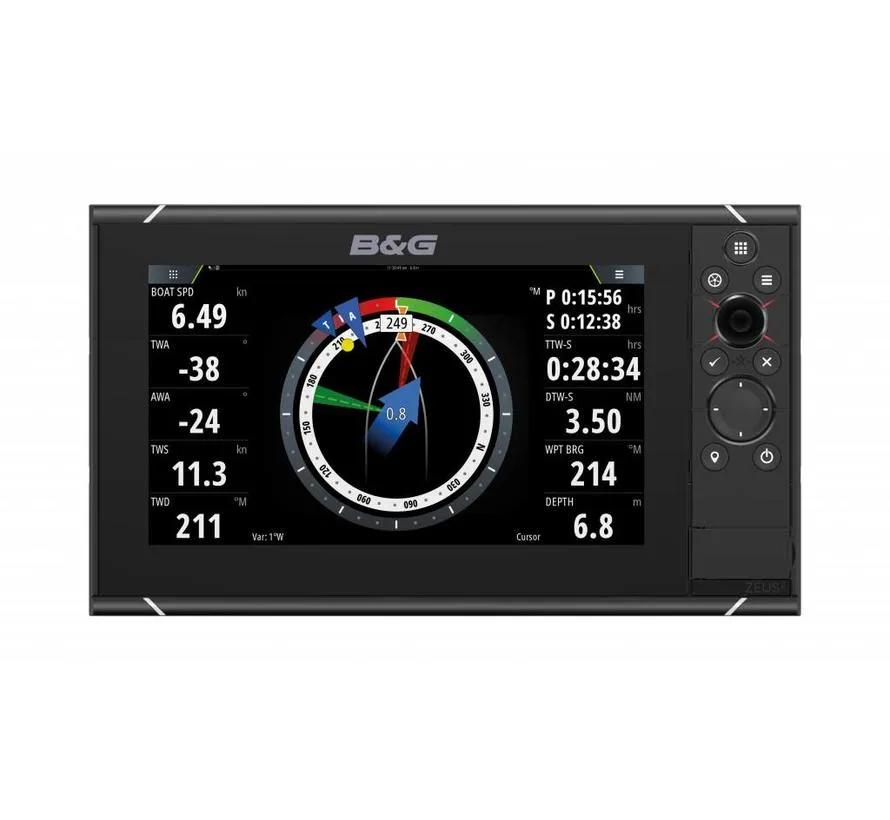

- SailSteer
- Laylines
- StartLine
- Cruising mode
- Racing mode
- Routing
- Safety alerts
- Wind information
- Tide and current information
Navigation capacity
- 6000 waypoints
- 500 routes
- Up to 100 route points
- 50 tracks
- Up to 12,000 track points
Chart support
- C-MAP DISCOVER X
- C-MAP REVEAL X
- Global Basemap included
- Detailed chart not included
Sonar
- 1 × 9-pin Xsonic port
- CHIRP
- 50/200 kHz
- HDI
- Active Imaging
- SideScan
- DownScan
Transducer not included.
Networking
- NMEA 2000 Micro-C
- Ethernet
- WiFi 802.11 b/g/n
- Bluetooth 4.0
- 1 microSD slot
- 1 USB-A port
- IP camera support
Power
- 12 V DC
- Operating range: 10–17 V DC
- Maximum power consumption: 29.7 W
- Recommended fuse: 3 A
Dimensions
- 239 × 149 × 73 mm
- Weight: approx. 2.2 kg
Environmental
- IPX6 / IPX7
- Operating temperature: -15 °C to +55 °C
- Storage temperature: -20 °C to +60 °C
