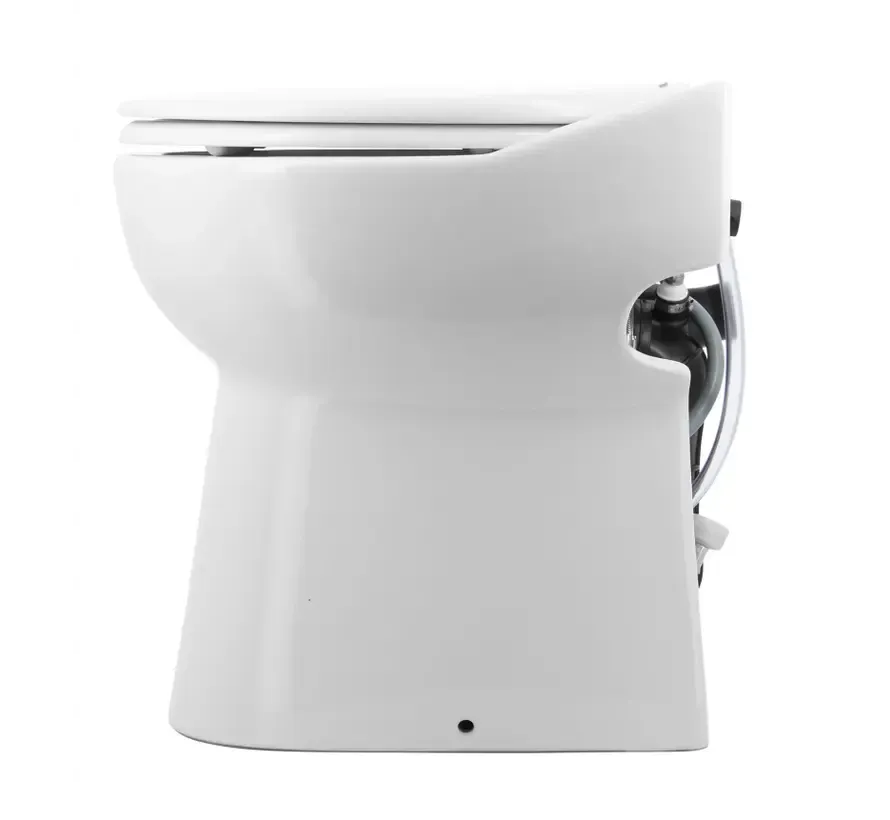

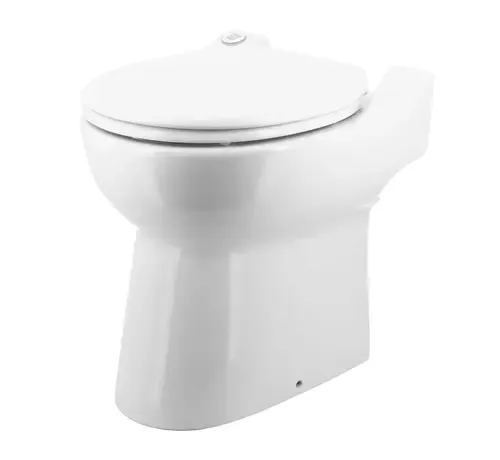

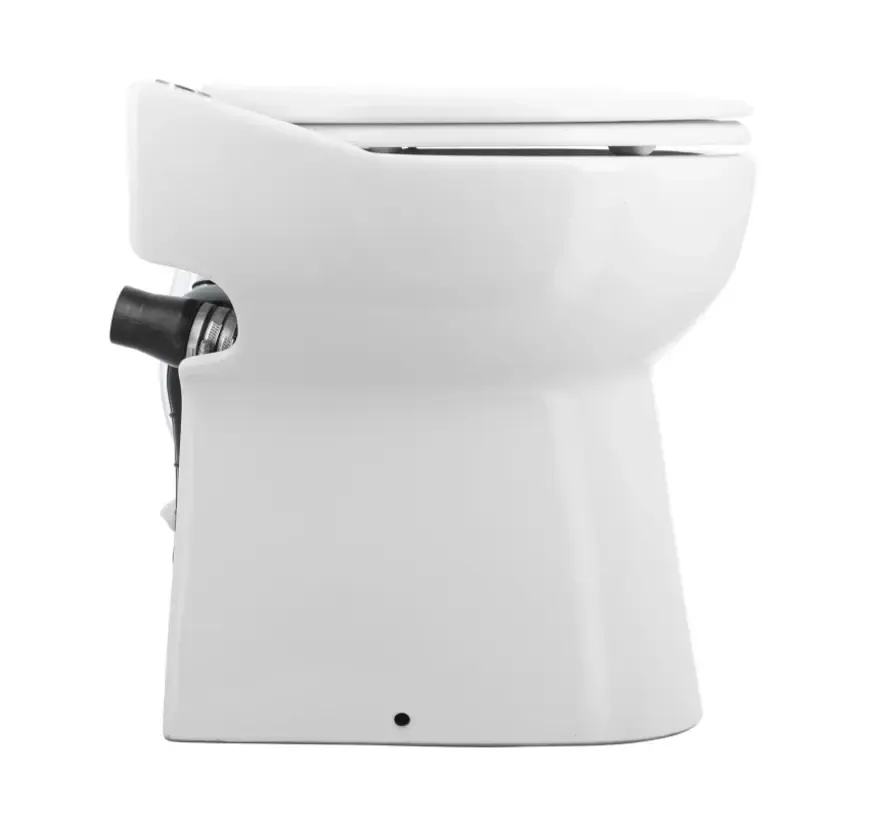

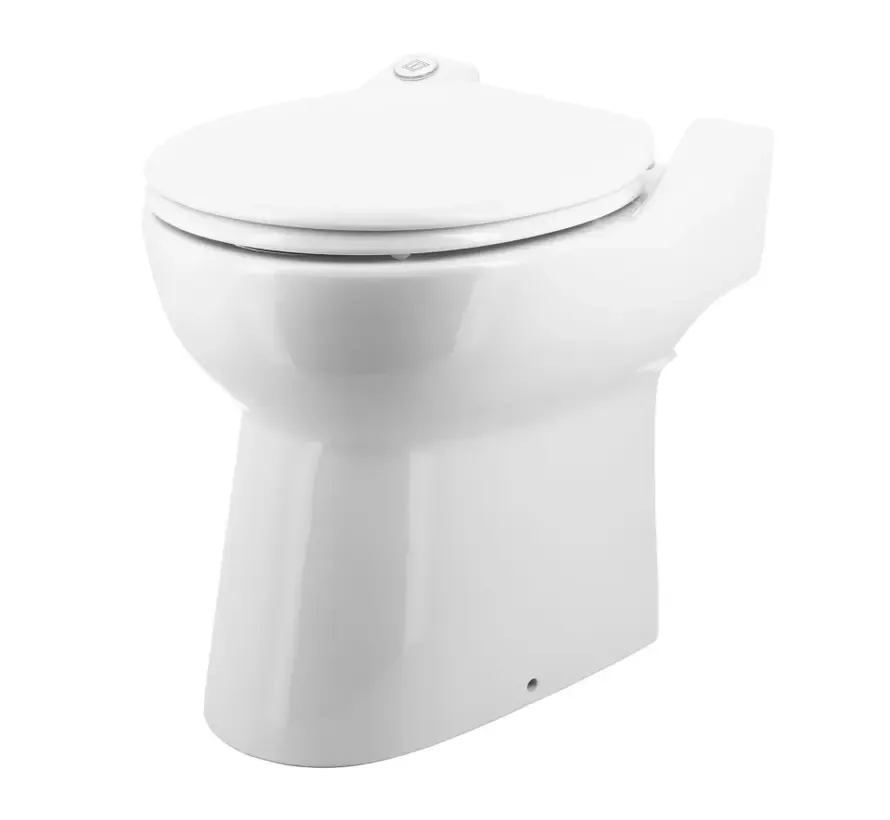

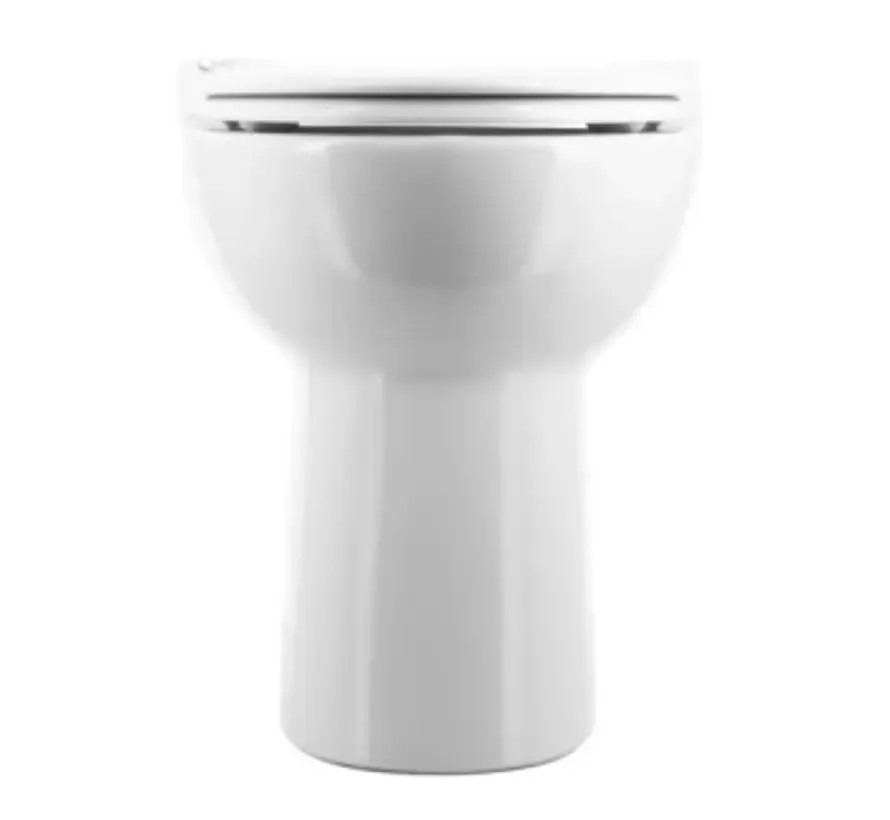

The Vetus WC..S2 range is designed for boats where an electric toilet is preferred with a tidy fixed installation and controls that match the onboard power supply. This series combines a porcelain bowl with an integrated pump system, so flushing and discharge are built into one compact unit. That makes it a practical option for upgrading from a manual toilet to an electric setup with greater ease of use.
The 12V and 24V versions use a control panel for short or long flushing. The 110V and 220V versions use a dual push button on the toilet bowl itself. Vetus states that a minimum water pressure of 1.5 bar is required for proper operation.
Specifications:
- electric marine toilet
- available in 4 variants
- WC12S2: 12V
- WC24S2: 24V
- WC110S: 110V
- WC220S: 220V

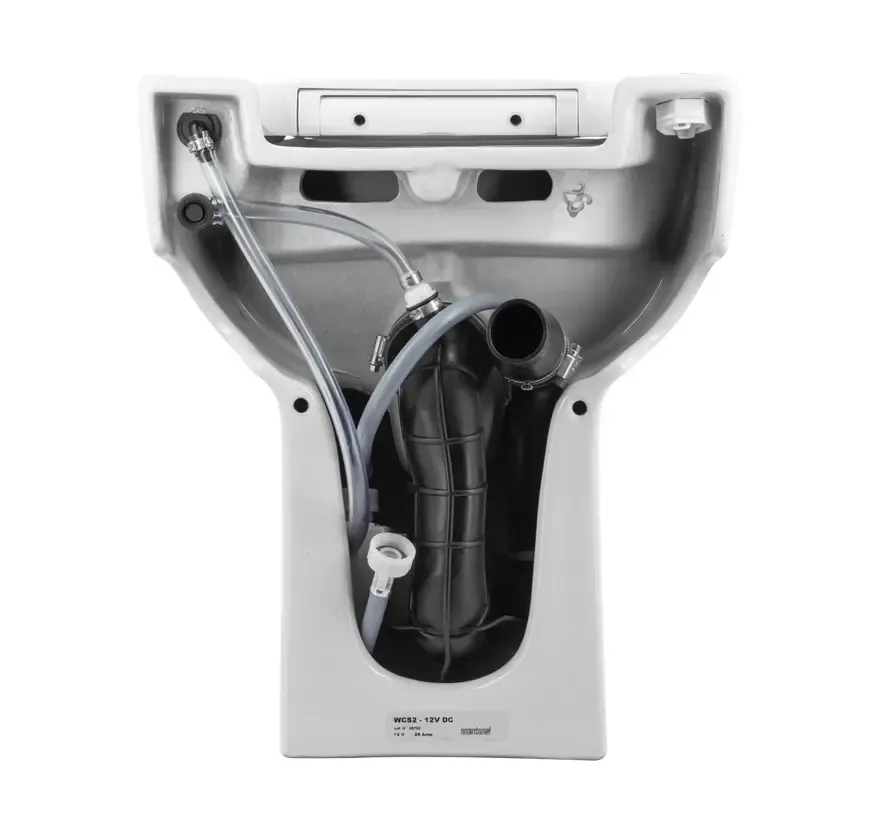

- integrated pump system
- porcelain bowl
- short and long flush
- minimum water pressure: 1.5 bar
- fuse 12V: 30 A medium time lag
- fuse 24V: 20 A medium time lag
- fuse 120V: 7.5 A
- fuse 230V: 3 A

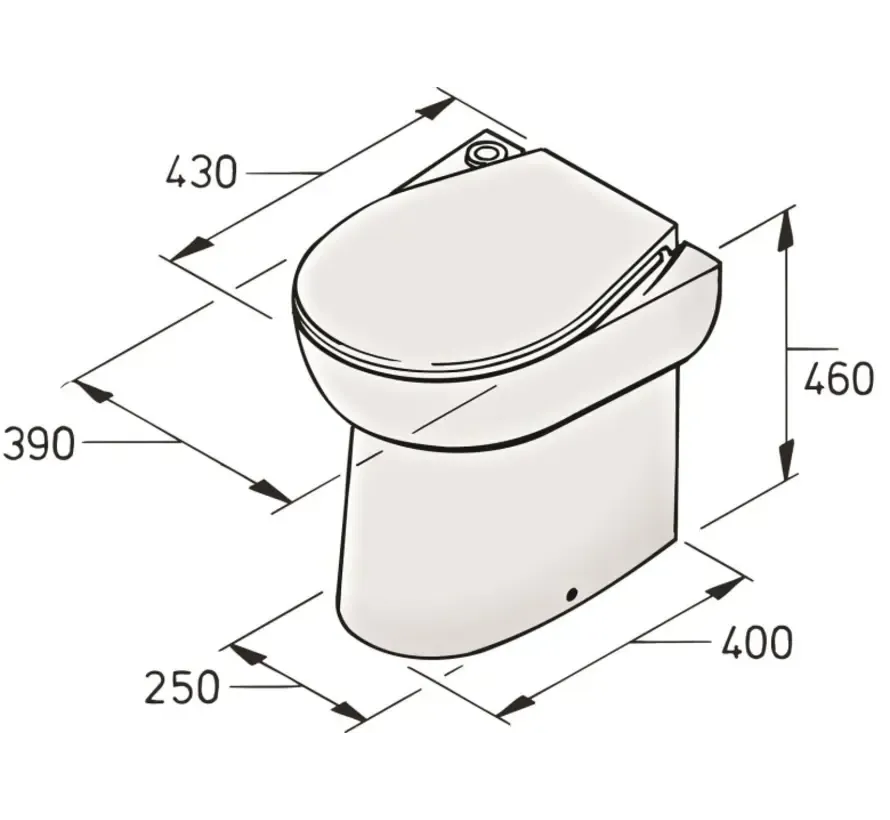

- main dimensions approx.: 460 x 250 x 400 mm
- footprint approx.: 390 x 250 mm
