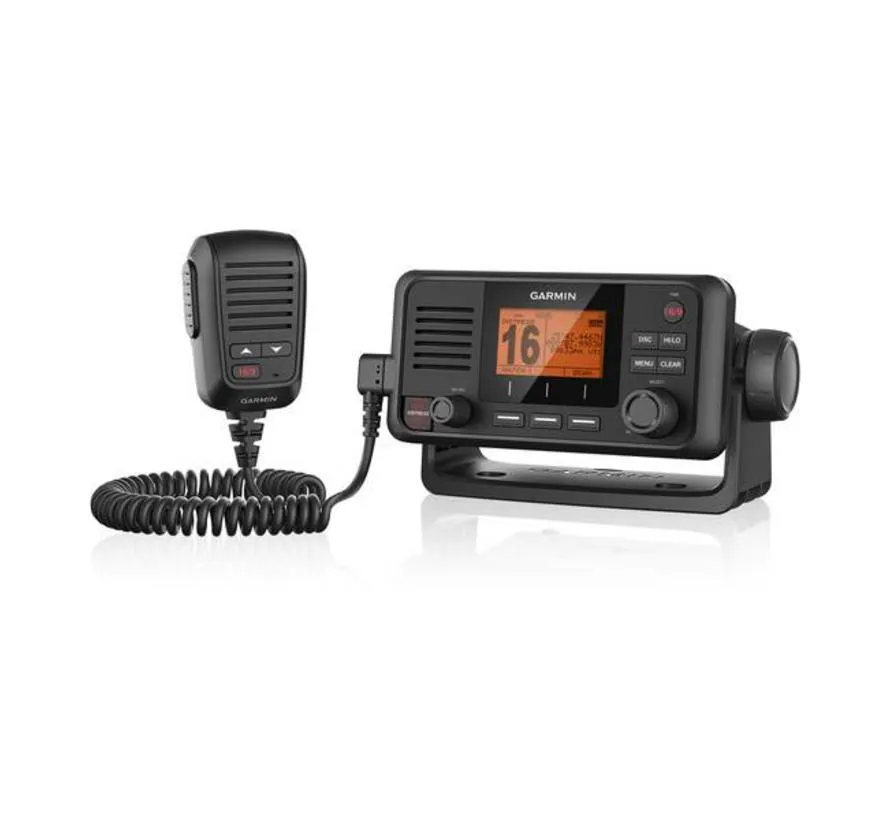

The Garmin VHF 115i is a fixed-mount 25 W marine VHF radio with an integrated GPS/GLONASS receiver, Class D DSC and ATIS support. It connects to compatible chartplotters and marine electronics through NMEA 2000 or NMEA 0183.
Product specifications:
- Brand: Garmin
- Model: VHF 115i
- Part number: 010-02096-01
- EAN: 0753759210755
- UPC: 753759210755
- Product type: fixed-mount marine VHF radio
- Transmit power: 1 / 25 W
- Transmit frequency range: approx. 156.025–162.025 MHz
- Receive frequency range: approx. 156.050–163.275 MHz
- International marine channels: yes
- DSC: yes
- DSC class: Class D
- MMSI support: yes
- ATIS: yes
- Built-in GPS: yes
- GLONASS: yes
- Integrated GNSS antenna: yes
- External GNSS antenna connector: BNC
- WAAS / EGNOS: yes
- NMEA 2000: yes
- NMEA 0183: yes
- AIS transmitter: no
- AIS receiver: no
- Dual Watch: yes
- Tri-Watch: yes
- Display: monochrome FSTN LCD
- Internal speaker output: 1 W
- External speaker output: up to 4 W at 4 Ω
- Hailer output: up to 20 W at 4 Ω
- Antenna connector: SO-239
- Antenna impedance: 50 Ω
- Maximum antenna gain: 9 dBi
- Operating voltage: 12 V DC
- Supported voltage range: approx. 10.8–15.6 V DC
- Water rating: IPX7
- Operating temperature: -15 to +55 °C
- Storage temperature: -20 to +70 °C
- Compass-safe distance: 70 cm
- Dimensions: 85 x 170 x 146 mm
- Weight with microphone: approx. 1.241 kg.
DSC and GPS:
The VHF 115i provides full Class D DSC functionality with dedicated Channel 70 monitoring. Its integrated GPS position can be included automatically in compatible DSC calls.
ATIS:
International versions support ATIS for applicable European inland waterways. Enabling ATIS automatically disables DSC, Dual Watch, Tri-Watch and channel scanning.
NMEA connectivity:
- NMEA 2000: yes
- NMEA 0183: yes
- DSC and position information can be exchanged with compatible chartplotters.
- NMEA 0183 and NMEA 2000 cannot be active simultaneously.
Included:
- 1 x Garmin VHF 115i
- 1 x fixed microphone
- Bail mount with knobs and hardware
- Protective cover
- Trim ring
- Flush-mount gasket
- Power cable
- Documentation.
