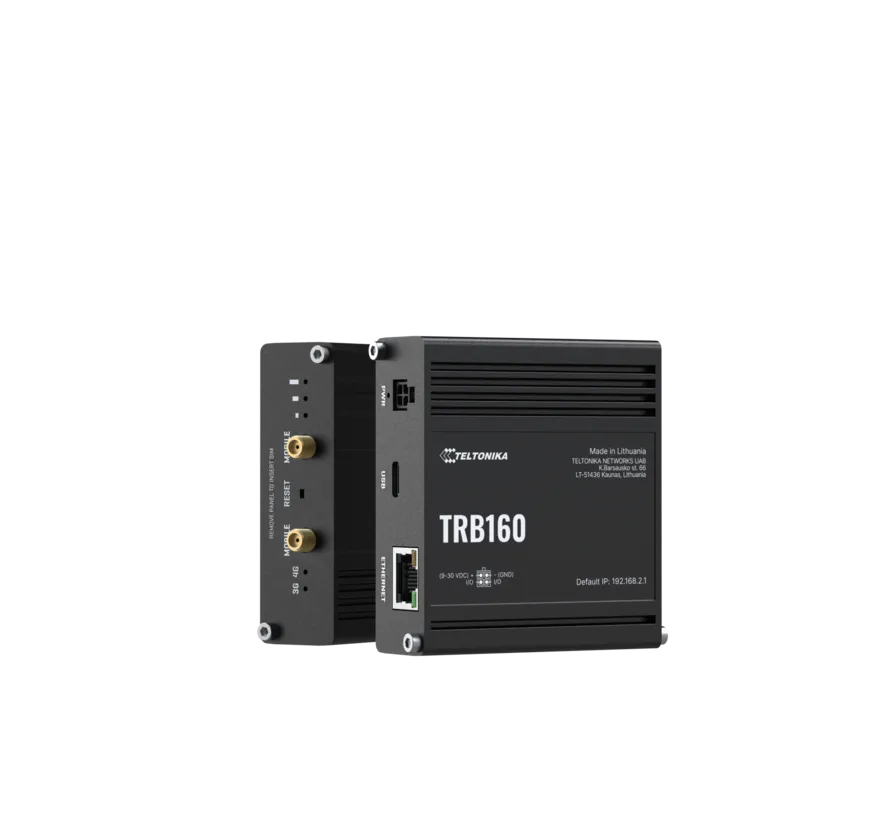

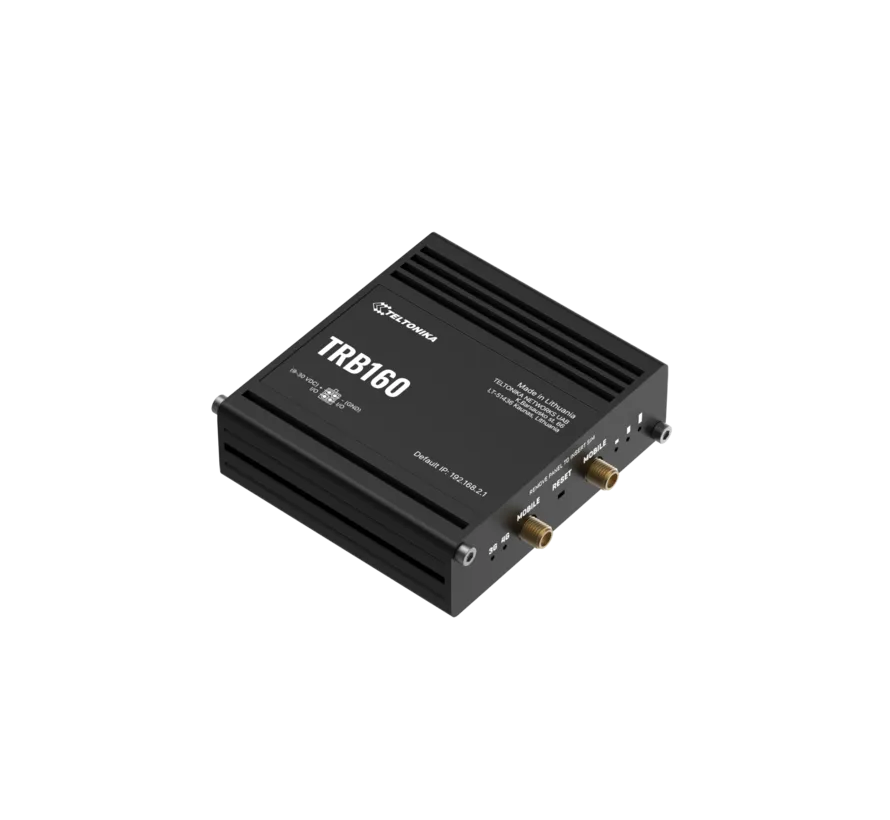

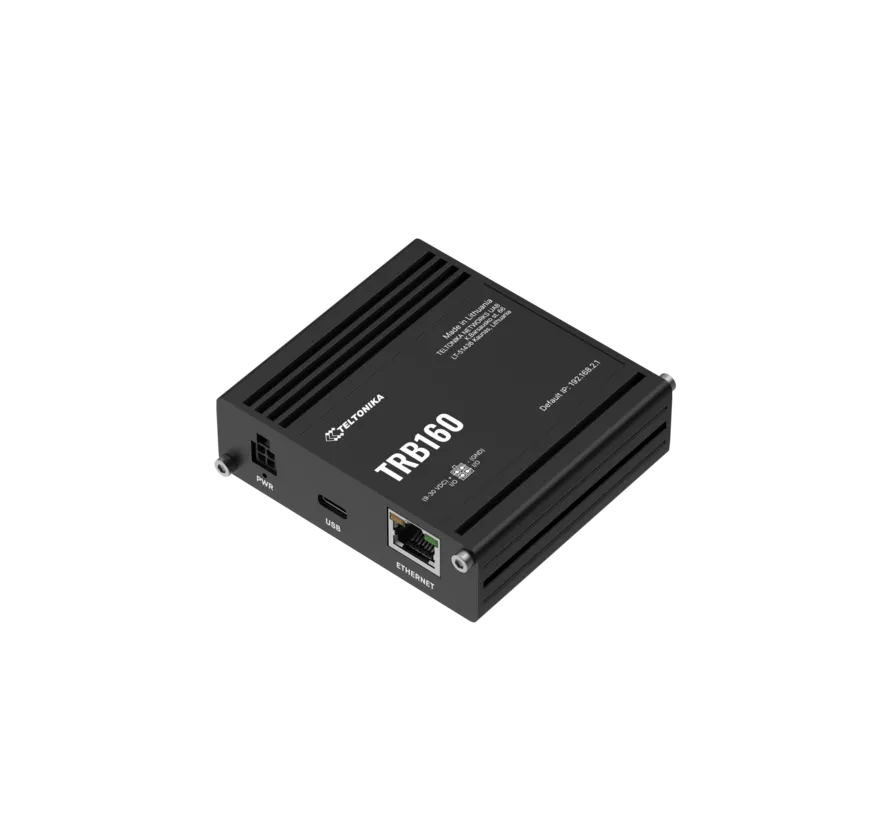

The Teltonika TRB160 is a compact and energy-efficient industrial IoT gateway for reliable cellular data connections. With LTE Cat 6 and carrier aggregation, the gateway provides higher mobile speeds and improved connection stability compared with basic Cat 4 solutions.
The TRB160 is equipped with Gigabit Ethernet and USB-C. USB-C can be used for powering the device while also providing a virtual network interface. With RutOS, VPN functions and industrial protocols, the gateway is suitable for M2M communication, remote monitoring, machinery, automation, data logging and technical installations.
Key features
- Compact industrial 4G IoT gateway
- LTE Cat 6 with carrier aggregation
- Cellular speed up to 300 Mbps download / 50 Mbps upload
- Gigabit Ethernet port
- USB-C for power and virtual network interface
- Runs on Teltonika RutOS
- Supports industrial protocols such as OPC UA, Modbus, MQTT, DNP3 and DLMS
- Suitable for M2M and IoT applications
- Remote management via Teltonika RMS
- Compact, lightweight and energy-efficient design
- Suitable for DIN rail, wall or desktop mounting, depending on mounting kit
- For industrial, marine, mobile and technical installations
Product specifications
- Brand: Teltonika Networks
- Model: TRB160
- Article code / order code: TRB160100000 listed by suppliers
- Product type: industrial 4G LTE IoT gateway
- Cellular technology: 4G LTE Cat 6, 3G
- LTE speed: up to 300 Mbps download / 50 Mbps upload
- 3G speed: up to 42 Mbps download / 5.76 Mbps upload
- LTE FDD bands: B1, B3, B7, B8, B20, B28
- LTE TDD bands: B38, B40, B41
- 3G bands: B1, B8
- Ethernet: 1x Gigabit Ethernet
- USB: USB Type-C
- Antenna connection: external cellular antenna connection via SMA according to supplier information
- Processor: Qualcomm ARM Cortex-A7, 1.2 GHz
- RAM: 128 MB
- Flash: 256 MB
- Operating system: RutOS, Linux/OpenWrt-based
- Protocols: OPC UA, Modbus, MQTT, DNP3, DLMS, Data to Server and more
- Management: WebUI, RMS, FOTA and configuration profiles
- Operating temperature listed: -40 °C to +75 °C
- Protection rating: IP30 listed in manual/specifications
- Dimensions listed by suppliers: approx. 83 x 74.2 x 25 mm
- Weight listed by suppliers: approx. 172 g
- Application: IoT, M2M, remote monitoring, machinery, automation, data logging, routing and industrial network access
