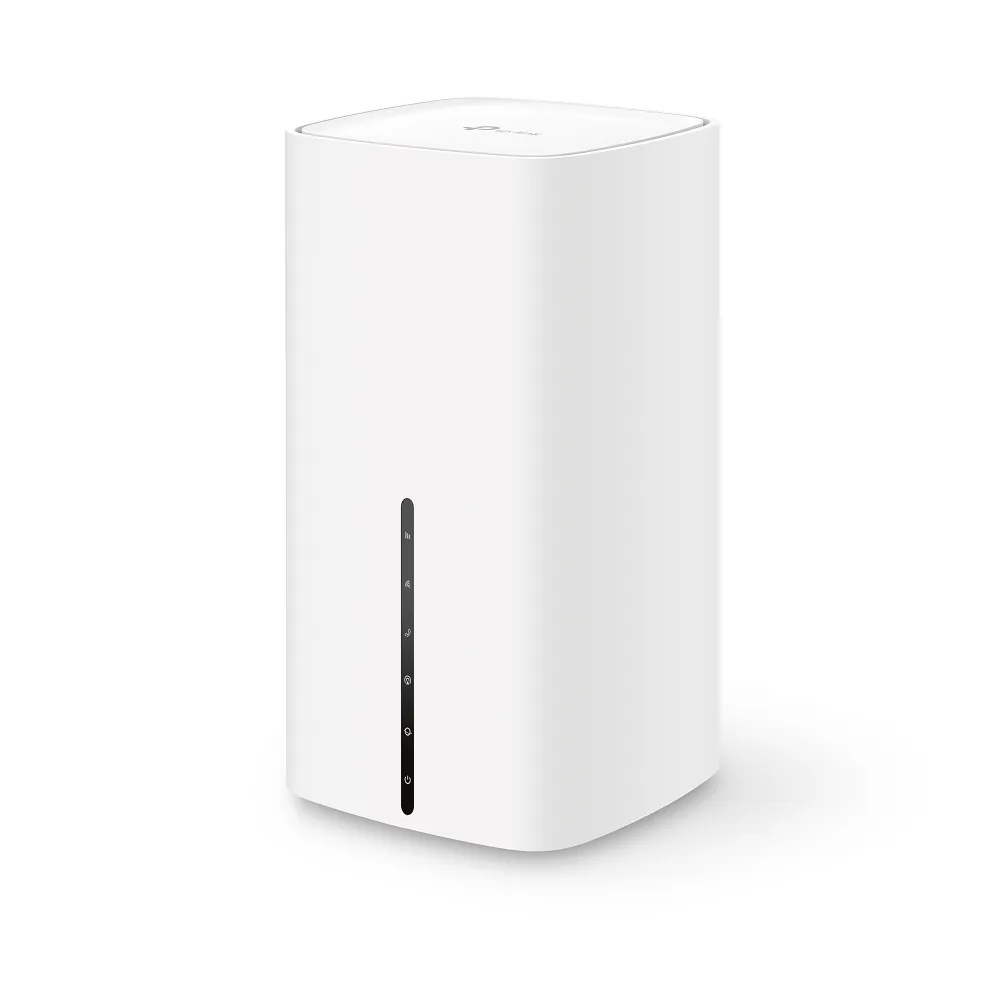

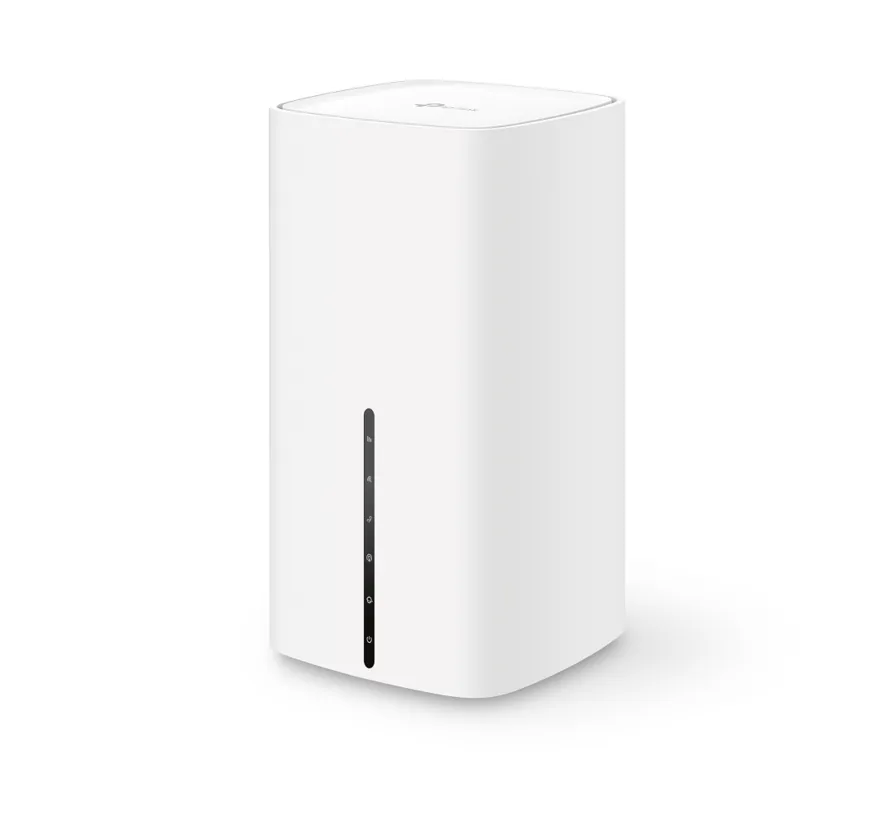

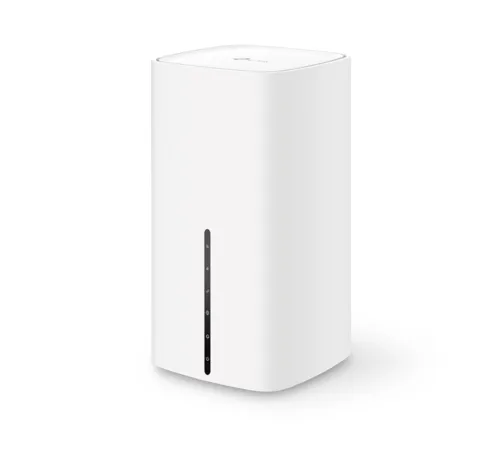

TP-Link NX511V 5G AX3000 Wi-Fi 6 Telephony Router.
The TP-Link NX511v 5G modem is a smart solution for those looking for a fast and stable connection. With 5G connectivity and Wi-Fi 6 technology, it not only delivers high speeds, but also greater network capacity and efficiency, even when multiple devices are connected. EasyMesh technology helps you extend the range of your connection to your entire apartment or even your entire home.
Boost your 5G speed: take advantage of an advanced 5G network with download speeds of up to 3.4 Gbps. Share your 5G network with multiple Wi-Fi devices and enjoy uninterrupted Ultra HD movies, super-fast downloads, and smooth video calls and video conferences.
AX3000 dual-band Wi-Fi 6 speed: 2402 Mbps (5 GHz) + 574 Mbps (2.4 GHz).†
VoLTE/CSFB telephony: with 1 voice port, users can make or receive calls over the internet by simply connecting their device to their existing phone.
Plug & Play: Enjoy 5G as soon as you insert your SIM card.
EasyMesh support: Work with EasyMesh products to create a more flexible and economical mesh network with a single Wi-Fi name and seamless coverage throughout your home.
Full gigabit ports for a perfect connection: full gigabit Ethernet ports provide speed and a reliable connection to intensive wired devices such as smart TVs, game consoles, NAS, and more.
Easy remote management: supports TR-069 and TR-369 protocols and TAUC (TP-Link Aginet Unified Cloud).
The 5G modem supports download speeds of up to 3.4 Gbps.
The integrated VoLTE function enables high-quality voice calls over the internet.
AX3000 Dual-band Wi-Fi 6 technology ensures high speeds and efficiency.
Gigabit Ethernet connections guarantee a stable wired connection.
Specifications
CPU: 1 GHz dual-core processor

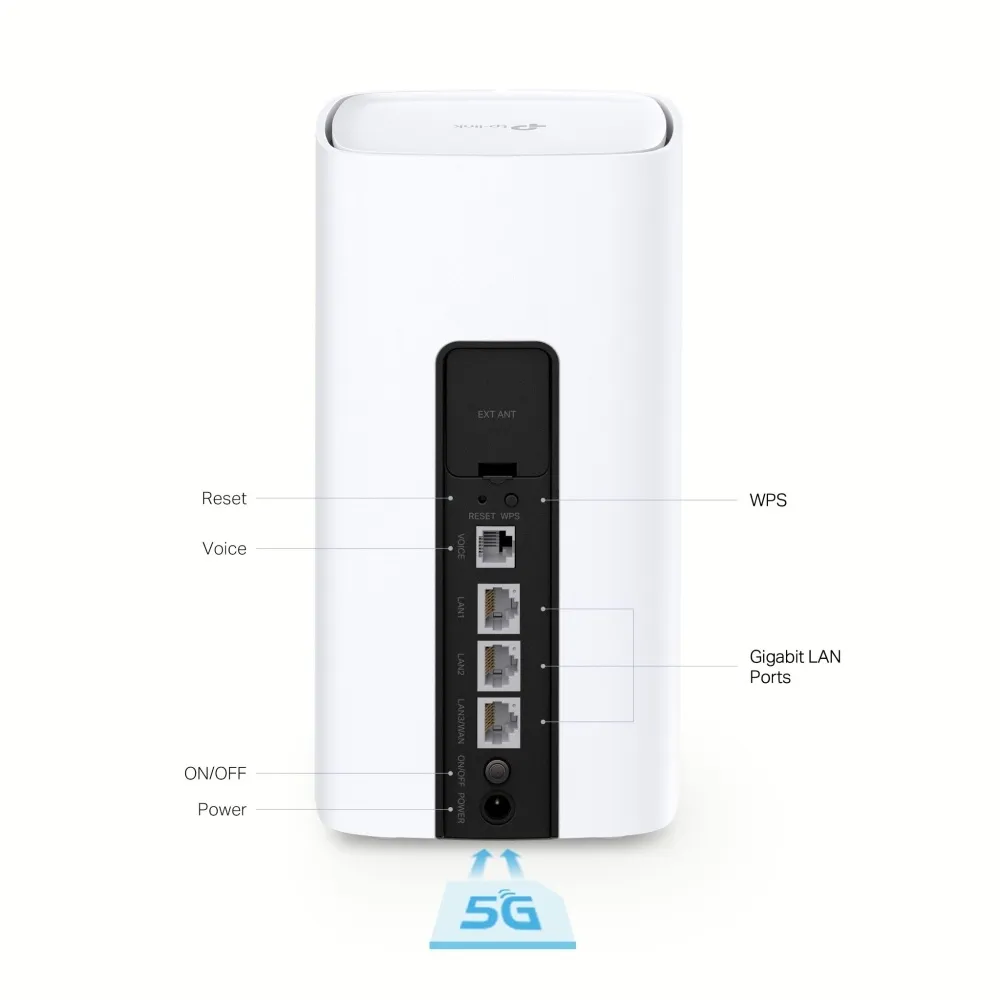

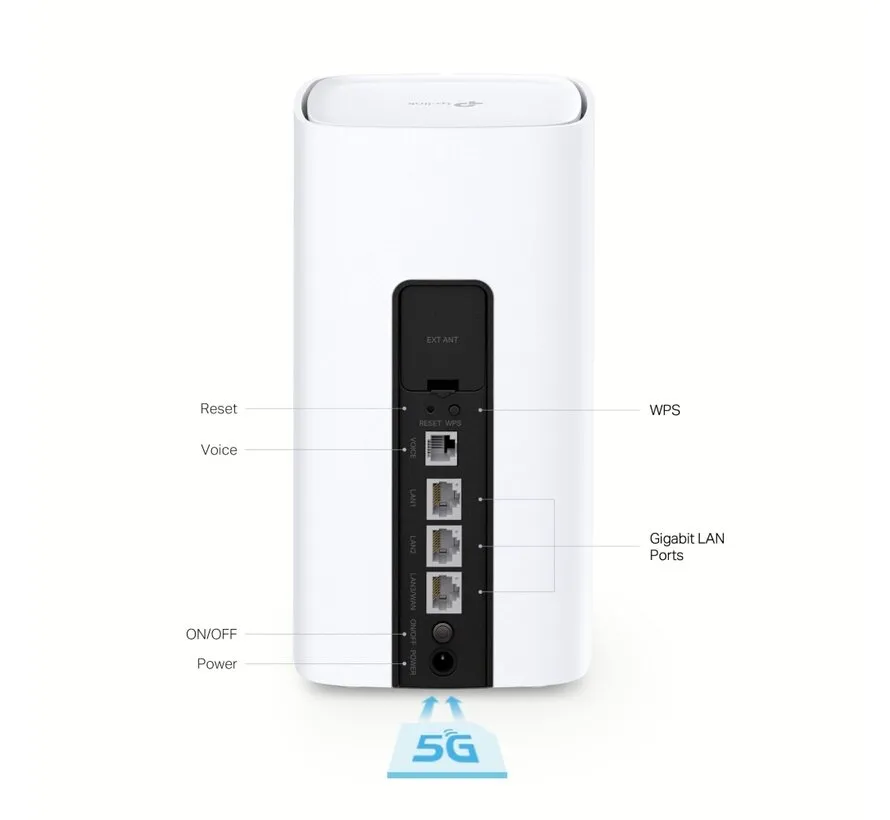

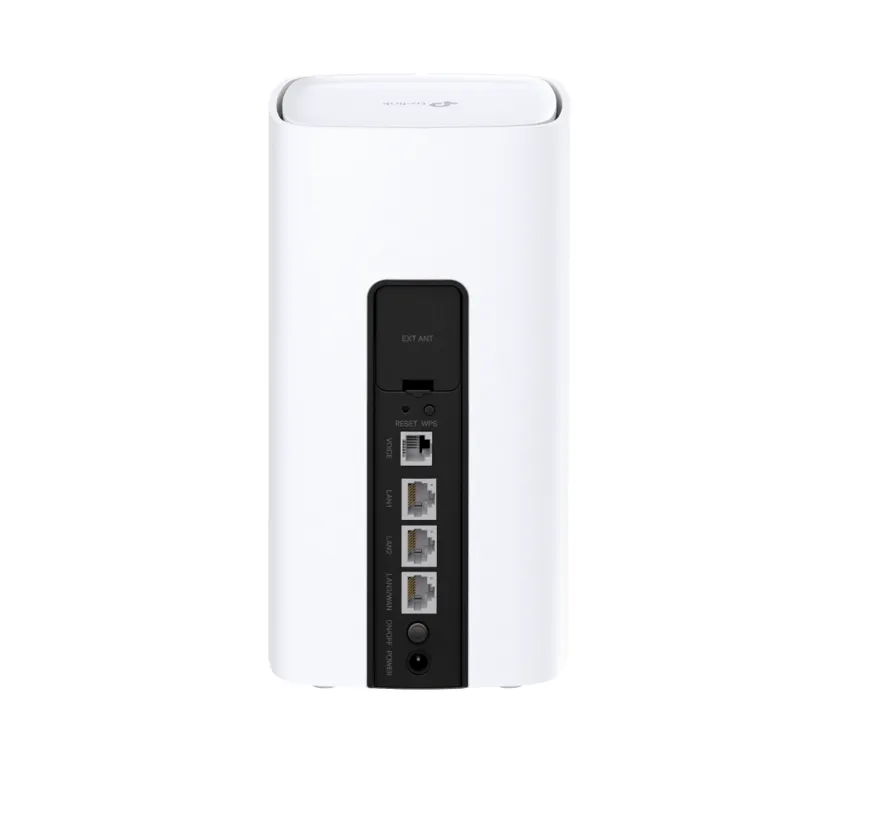

Interface: 3 × 10/100/1000 Mbps RJ45 LAN ports
(1 port for automatic detection of WAN/LAN)
Button: 1 RESET/WIFI multiplex button and 1 WPS button
External power supply: 12V/2A
Input: 100-240V~50-60Hz 0.8A
Dimensions: (L x W x H) 3.9 × 3.9 × 7.56 inches (99 × 99 × 192 mm)
Antenna: internal WiFi antennas; optional internal/external LTE/5G antenna
WIRELESS FEATURES
Wireless communication standards: IEEE 802.11a/n/ac/ax 5 GHz,
IEEE: 802.11b/g/n/ax 2.4 GHz
Frequency: 2.4 GHz and 5 GHz
Signal speed: 5G SA: 2.4 Gbps (downstream) / 900 Mbps (upstream)
5G NSA: 3.4 Gbps (downstream) / 550 Mbps (upstream)
LTE: 1.6 Gbps (downstream) / 200 Mbps (upstream).
Transmission power CE: ≤20dbm (2.4GHz); ≤23dbm (5G band 1 / band 2);
≤30dbm (5G band 3)
RCM: ≤30 dbm (2.4 GHz); ≤23 dbm (5G band 1 / band 2);
≤30 dbm (5G band 3 / band 4)
Wireless security WPA/WPA2-PSK/WPA3 encryption
5G network type:
N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N75/N77/N78
4G:
FDD-LTE: B1 / B3 / B5 / B7 / B8 / B20 / B28 / B32
TDD-LTE: B38 / B40 / B41 / B42 / B43
3G:
DC-HSDPA, HSPA+, HSDPA, HSUPA, WCDMA B1/B5/B8
Mesh technology 802.11k/v/r, supports EasyMesh
SOFTWARE FEATURES
Operating mode 5G/4G/3G, Wi-Fi router
Multiple SSIDs 3 more 2.4 GHz / 5 GHz network
Features Parental control, QoS (quality of service), address
Reservation, port forwarding, dynamic DDNS, SIM
Management, SMS, Cloud Upgrade, EasyMesh, VoLTE, IPTV,
IPv6, NAT forwarding, firewall, LED management, network
Diagnostics, CWMP, SNMP, traffic statistics, WPS, 1024-QAM,
OFDMA, IPSEC VPN, web remote control panel
WAN type Dynamic IP/Static IP/PPPoE/L2TP/PPTP
Protocols Supports IPv4 and IPv6
OTHER
Certificate CE, RoHS
Package contents 5G AX3000 WiFi 6 phone router NX511v
1 RJ45 Ethernet cable
1 power adapter
1 RJ11 cable
1 quick start guide
System requirements Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows
7, 8, 8.1, 10, MAC OS, NetWare, UNIX or Linux Internet
Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 or
higher.
Environment Operating temperature: 0 °C ~ 40 °C (32 °F ~ 104 °F)
Storage temperature: -40 °C ~ 70 °C (-40 °F ~158 °F)
Operating humidity: 10% ~ 90% non-condensing
Storage humidity: 5% ~ 90% non-condensing
