The Teltonika RUT956 is an industrial router that combines cellular, Wi-Fi and wired connectivity options with automatic WAN failover and GNSS capabilities. Serial communication interfaces allow more diverse devices to be integrated into the solution ecosystem, while I/O and advanced RutOS software enable equipment control, automation and event notification.
The Teltonika RUT956 is a 4G LTE router with I/O ports, RS232 and RS485. This makes it very suitable for M2M. Moreover, it has both wireless and fixed Ethernet connections and can both transmit and receive WiFi (WiFi as WAN). The RUT956 is the successor to the bestselling Teltonika RUT955. The RUT956 features all the best features of the RUT955. In addition, the RUT956 has a faster CPU, Mediatek MIPS 24Kc 580 MHz.
Features Teltonika RUT956:
4G LTE and WiFi
Cat. 4 router with download speeds up to 150 Mbps
1x Wan port and 3x Lan port
Failover

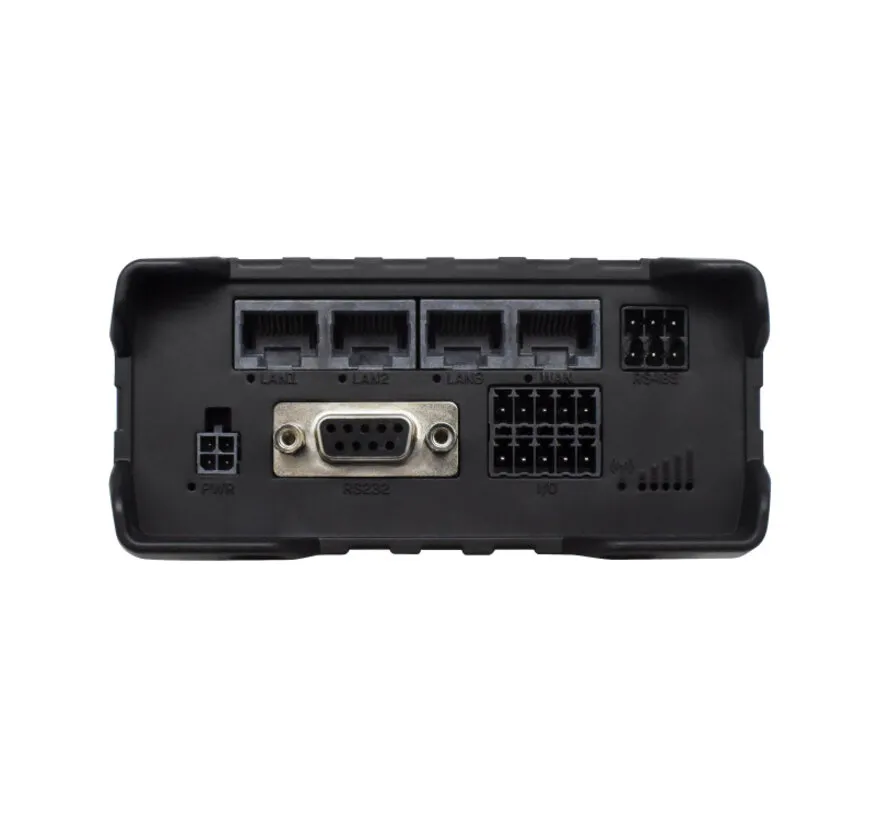

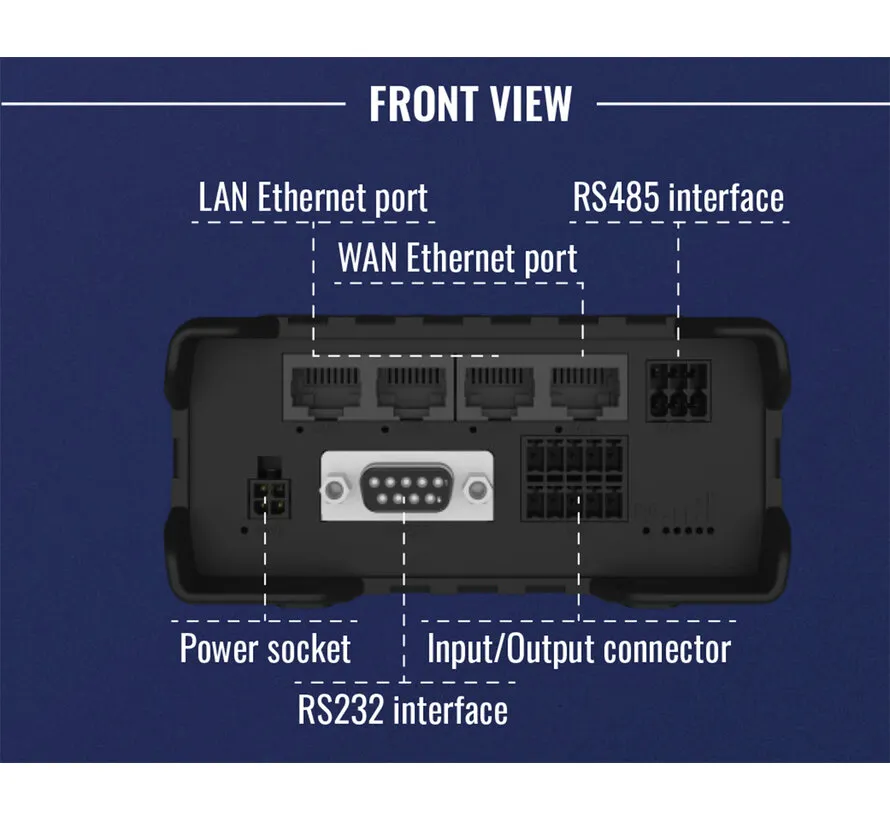

I/O ports: RS232 and RS485
Remote Management System
Suitable for Machine-2-Machine (M2M)
I/O ports, RS232 and RS485
With its I/O ports, RS232 and RS485, the RUT956 is ideally suited for M2M applications.

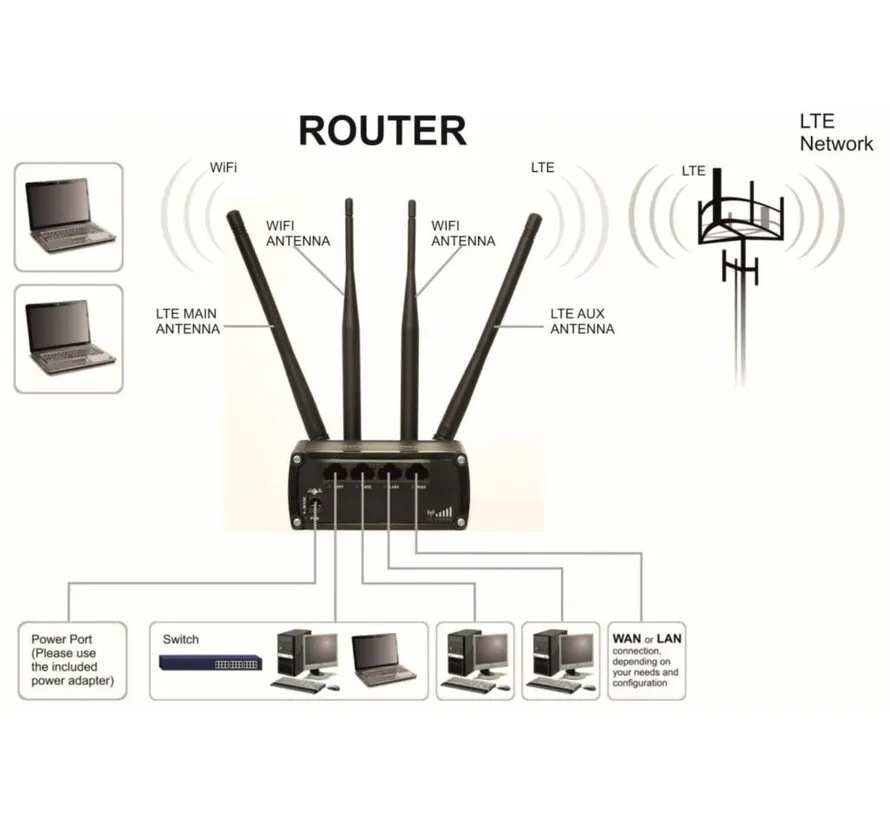

WAN failover: internet backup in emergencies
Because of its WAN port, this 4G LTE router can be connected to the fixed internet line and serve as a “normal” router. If there are problems with the landline, the RUT956 can automatically switch to 4G LTE and then continue working as usual (Failover function). An ideal Internet backup in emergency situations.

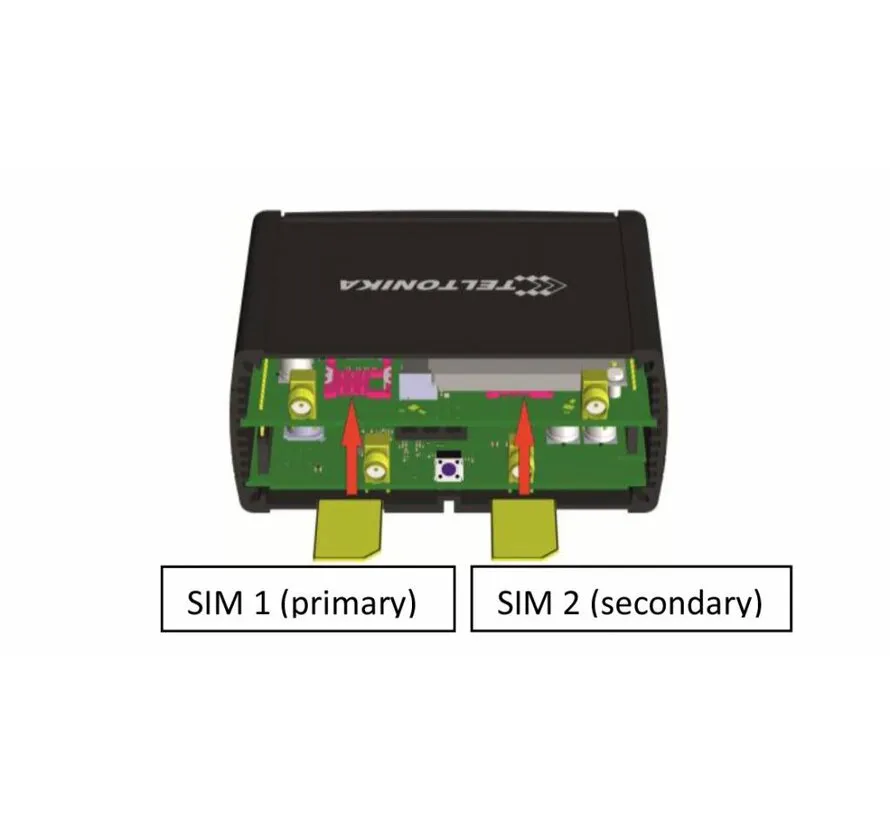

Dual-SIM failover: always connected
The RUT956 is equipped with a dual-SIM. This allows you to switch between 2 providers if the network fails. Because 2 SIM cards fit in the RUT956, you can switch providers if the network fails.

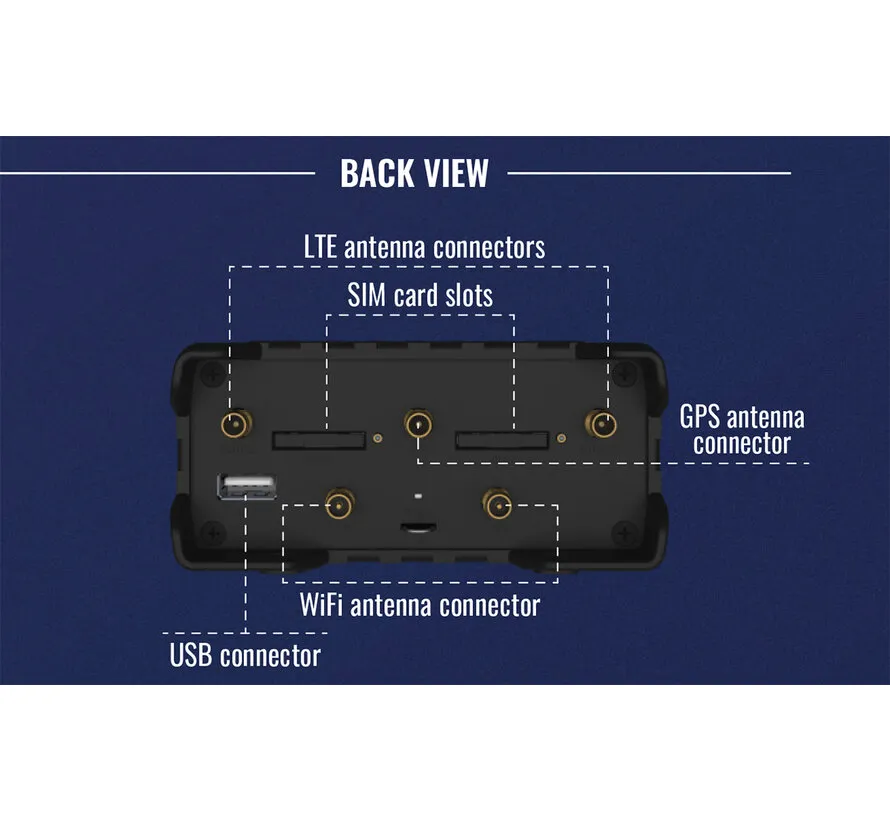

5 external antennas: always reception
Thanks to the included external antennas, you will always receive the best available GPS, 4G LTE and WiFi signal.
Many features of the Teltonika RUT956
This M2M 4G LTE router is equipped with many features including VPN (IPSec, PPTP, OpenVPN), Wifi as WAN, DynDNS, etc.
Connect directly to battery or power supply
The RUT956 comes with a 2-pin terminal block power connector. This allows you to connect the 4G LTE router directly to a battery or other power supply.
Specifications of the Teltonika RUT950:
Aantal SIM-sloten |
2 |
---|---|
Aantal modems |
1 |
Cloud Management |
Yes |
Color |
Black |
Dimensions in mm |
110x50x100 |
Downloadsnelheid |
150 |
EAN-code |
4779051840175 |
Ext. 4G antenna |
2 |
Ext. GPS antenna |
1 |
Ext. WIFI antenna |
2 |
Failover |
Yes |
I/O poorten |
Yes |
IP Rating |
IP30 |
LAN poorten |
3 |
LTE Category |
Cat 4 |
Load Balacing |
Yes |
Merk |
Teltonika |
Mobiele netwerken |
2G, 3G, 4G |
Modbus |
Yes |
RS232 |
Yes |
RS485 |
Yes |
Region |
EMEA |
USB port |
Yes |
Uploadsnelheid |
50 |
VPN connection |
Yes |
WAN poorten |
1 |
WIFI |
Yes |
WIFI Frequency Band |
2.4 Ghz |
WIFI Type |
WiFi 4 |
Weight (gram) |
287 |
