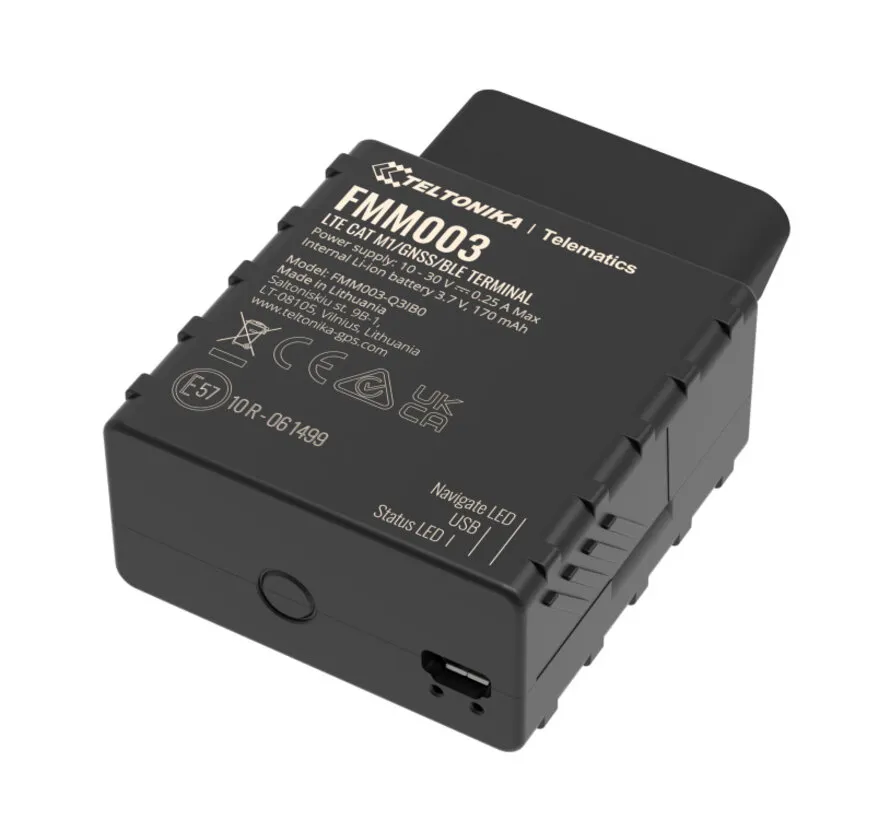

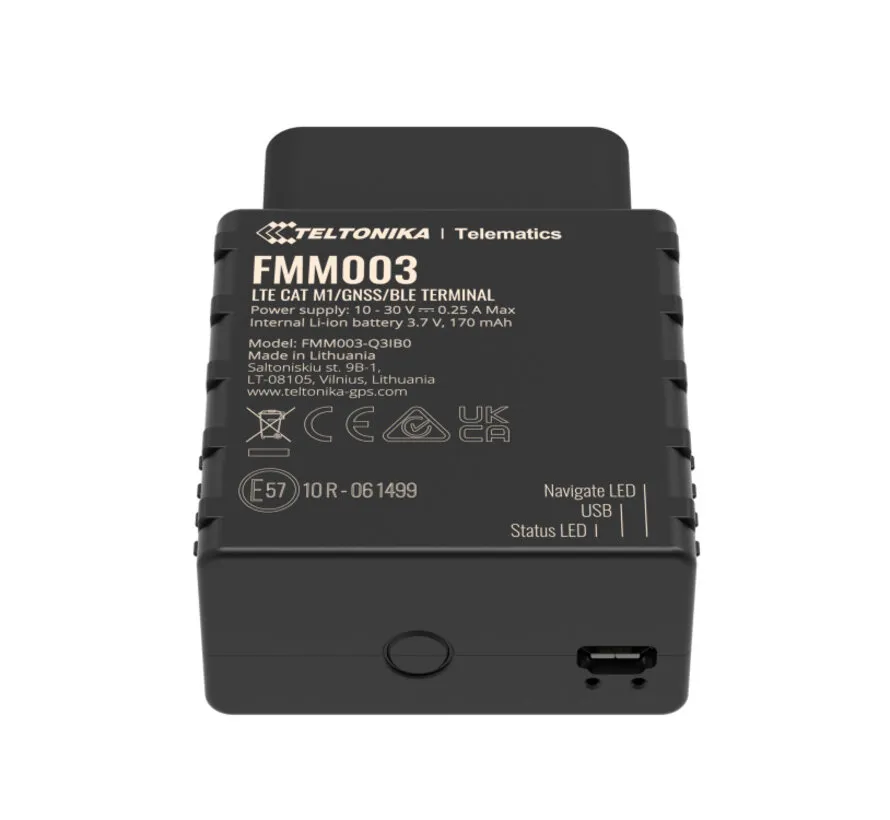

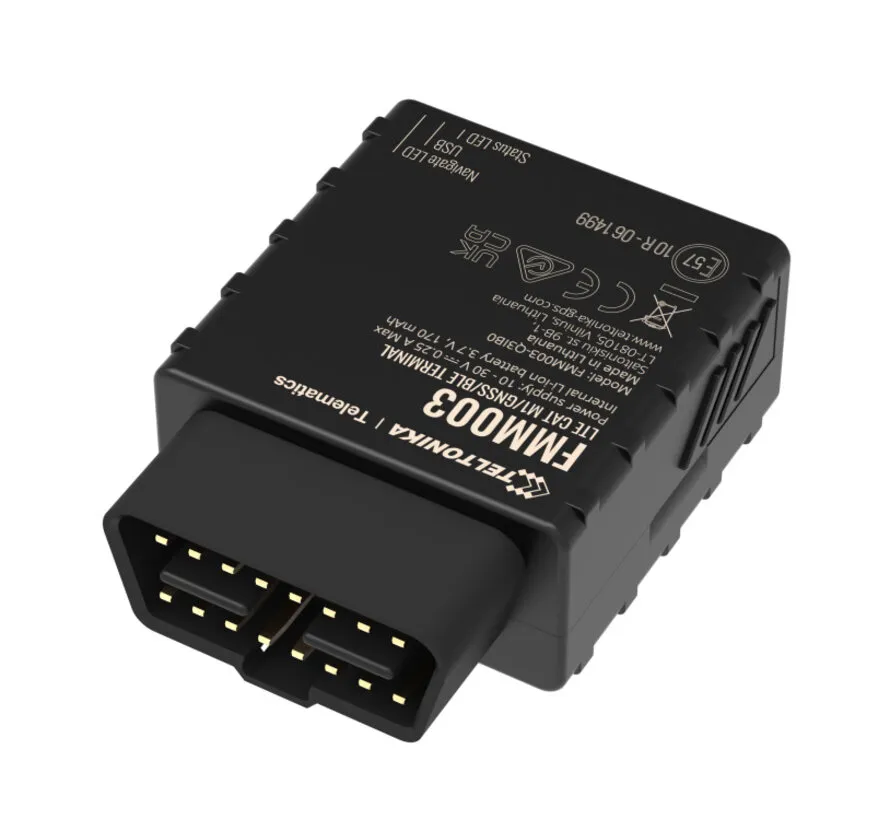

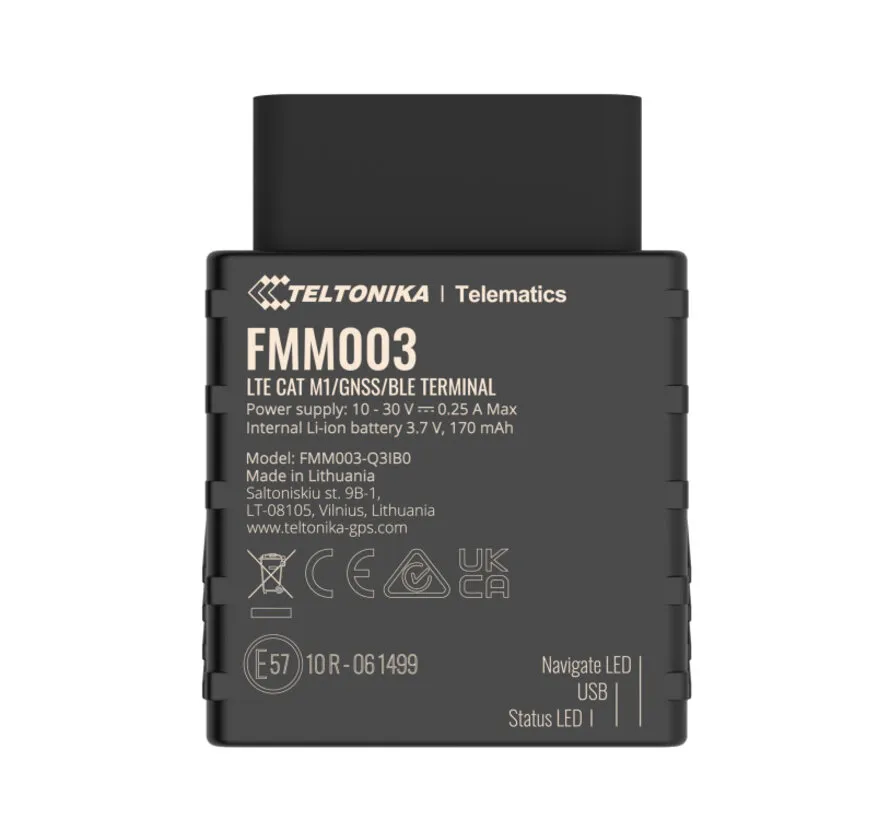

The Teltonika FMM003 is a compact plug-and-play OBD GPS tracker for vehicles. The tracker plugs directly into the OBDII port and is suitable for vehicle tracking, fleet management, driver logbook, car rental, leasing and connected-car applications.
The FMM003 uses LTE Cat M1 network coverage with 2G fallback and supports GNSS positioning and Bluetooth 4.0 + LE. Via the OBD port, the device can read standard OBDII data and, depending on vehicle support, OEM data such as real odometer and real fuel level.
Key features
- Plug-and-play OBDII GPS tracker
- 4G LTE Cat M1 with 2G GSM fallback
- OBD/OEM data reading via the vehicle ECU
- Supports Real Odometer and Real Fuel Level, depending on vehicle compatibility
- GNSS positioning for vehicle location
- Bluetooth 4.0 + LE for sensors, beacons and configuration
- Internal GNSS and GSM antennas
- Micro-SIM slot
- USB 2.0 Micro-USB interface
- Internal 170 mAh backup battery
- Suitable for fleet management, driver logbook, rental, leasing and vehicle monitoring
- Compact housing for direct installation in the OBDII port
- No installer required for standard OBDII plug-in mounting
Product specifications
Brand: Teltonika Telematics
Model: FMM003
Article number: FMM003 / FMM0037FNJ01
Product type: 4G LTE Cat M1 OBDII GPS tracker / telematics tracker
Application: Vehicle tracking, fleet management, driver logbook, rental, leasing and connected-car data
Compatibility: Vehicles with a suitable OBDII port; readable OEM data depends on vehicle model support
Mobile network: LTE Cat M1 with 2G GSM fallback
GNSS: GPS, GLONASS, Galileo, BeiDou, SBAS, QZSS, DGPS and AGPS according to datasheet
Bluetooth: Bluetooth 4.0 + LE
Vehicle connection: OBDII socket
OBD data: Standard OBDII data and OEM parameters, depending on vehicle support
Important OBD/OEM data: Real Odometer, Real Fuel Level and vehicle parameters, depending on vehicle
SIM: Micro-SIM
USB: USB 2.0 Micro-USB
Internal antennas: GNSS and GSM
Voltage: 10–30 V DC with overvoltage protection
Backup battery: 170 mAh Li-Ion, 3.7 V, 0.63 Wh
Dimensions: 67.2 x 49.6 x 25 mm
