Lowrance StructureScan 3D stainless steel thru-hull transducer with Medium/High CHIRP

Delivery time between 2 and 5 working days

  • Article code: 000-14255-001

Lowrance StructureScan 3D thru-hull transducer with Medium/High CHIRP, SideScan and DownScan. Stainless steel construction, 500 W and 6 m cable. A separate StructureScan 3D module is required for 3D imaging.

€ 1.611,57 Excl. BTW Free shipping

€ 1.950,- incl. BTW

Add to wishlist

  • 14 dagen niet goed geld terug garantie
  • Gratis verzending
  • 2 jaar garantie op je StructureScan 3D stainless steel thru-hull transducer with Medium/High CHIRP
  • Klanten beoordelen ons met een 9.2

Product description

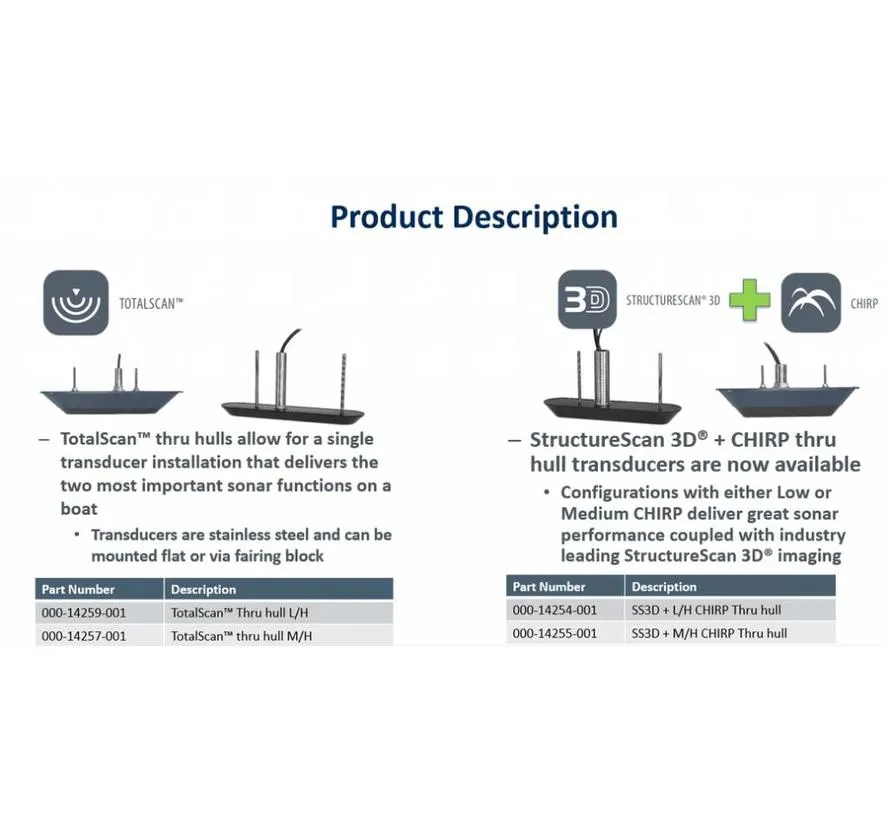

The Lowrance StructureScan 3D M/H is a multifunction stainless steel thru-hull transducer combining StructureScan 3D imaging with Medium/High CHIRP and traditional sonar.

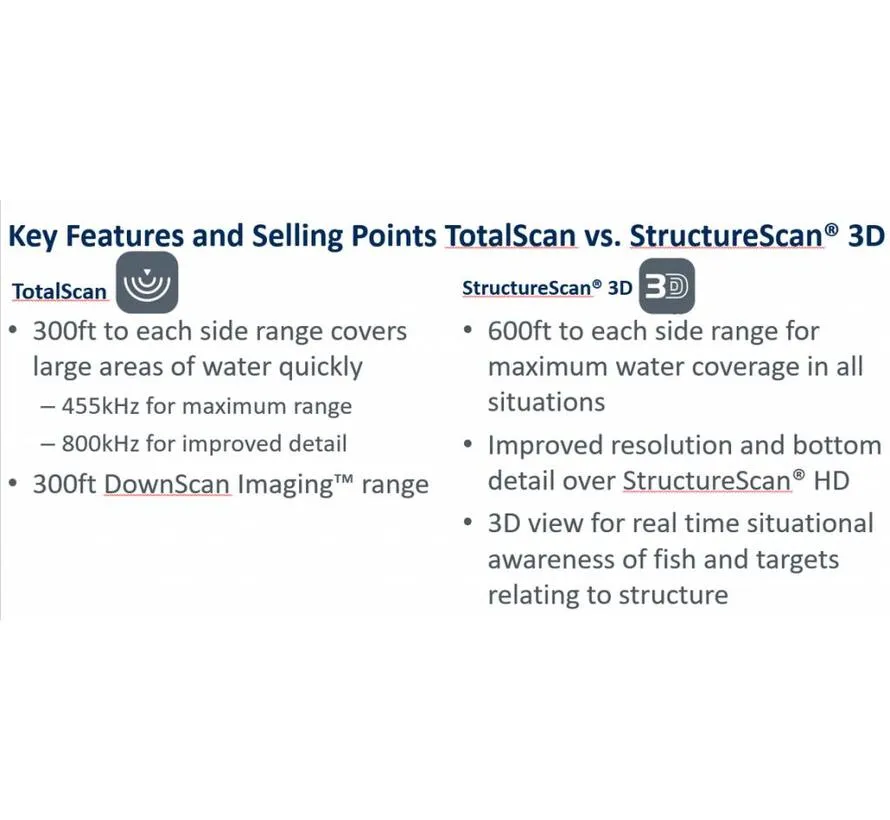

It provides CHIRP sonar together with StructureScan 3D, SideScan and DownScan capabilities. Lowrance specifies StructureScan coverage of up to approximately 180 m / 600 ft on each side of the boat.

Product specifications:

  • Brand: Lowrance
  • Model: StructureScan 3D M/H Through-Hull
  • Part number: 000-14255-001
  • EAN: 9420024169353
  • Product type: thru-hull sonar transducer
  • Sonar technologies: StructureScan 3D, SideScan, DownScan, CHIRP and traditional sonar
  • CHIRP range: Medium/High CHIRP
  • Power: 500 W
  • StructureScan side range: up to approx. 180 m / 600 ft per side
  • Material: stainless steel
  • Installation: thru-hull
  • Deadrise: flat mounting or up to approximately 5° with supplied fairing block
  • Cable length: 6 m / 20 ft
  • Water temperature: yes
  • Speed sensor: no
  • NMEA 0183: not applicable
  • NMEA 2000: no direct NMEA 2000 connection
  • Manufacturer warranty shown by Lowrance: 1 year

Cable:

Lowrance's official product documentation specifies a 6 m / 20 ft cable for part 000-14255-001.

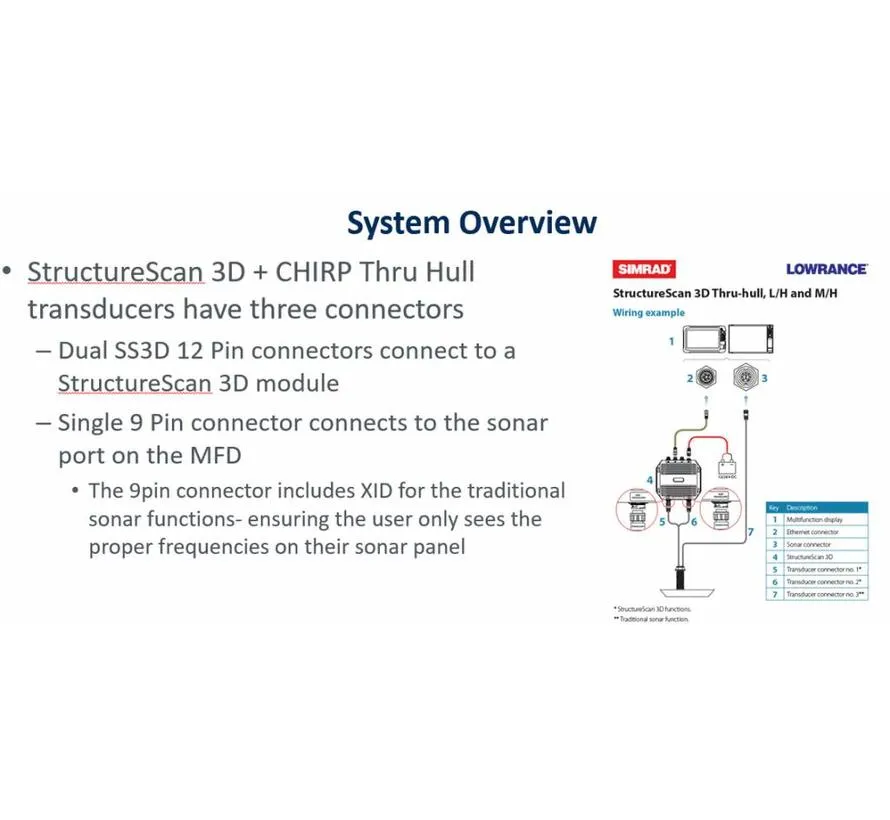

Connections:

  • StructureScan 3D connectors to StructureScan 3D module
  • CHIRP connector for compatible MFD/sonar connection
  • XID identification on the CHIRP connection

The StructureScan 3D module is required for StructureScan 3D imaging and is sold separately.
