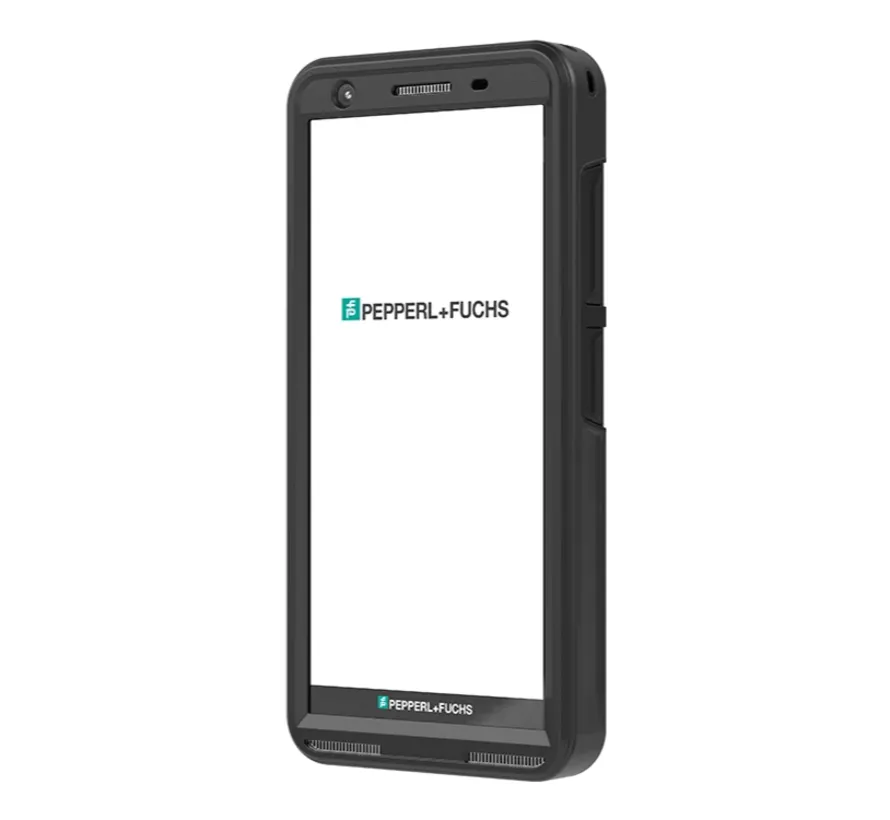

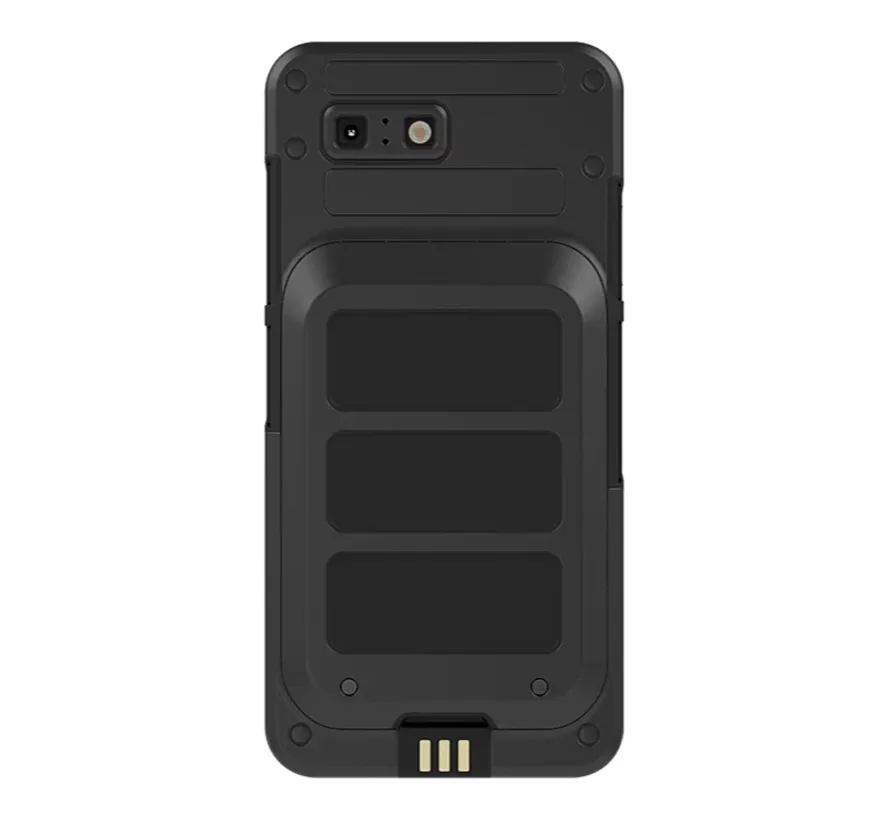

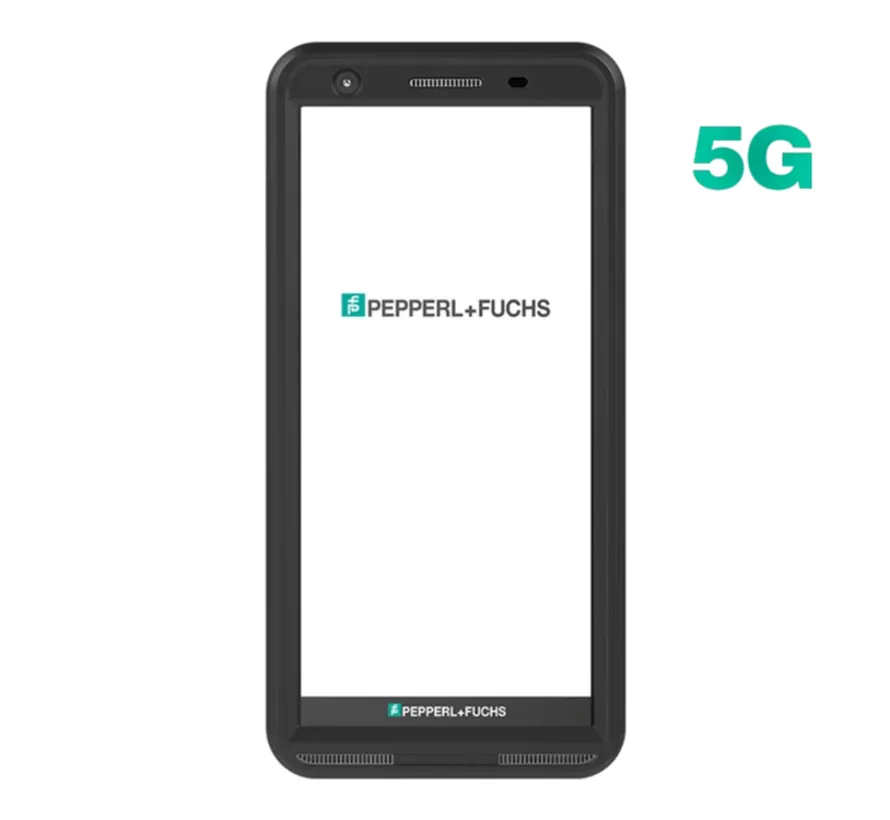

This Ecom smartphone is designed for safe mobile communication and digital workflows in Zone 2/22 and Div 2 areas. It combines 5G connectivity, a 13 MP camera, 128 GB storage, and a 6-inch display in a rugged design for industrial environments where reliable communication, inspection, and data handling are essential.
Within the Smart-Ex 03 range, this is the DZ2 version with camera. That makes it suitable for inspection rounds, photo documentation, work orders, remote support, and on-site communication. The combination of Android 15, dual SIM, NFC, GPS, and Wi-Fi / Bluetooth / 5G makes it suitable for modern industrial apps and connected workflows.
Product specifications
- Brand: Ecom / Pepperl+Fuchs
- Article code: Smart-Ex 03 DZ2
- Product type: intrinsically safe 5G smartphone with camera
- Application: mobile communication, inspection, photo and video capture in hazardous areas
- Hazardous-area rating:
- ATEX Zone 2/22
- Class I Division 2
- Operating system: Android 15
- Storage capacity: 128 GB
- RAM: 8 GB
- Main camera: 13 MP with LED flash and phase detection autofocus
- Front camera: 5 MP
- Video resolution: 1080p, 720p, 480p
- Display: 6 inch
- Resolution: 1080 x 2160
- Screen protection: Gorilla Glass, shock and scratch resistant
- Operation: usable with gloves
- Connectivity:
- 5G NR
- WWAN
- Wi-Fi
- Bluetooth 5.2
- GPS / GLONASS / Galileo / QZSS / BeiDou
- NFC
- SIM: dual SIM (eSIM + nano-SIM)
- Battery: Li-Ion 4400 mAh
- Interfaces:
- USB Type-C
- 3.5 mm audio
- charging contacts for docking station
- Protection rating: IP68
- Ruggedness: MIL-STD-810H
- Weight: 400 g
- Dimensions: 172 x 84 x 25 / 18 mm
- Extra features:
- programmable hardware buttons
- fingerprint sensor in power button
- Android Enterprise Recommended
- Google ARCore ready
