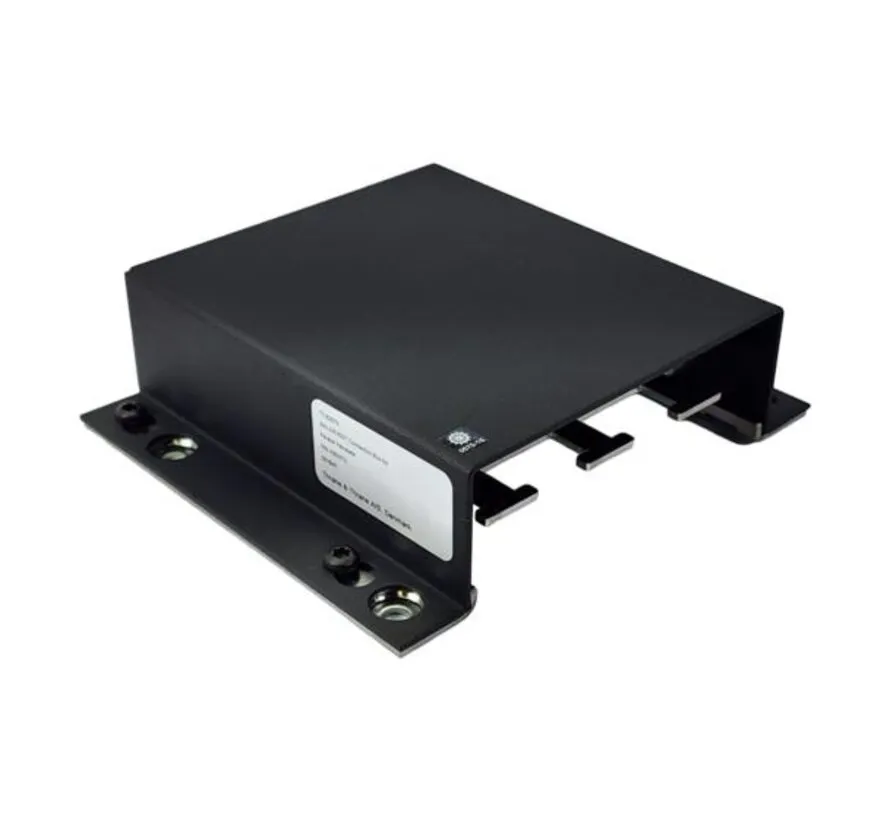

The SAILOR 6207 is a professional accessory connection and distribution box for compatible SAILOR VHF installations.
It is designed to connect additional SAILOR 6201 handsets and external navigation or DSC equipment to the radio system.
Functions
Supports connections for:
- SAILOR 6201 Handset
- Second SAILOR 6201 Handset
- GNSS / GPS via NMEA
- GNSS/AIS DSC modem
- Microphone / line input
- Audio / line output
- Hook / PTT
- Switched supply voltage
Technical specifications
- Brand: SAILOR / Cobham
- Model: SAILOR 6207
- Part number: 406207A
- Product type: Accessory Connection Box
- Application: professional marine VHF systems
- J1: Handset 1
- J2: Handset 2
- J3: VHF 62XX
- 12 terminals per connection group
Package contents

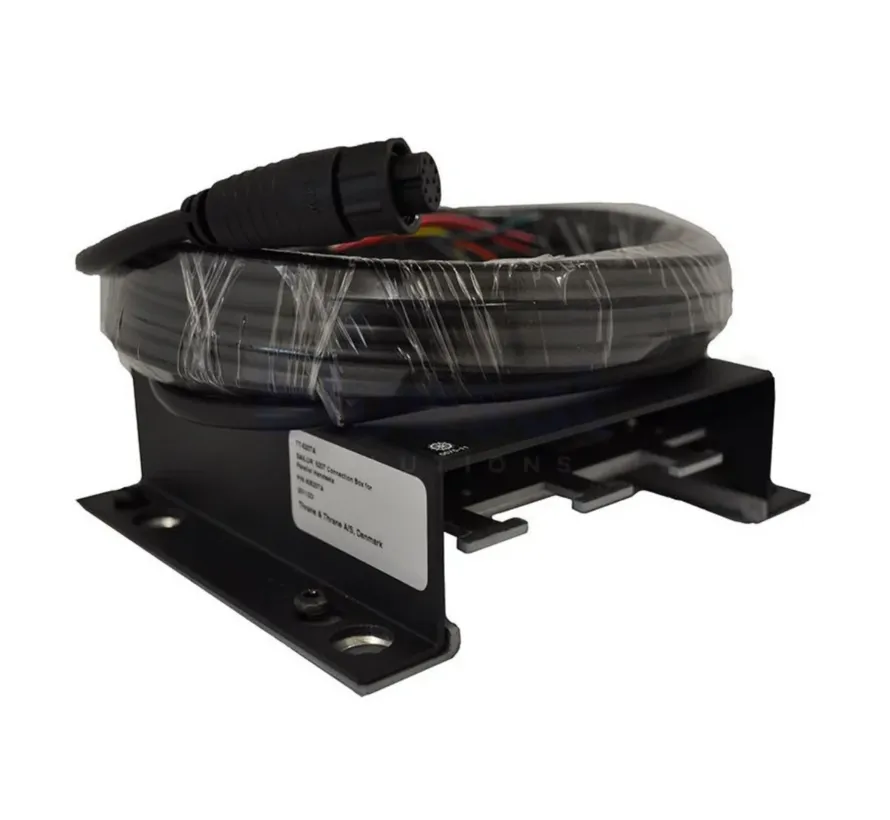

- SAILOR 6207 Connection Box
- SAILOR cable 406209-941
- Cable length: 5 m
Compatibility
Used with systems including:
- SAILOR 6210 VHF
- SAILOR 6217 VHF DSC / AIS Receiver
- SAILOR 6222 VHF DSC
- SAILOR 6248 VHF
- SAILOR 6249 VHF Survival Craft
- SAILOR 7222 VHF DSC Class A
- SAILOR 6201 Handset
Exact functionality depends on the connected SAILOR VHF configuration.
Dimensions
- Width: approx. 140 mm
- Height: approx. 122.5 mm
- Depth: approx. 40.5 mm
Important
- This is the SAILOR 6207, not the SAILOR 6208.
- Designed for parallel handsets and NMEA/GNSS accessories.
- Includes 5 m cable 406209-941.
- Radio, handsets and GNSS equipment not included.
