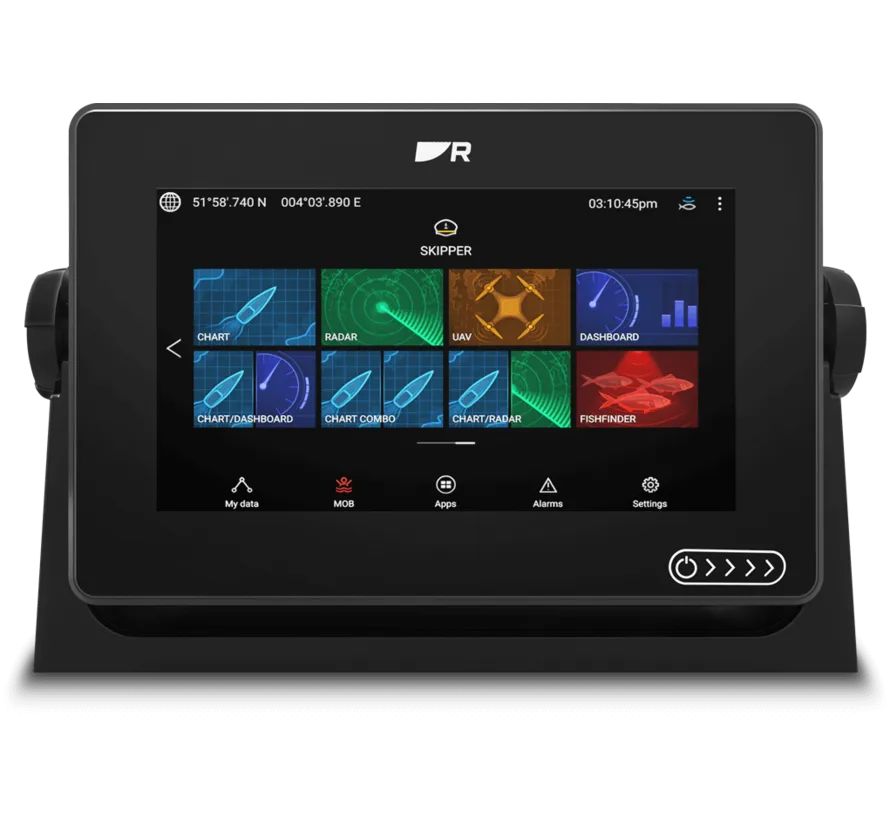

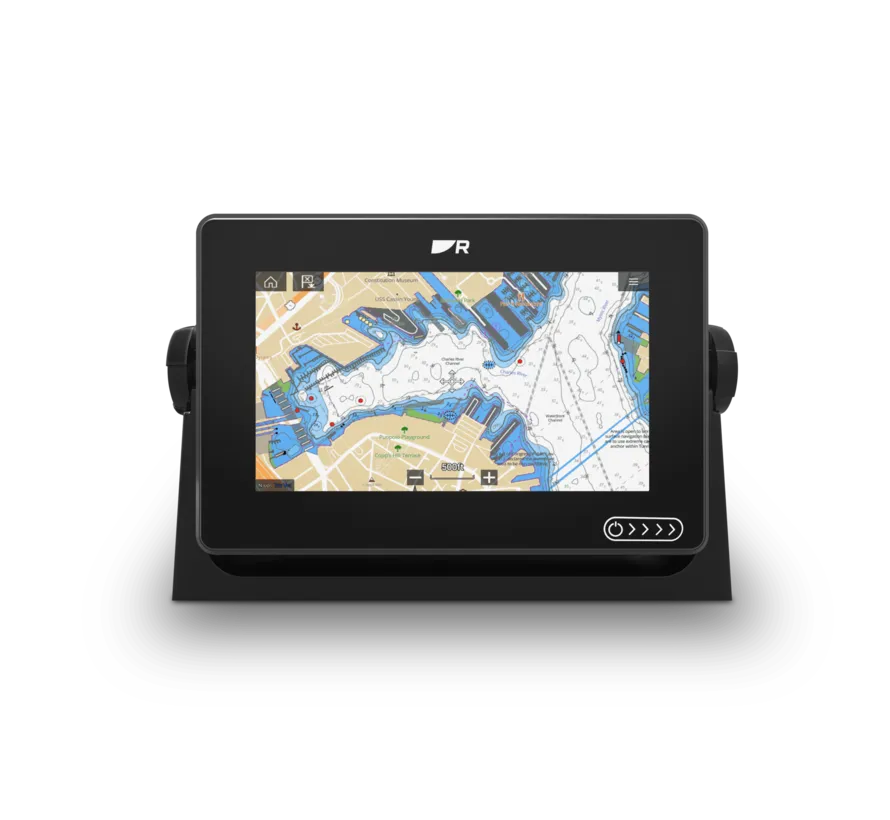

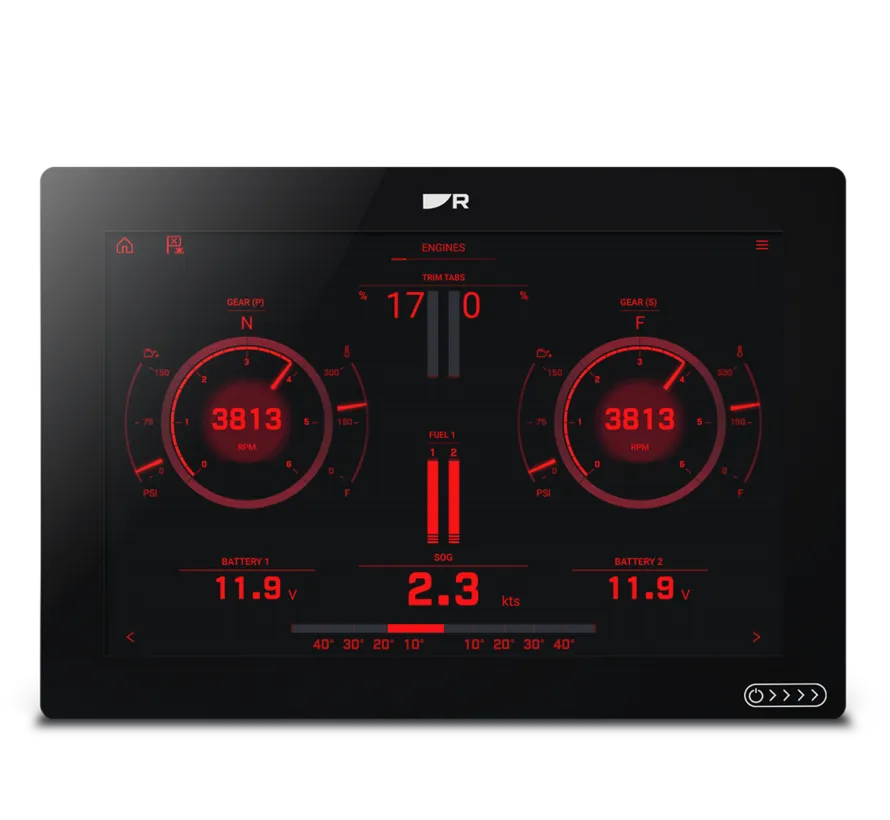

The Raymarine Axiom+ 9 RV E70637-03-WEU is a powerful 9-inch multifunction chartplotter with integrated 600 W RealVision 3D sonar. This complete WEU package includes the RV-100 RealVision 3D transom-mount transducer and a preloaded LightHouse Charts Western Europe chart card.
It also includes a free 1-year LightHouse Charts Premium subscription.
Version:
- Brand: Raymarine
- Series: Axiom+
- Model: Axiom+ 9 RV
- Part number: E70637-03-WEU
- Display size: 9 inch
- RV-100 RealVision 3D transducer: included
- Chart region: Western Europe
- LightHouse Charts Western Europe: included
- Chart media: preloaded chart card
- LightHouse Charts Premium: 1 free year included
- RealVision 3D sonar: built in
- Sonar output: 600 W
Display:
- 9-inch IPS multitouch display
- Resolution: 1280 × 720 pixels
- Brightness: approx. 1500 nits
- Wide viewing angles
- HydroTough display coating
- Multitouch control
Sonar:

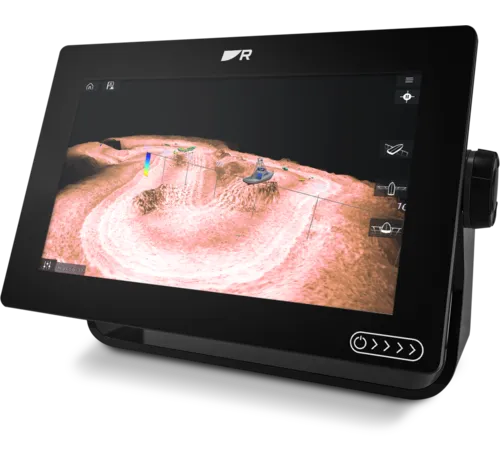

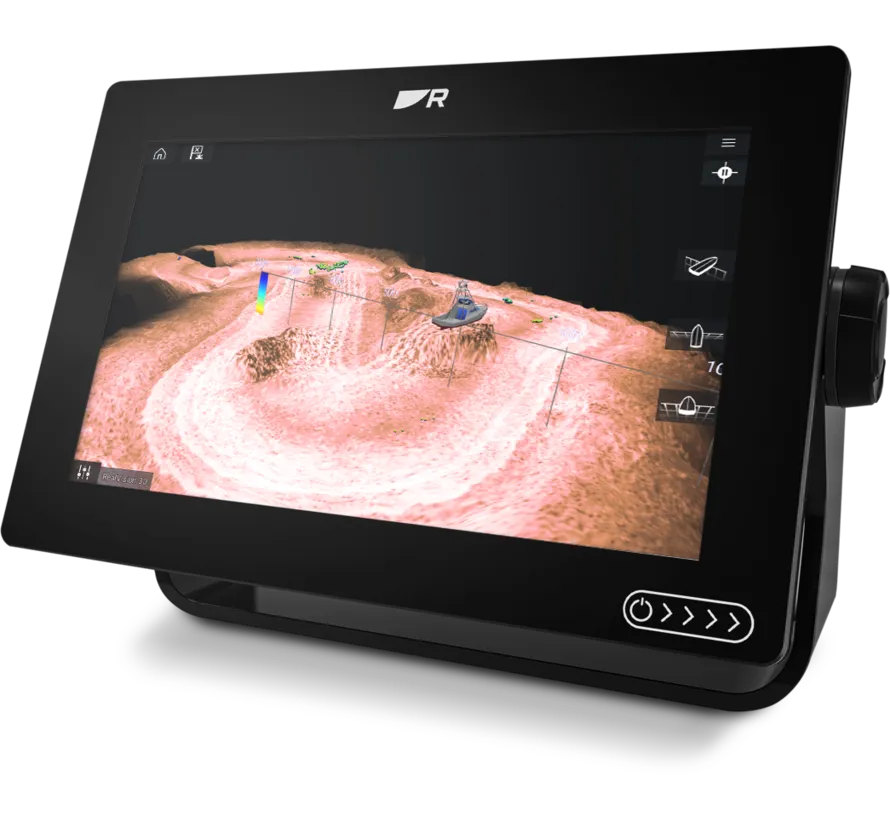

- Integrated 600 W RealVision 3D sonar
- RealVision 3D
- SideVision
- DownVision
- High CHIRP
- Fish and structure imaging
- Water temperature through RV-100
- 25-pin RealVision transducer connection
RV-100 transducer:
- RV-100 RealVision 3D transom-mount transducer included
- Transom mounting
- RealVision 3D
- SideVision
- DownVision
- High CHIRP
- Depth
- Water temperature
- Integrated transducer cable approx. 8 m
- Mounting bracket and hardware included
Navigation:
- Integrated GPS/GNSS receiver
- GPS
- GLONASS
- BeiDou
- SBAS support
- WAAS
- EGNOS
- MSAS
- GAGAN
- QZSS
LightHouse Charts Western Europe:
This E70637-03-WEU version includes a preloaded LightHouse Charts Western Europe chart card.
Western Europe chart coverage includes, among others:
- Netherlands
- Belgium
- Germany
- France
- United Kingdom
- Ireland
- Spain
- Portugal
- Switzerland
- Austria
- Czech Republic
- Slovakia
- Hungary
A free 1-year LightHouse Charts Premium subscription is also included.
Additional chart support:
Depending on chart media and software version, Axiom+ also supports:
- Navionics
- C-MAP
Networking and connections:
- NMEA 2000: yes
- SeaTalkNG via supplied adapter: yes
- 1 × RayNet Ethernet
- Wi-Fi: 802.11 b/g/n
- Bluetooth: 4.0
- microSDXC card slot
- USB Micro-B
- 25-pin RealVision transducer port
Compatible systems:
- Raymarine Quantum radar
- Raymarine network radar
- Evolution autopilot
- AIS
- NMEA 2000 engine data
- IP cameras
- FLIR thermal cameras
- Marine audio systems

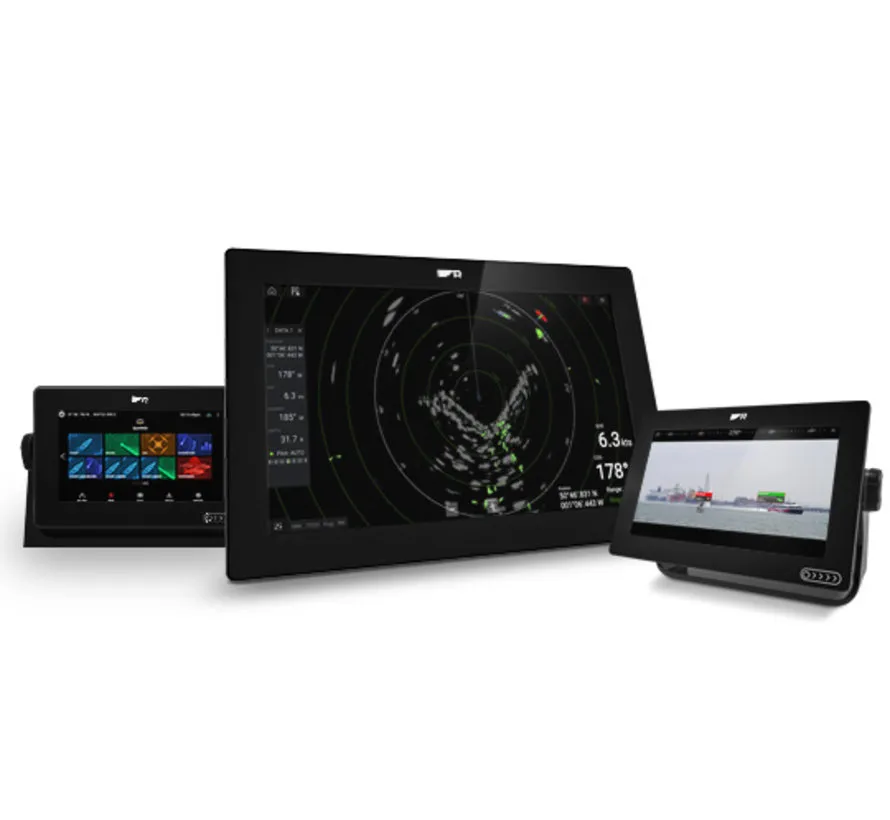

- Additional Axiom displays
Power:
- Nominal voltage: 12 V DC
- Operating voltage: 8–16 V DC
- Power consumption: approx. 11.98 W
- Recommended fuse: 7 A
- NMEA 2000 LEN: 1
Environmental:
- Waterproof rating: IPX6 / IPX7
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -30 °C to +70 °C
Included:
- 1 × Raymarine Axiom+ 9 RV display
- 1 × RV-100 RealVision 3D transom-mount transducer
- 1 × preloaded LightHouse Charts Western Europe chart card
- 1-year LightHouse Charts Premium subscription
- RV-100 mounting bracket and hardware
- Display mounting bracket
- Mounting knobs
- Sun cover
- Panel-mount gasket
- Rear mounting brackets
- Power/NMEA 2000 cable
- DeviceNet-to-SeaTalkNG adapter
- Documentation
Important:
E70637-03-WEU is the complete Western Europe package. Compared with the standard E70637-03 version, it additionally includes the LightHouse Charts Western Europe chart card and a free 1-year LightHouse Charts Premium subscription
Datasheet Raymarine Axiom+ 9 Realvision 3D.
