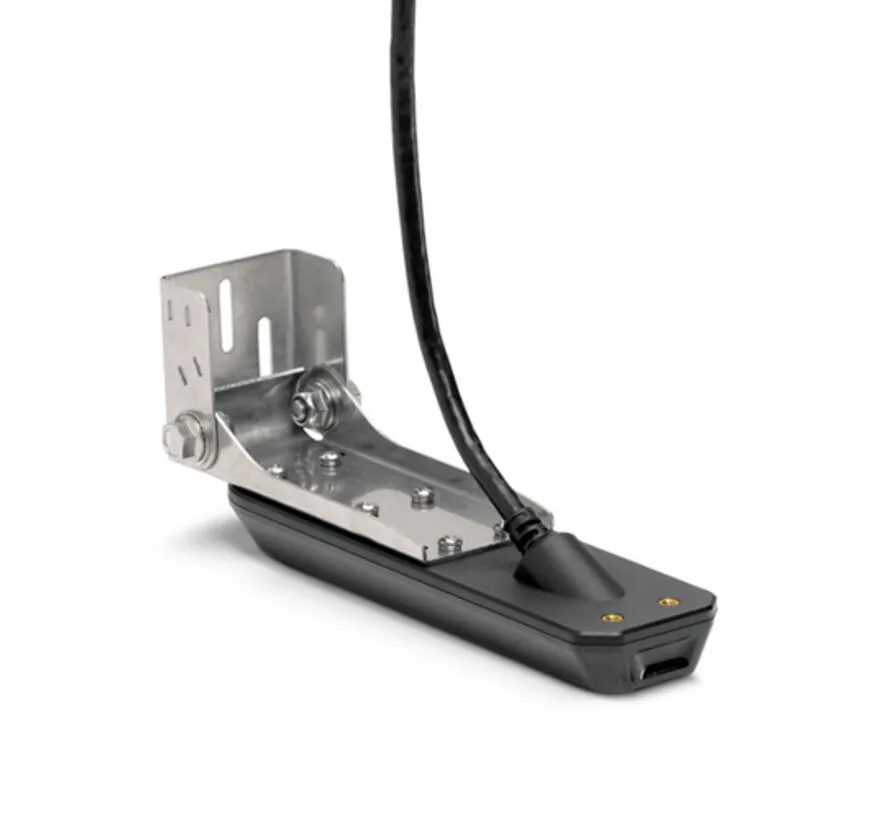

The Humminbird XM 14 HW MSI T is a high-performance transom-mount transducer designed for compatible Humminbird fishfinders and multifunction displays.
It combines:
- MEGA Side Imaging+
- MEGA Down Imaging+
- Dual Spectrum CHIRP 2D sonar
- Built-in water temperature sensor
Technical specifications
- Brand: Humminbird
- Model: XM 14 HW MSI T
- Product code: 710292-1
- EAN: 0082324053252
- Type: transom-mount transducer
- Sonar: Dual Spectrum CHIRP and MEGA Imaging+
- Temperature sensor: built in
- Cable length: 20 ft / approximately 6.1 m

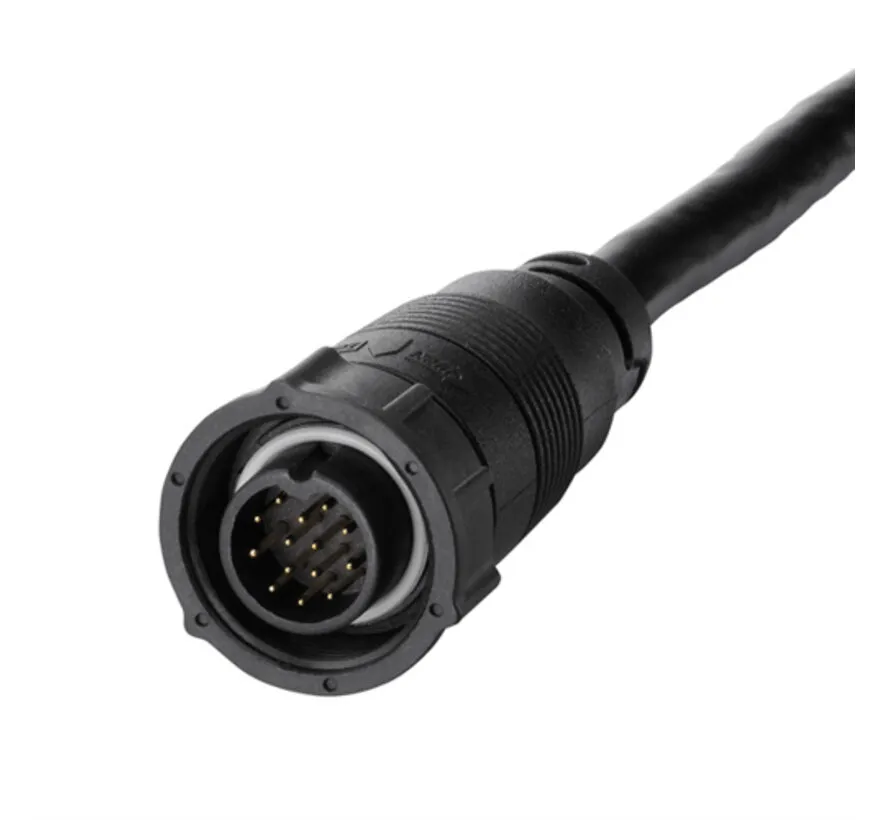

- Connector: Humminbird 14-pin
- Manufacturer warranty: 1 year
Dual Spectrum CHIRP
- Full: 150-220 kHz
- Narrow: 180-240 kHz
- Wide: 140-200 kHz
- Maximum depth: approximately 1,200 ft / 365 m
MEGA Side Imaging+
- 455 kHz: 440-500 kHz – up to approximately 800 ft / 244 m
- 800 kHz: 790-850 kHz – up to approximately 250 ft / 76 m
- MEGA SI+: 1075-1150 kHz – up to approximately 400 ft / 122 m
MEGA Down Imaging+
- 455 kHz: 440-500 kHz – up to approximately 400 ft / 122 m
- 800 kHz: 790-850 kHz – up to approximately 250 ft / 76 m
- MEGA DI+: 1075-1150 kHz – up to approximately 200 ft / 61 m
Compatibility
Officially compatible with:
- All Humminbird XPLORE models
- All Humminbird APEX models
- SOLIX MEGA SI+ G2 models
- SOLIX MEGA SI+ G3 models
Including:
- APEX 13
- APEX 16
- APEX 19
- APEX 19 MSI+

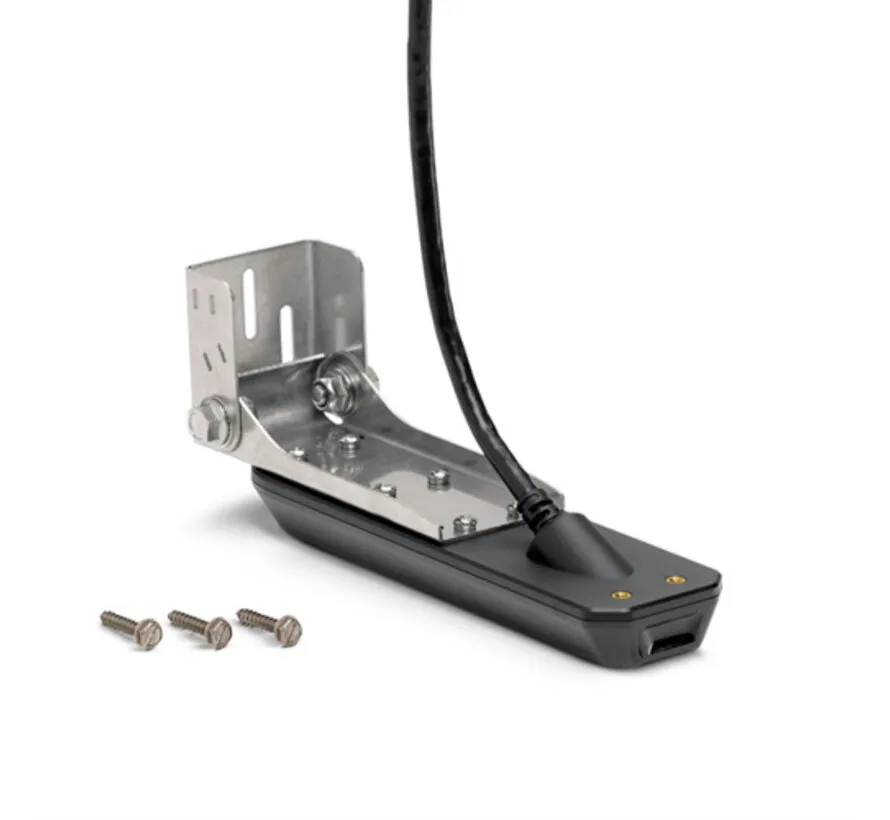

Package contents
- XM 14 HW MSI T transducer
- Built-in temperature sensor
- 20 ft / 6.1 m cable
- Transom mounting hardware
- Installation instructions
Important
- Fishfinder/display not included.
- Designed for transom mounting.
- Not a thru-hull transducer.
- Maximum ranges depend on installation, water conditions and bottom composition.
- Verify connector compatibility before replacing an existing transducer.
