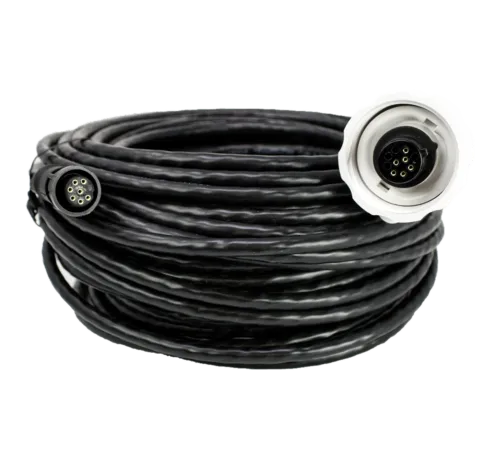

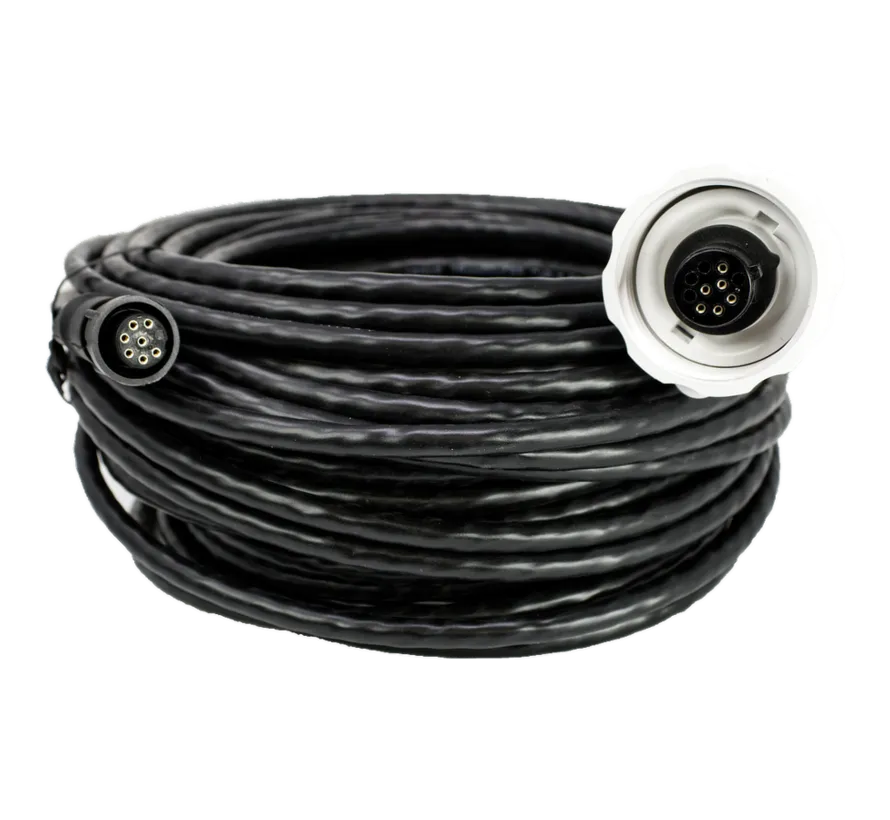

The Airmar WS-C series consists of genuine NMEA 0183 connection cables for selected Airmar WeatherStation instruments, GPS sensors and heading sensors.
The cables feature a dedicated Airmar sensor connector on one side and an 8-pin Airmar connector on the equipment side.
The WS-C series is available in several lengths to suit different onboard installations. WS-C01, WS-C15, WS-C25, WS-C35 and WS-C45 are available in lengths of 1, 15, 25, 35 and 45 metres respectively.
The cables support NMEA 0183 communication and are compatible with selected products including the Airmar WS-120WX, WS-220WX, H2183 and GH2183.
For certain installations, the 8-pin equipment connector can be removed when bare-wire connection is required. Always follow the wiring diagram of the connected equipment.
Key features
• Genuine Airmar connection cable
• Designed for Airmar WeatherStation instruments and sensors
• NMEA 0183 communication
• Dedicated Airmar sensor connector
• 8-pin Airmar equipment connector
• Available in multiple cable lengths
• Suitable for fixed marine installations
• Compatible with selected WeatherStation sensors
• Compatible with selected heading and GPS sensors
• Connector may be removed for suitable bare-wire installations
• Not an NMEA 2000 cable
• Not a Furuno 7-pin version
Product specifications
• Brand: Airmar
• Series: WS-C
• Product type: NMEA 0183 WeatherStation connection cable
• Communication standard: NMEA 0183
• Sensor connector: 9WS
• Equipment connector: 8WS
• Connector type: Airmar 8-pin WS
• Compatible with Airmar WS-120WX: yes
• Compatible with Airmar WS-220WX: yes
• Compatible with Airmar H2183: yes
• Compatible with Airmar GH2183: yes
• NMEA 2000: no
• Furuno 7-pin: no
• Application: connection between Airmar sensor and NMEA 0183 equipment
• Use: marine installation
• Colour: generally black
• Country of origin: USA
• Power: depends on the connected sensor and installation
• Waterproof rating: not reliably specified separately for the cable
• Check before ordering: verify the exact sensor model, required cable length, connector and NMEA protocol
Airmar WS-120WX weerstation
Airmar WS-220WX weerstation
Airmar H2183 koerssensor
Airmar GH2183 GPS- en koerssensor
Airmar 300WX
Cable type: WS-C01, WS-C15, WS-C25, WS-C35, WS-C45
