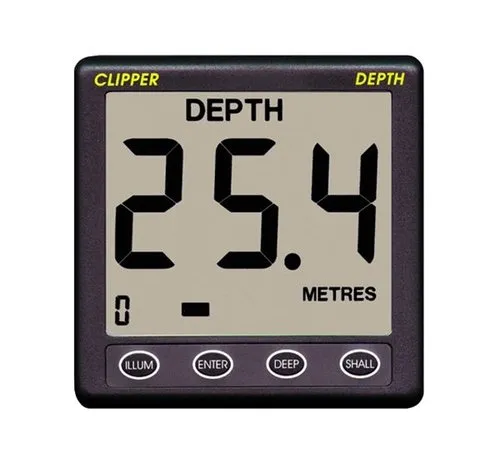

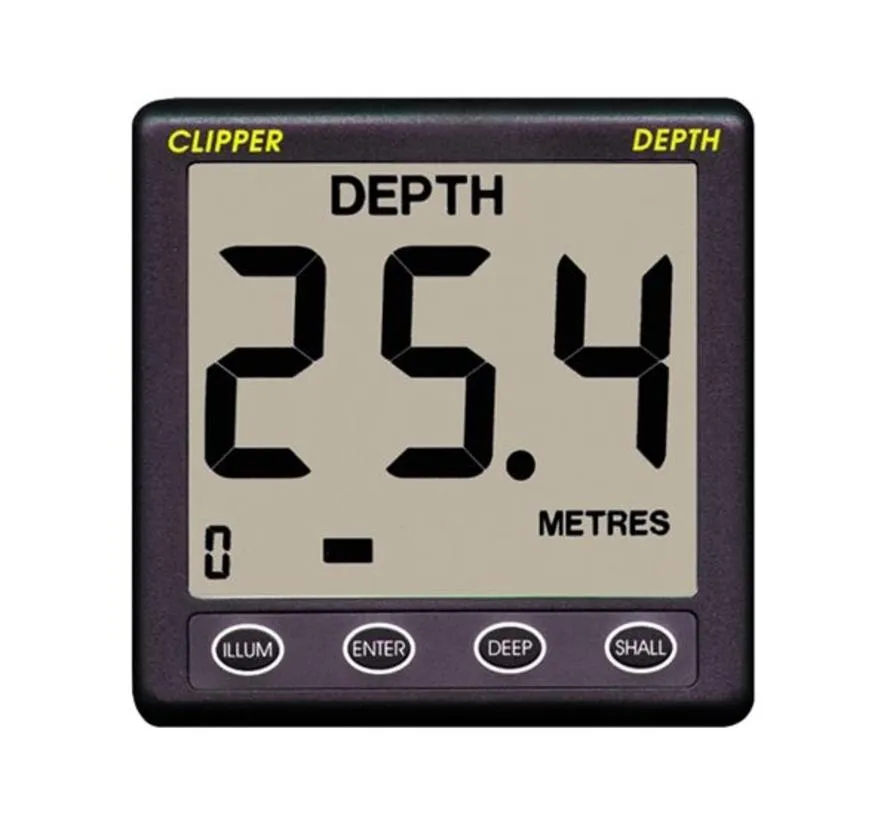

The NASA Marine Clipper Depth Repeater is an additional display for the Clipper Depth system. It repeats the depth data from the master unit and is ideal for a second helm, cockpit, cabin or navigation panel.
This repeater is not a complete depth sounder system and is supplied without a transducer. The unit connects to the existing Clipper Depth master unit and receives both power and signal through the supplied cable. The repeater has its own deep and shallow alarm functions with audible and visual warning.
Key features
- Additional display for NASA Marine Clipper Depth
- Repeats depth data from the master unit
- Suitable as a second readout position onboard
- Independent deep and shallow alarms
- Audible and visual alarm function
- Red display backlight
- 7 levels of display backlighting
- Powered through the master unit
- No separate transducer required
- Compact Clipper 110 x 110 mm format
- Suitable for boats, sailing yachts, motorboats and cabin installations
- Not suitable as a standalone depth sounder system
Product specifications
- Brand: NASA Marine
- Product name: Clipper Depth Repeater
- Manufacturer number: CLIP-DEPREP
- Supplier article: 00440808
- Product type: depth repeater / secondary display
- Instrument type: depth gauge, secondary display
- Suitable for: NASA Marine Clipper Depth system
- Display option: depth
- Alarms: deep and shallow alarms
- Alarm type: audible and visual
- Operating voltage: 12 V
- Power consumption: approx. 10 mA + 25 mA for backlight
- Backlight: red
- Lighting: 7 levels

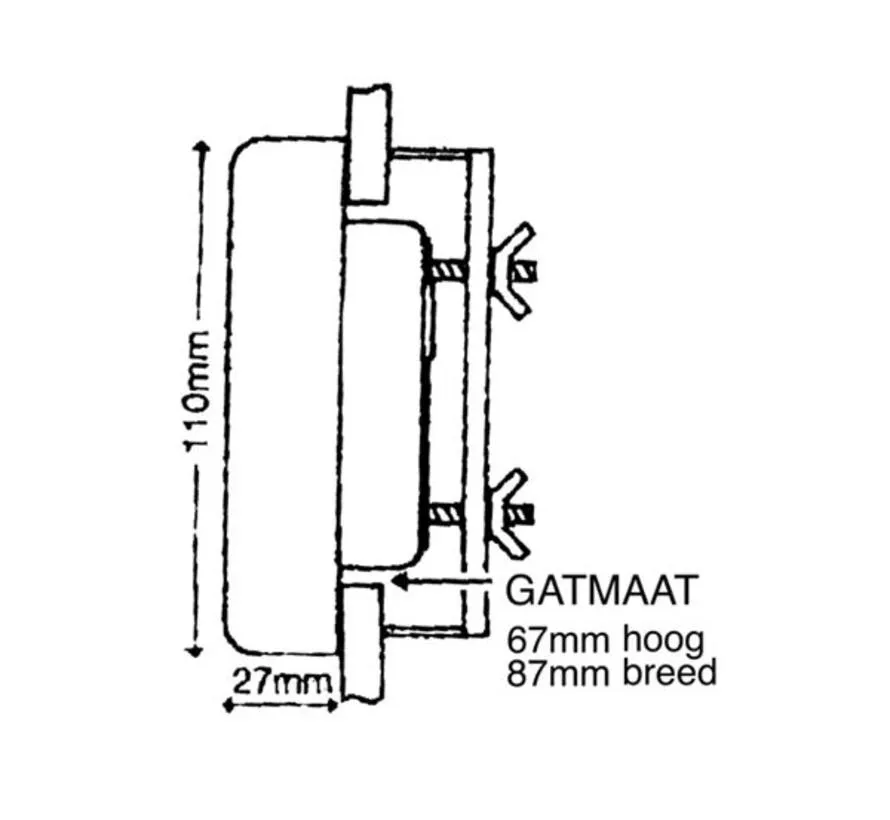

- Display dimensions: 110 x 110 x 27 mm
- Cut-out dimensions: 87 x 67 mm
- Cable: 5 metre cable according to NASA Marine
- Supplied with: repeater display, cable, O-ring and weather cover
- Not included: transducer
- NMEA 2000: no
- NMEA 0183: no
- Application: second depth readout on boat, cockpit, helm or cabin
