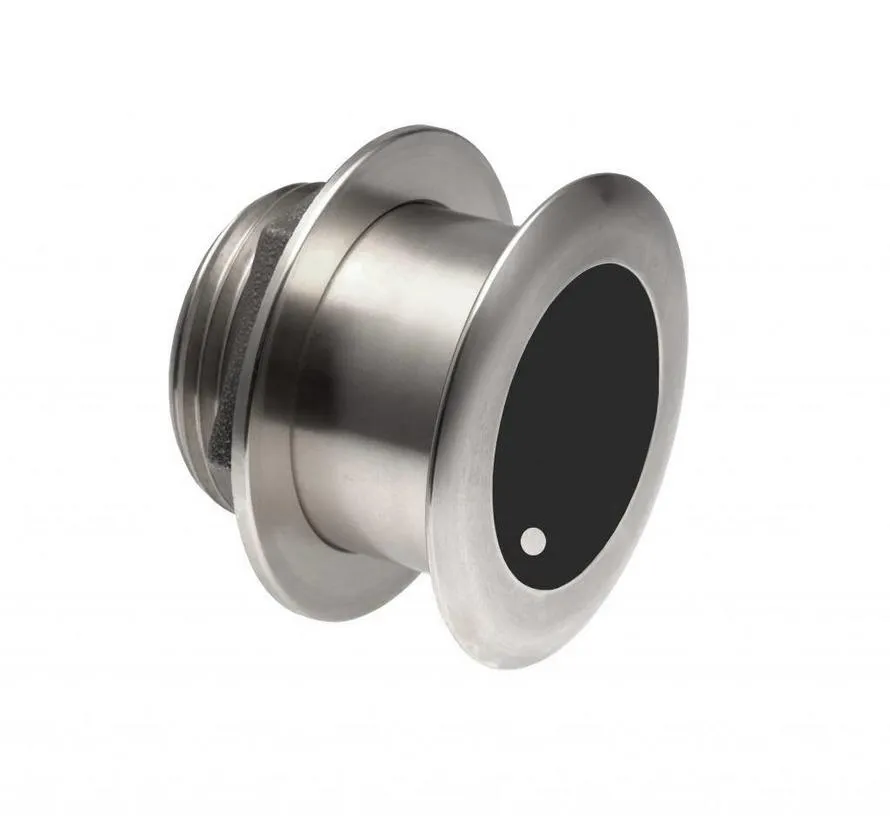

Lowrance Airmar Xsonic SS175H-W Stainless Thru-Hull (0° / 12° / 20°)
Upgrade your sonar performance with the SS175H-W—a premium stainless-steel thru-hull High-Wide CHIRP transducer built for crisp fish arches, clear bottom detail and wide coverage. It’s a strong choice for anglers who want confident readings around structure and contour changes, especially in shallower water.
High-Wide CHIRP combines a wider search area with excellent target separation, helping you distinguish fish from bottom and structure more easily. The rugged stainless housing is made for harsh marine conditions and a clean, permanent thru-hull installation.
Key benefits
- High-Wide CHIRP for wide coverage and strong target separation
- Stainless thru-hull design: durable, secure, and cleanly installed
- 0° / 12° / 20° tilt options to match your hull deadrise for best performance
Connector & cable
- Black 9-pin connector
- Cable length: 10 m (33.0 ft)

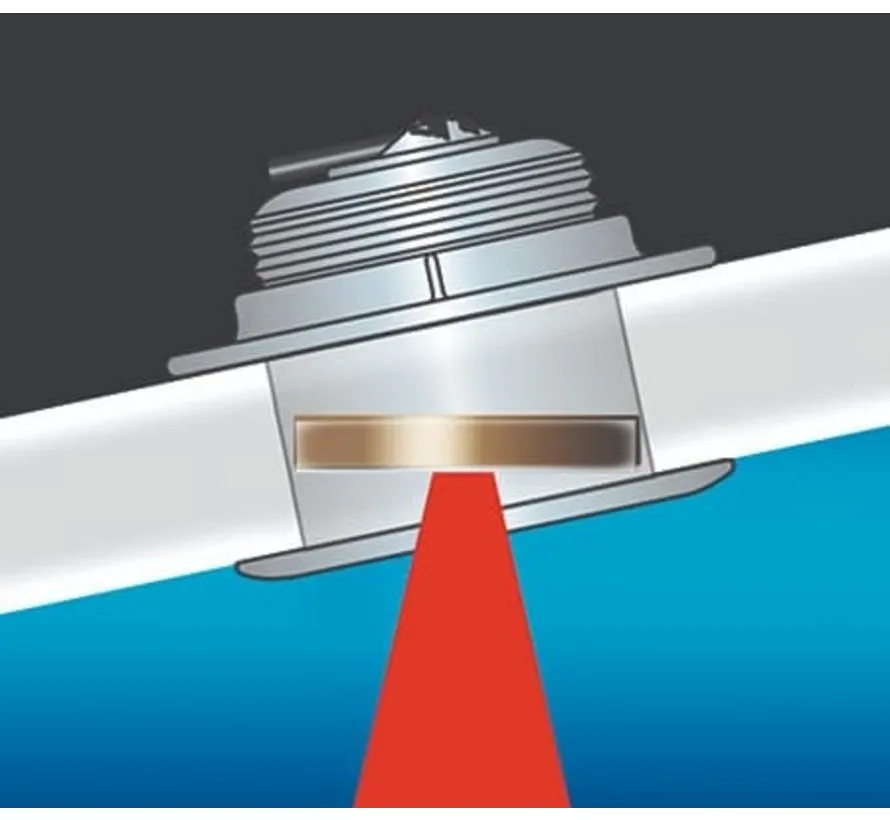

Choose the right tilt (0° / 12° / 20°)
Pick the option that matches your boat’s deadrise so the beam points as close to straight down as possible.
Specifications
- Dimensions (Ø x H): 134 mm (Ø) x 118 mm (5.3 x 4.7")
- Weight: 2.7 kg (6 lb)
- Sonar frequencies: 150–250 kHz
- Max depth: up to 200 m (650 ft) (depending on sonar/settings)
Note
Thru-hull installation requires proper drilling and sealing to prevent leaks. Always confirm compatibility with your Lowrance/Simrad display or sonar module (connector/support).
