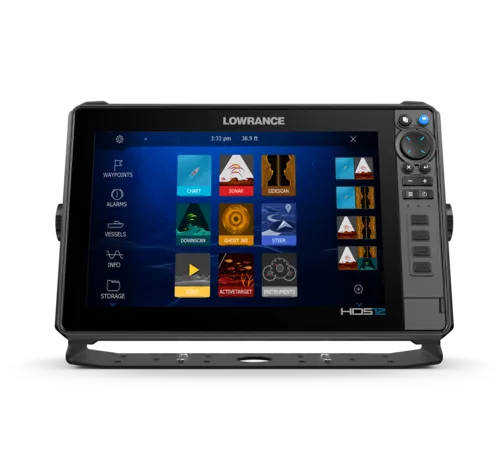

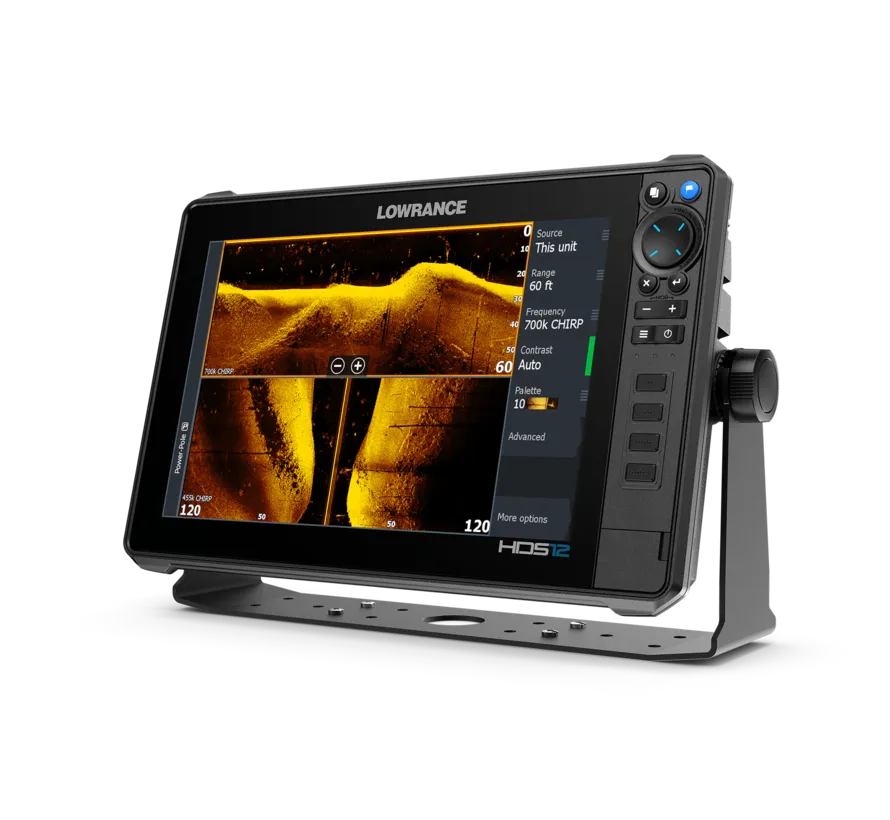

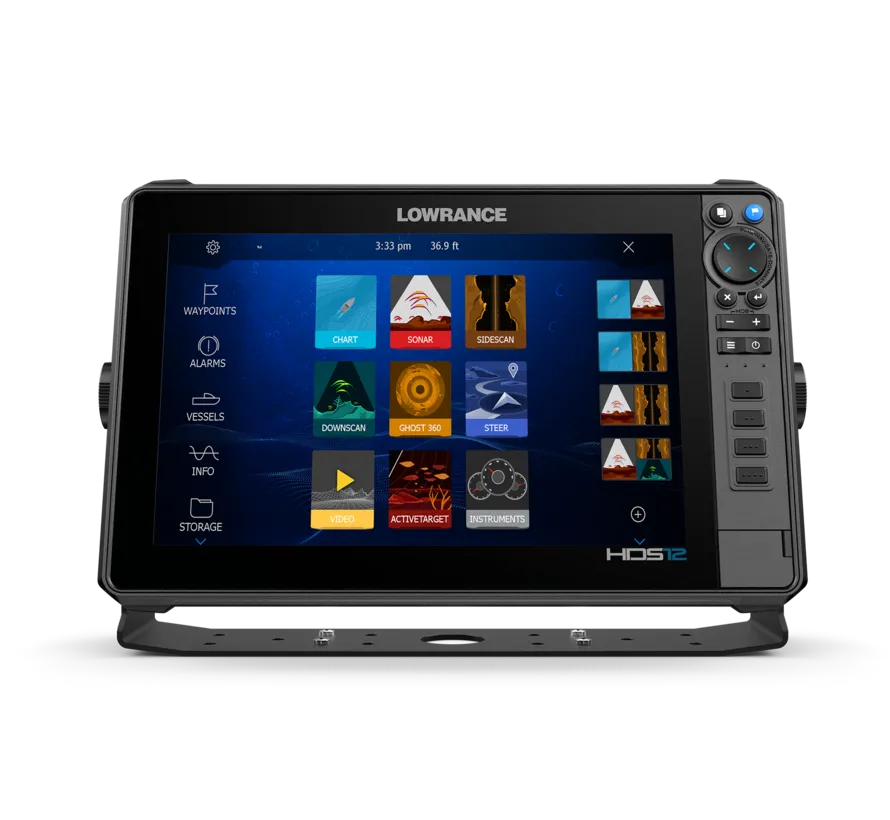

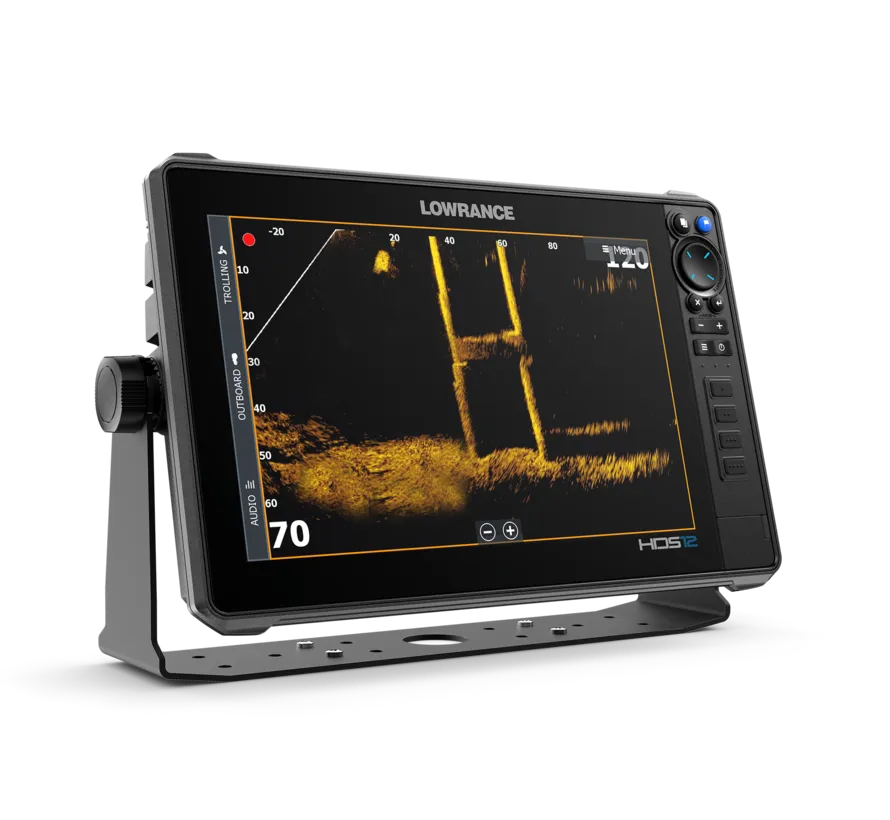

The Lowrance HDS PRO 12 is a high-performance 12-inch chartplotter and fishfinder designed for serious anglers.
Variants
Without transducer
- Part number: 000-16003-001
- EAN: 9420064129836
- No transducer included
- Active Imaging HD ready

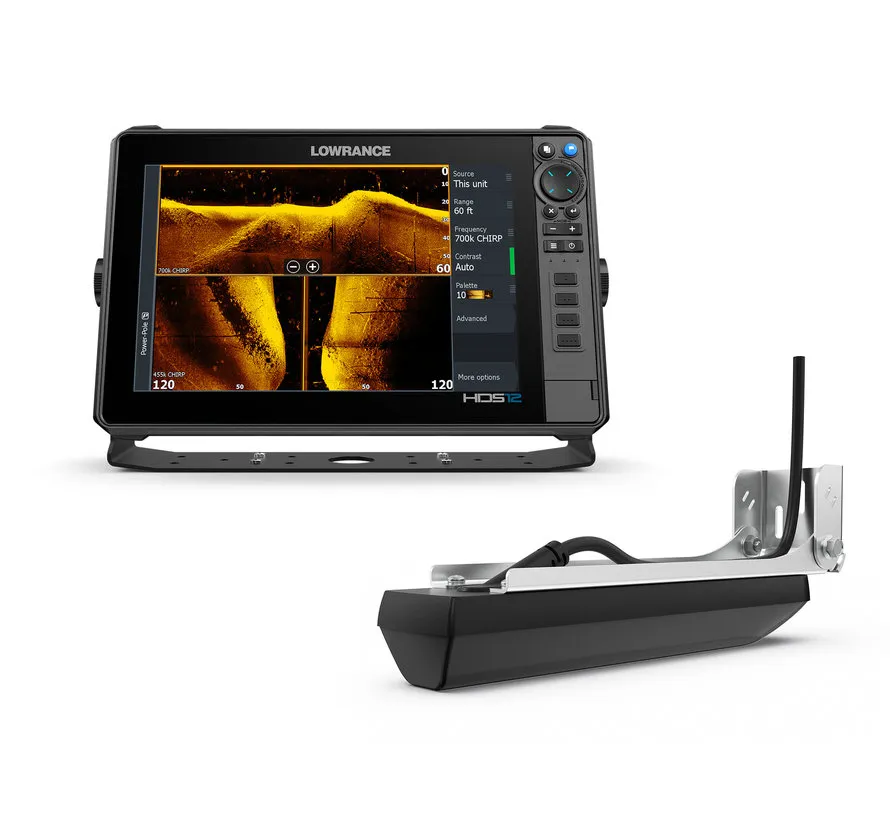

With Active Imaging HD 3-in-1
- Part number: 000-15988-001
- EAN: 9420064129683
- Active Imaging HD 3-in-1 transducer included
Display
- 12-inch SolarMAX HD
- 1280 × 800 pixels
- More than 1200 nits
- 80° viewing angles
- Full multitouch
- Keypad
- 4 programmable quick-access keys
Sonar
- CHIRP
- Broadband sonar
- DownScan Imaging
- SideScan
- Active Imaging HD
- ActiveTarget
- ActiveTarget 2
- S3100 support
- StructureScan support
Active Imaging HD
- CHIRP
- SideScan
- DownScan
- Up to 1.2 MHz
Navigation
- 10 Hz GPS
- GLONASS
- WAAS
- EGNOS
- MSAS
- 3000 waypoints
- 100 routes
- 100 trails
- Up to 10,000 points per trail
Charts
Supports suitable:
- C-MAP DISCOVER
- C-MAP REVEAL
- C-MAP DISCOVER X
- C-MAP REVEAL X
- Navionics
- Genesis Live
ROW versions include a worldwide basemap.

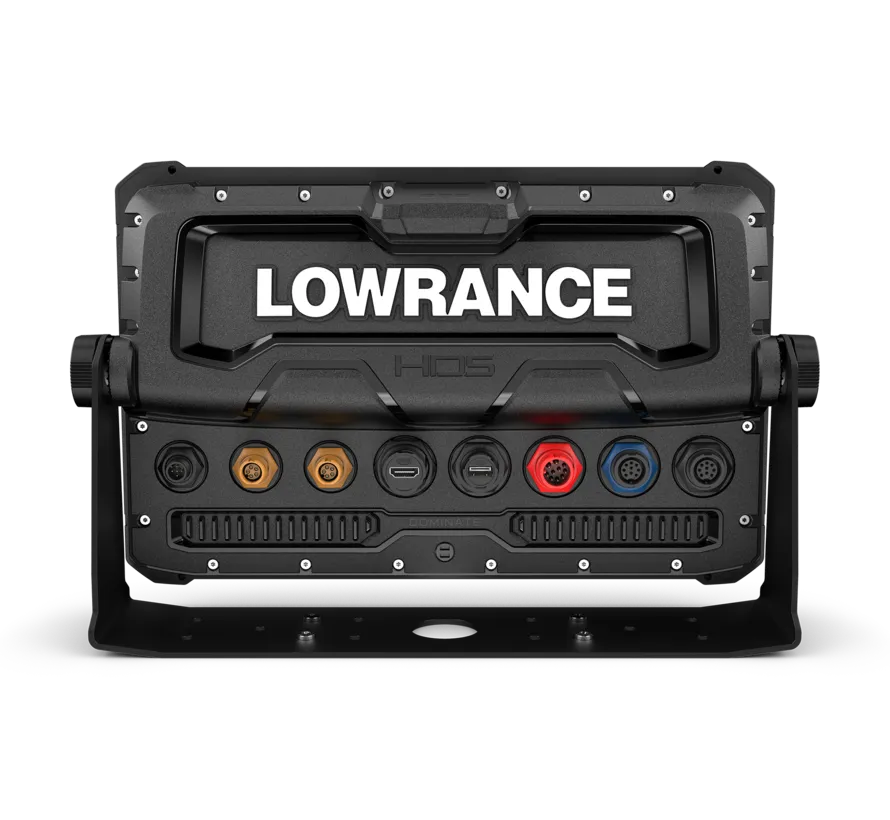

Networking
- NMEA 2000
- 2 × 100 Mbit Ethernet
- WiFi
- Bluetooth 4.0
- NMEA 0183
- 2 × microSD
Power
- 12 V DC
- Operating range: 10.8–17 V DC
- Typical draw: approx. 2.3 A at 13 V
- Maximum draw: approx. 3.6 A at 13 V
- Recommended fuse: 5 A
Dimensions
- 347.5 × 225.5 × 82.9 mm
- Weight: approx. 2.61 kg
Environmental
- IPX7
- Operating temperature: -15 °C to +55 °C
- Storage temperature: -20 °C to +60 °C
