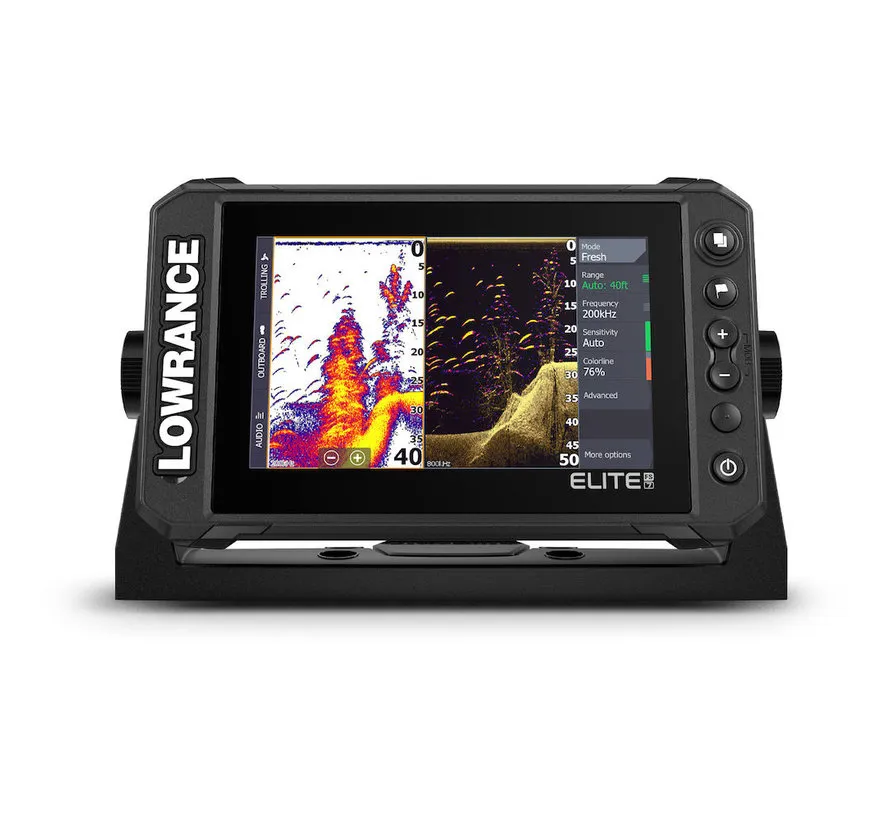

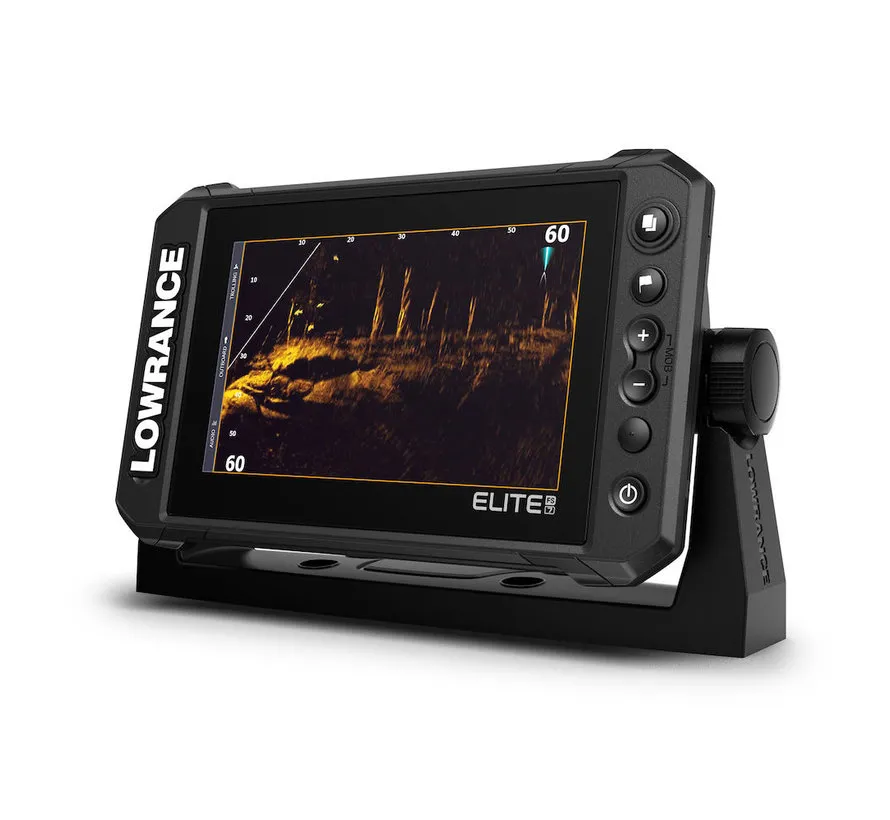

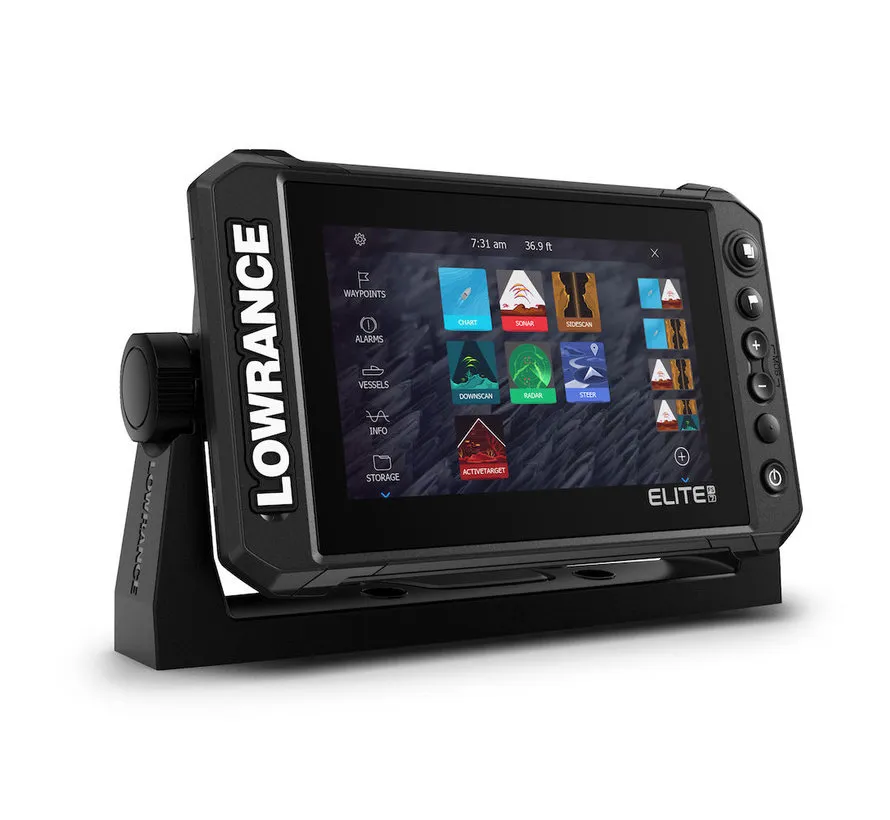

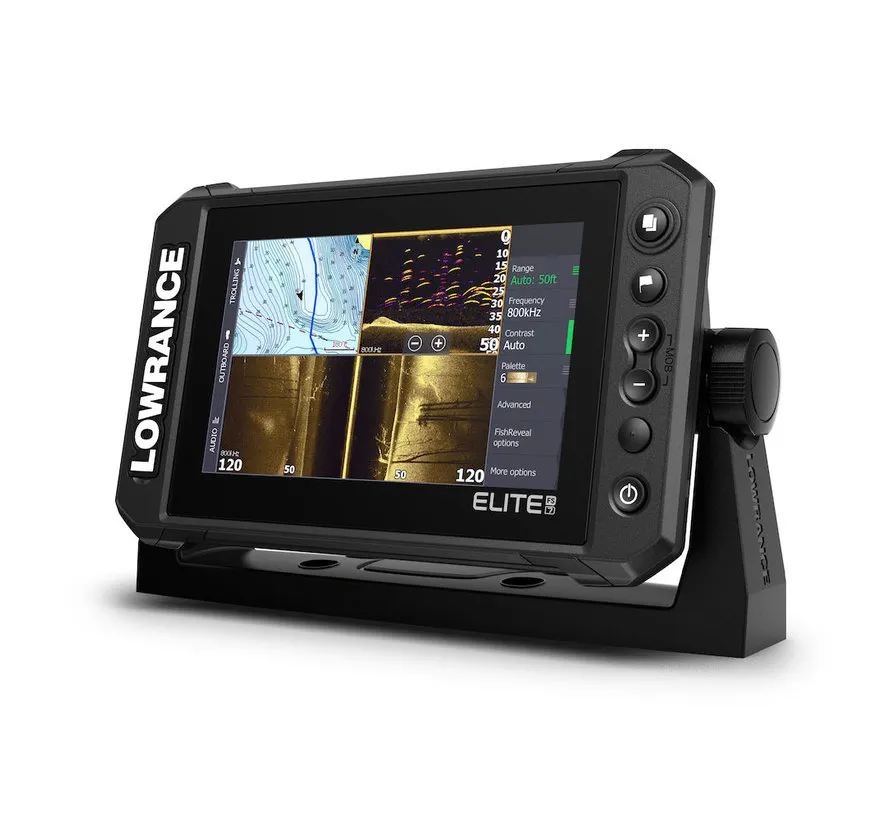

The Lowrance Elite FS 9 ROW is a 9-inch fishfinder and chartplotter with a high-resolution multitouch display, integrated GPS, sonar, Wi-Fi, Bluetooth, NMEA 2000 and Ethernet. This version includes the Active Imaging 3-in-1 transducer.
Product specifications:
- Brand: Lowrance
- Model: Elite FS 9
- Part number: 000-15693-001
- EAN: 9420064116959
- Display: 9-inch multitouch
- Resolution: 800 × 480 pixels
- Brightness: >1200 nits
- Touchscreen: yes
- Physical buttons: yes
- GPS: integrated 10 Hz
- CHIRP sonar: yes
- SideScan: yes
- DownScan Imaging: yes
- FishReveal: yes
- Active Imaging 3-in-1 transducer: included
- ActiveTarget 2 compatible: yes
- Wi-Fi: integrated
- Bluetooth: Bluetooth 4.0
- Ethernet: 1 × 100 Mbit
- NMEA 2000: 1 × Micro-C
- NMEA 0183: no
- microSD: up to 32 GB
- Supply voltage: 10.8–17 V DC
- Power use: approx. 2 A at 13 V
- Recommended fuse: 3 A
- Water rating: IPX7

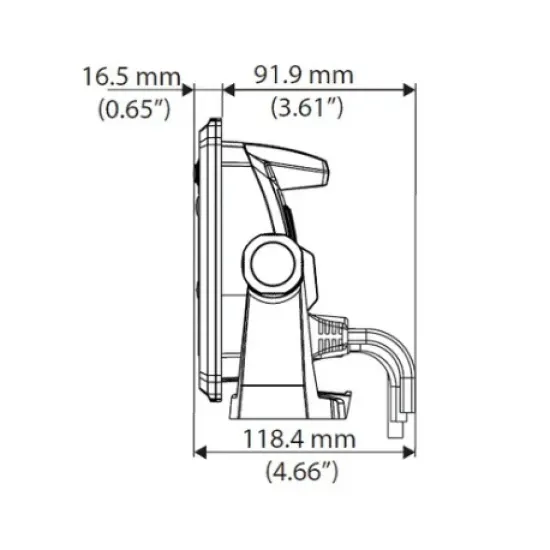

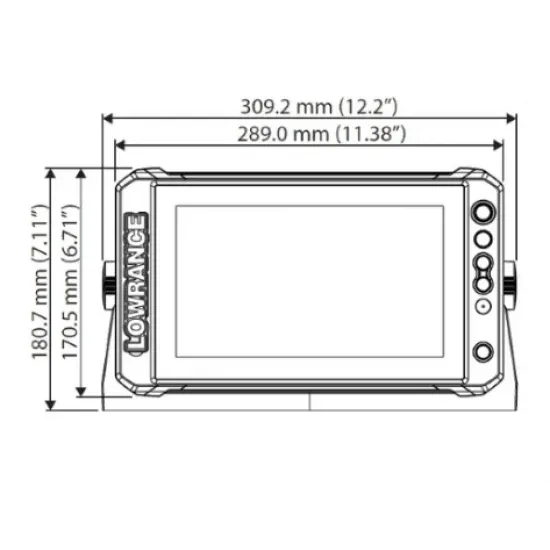

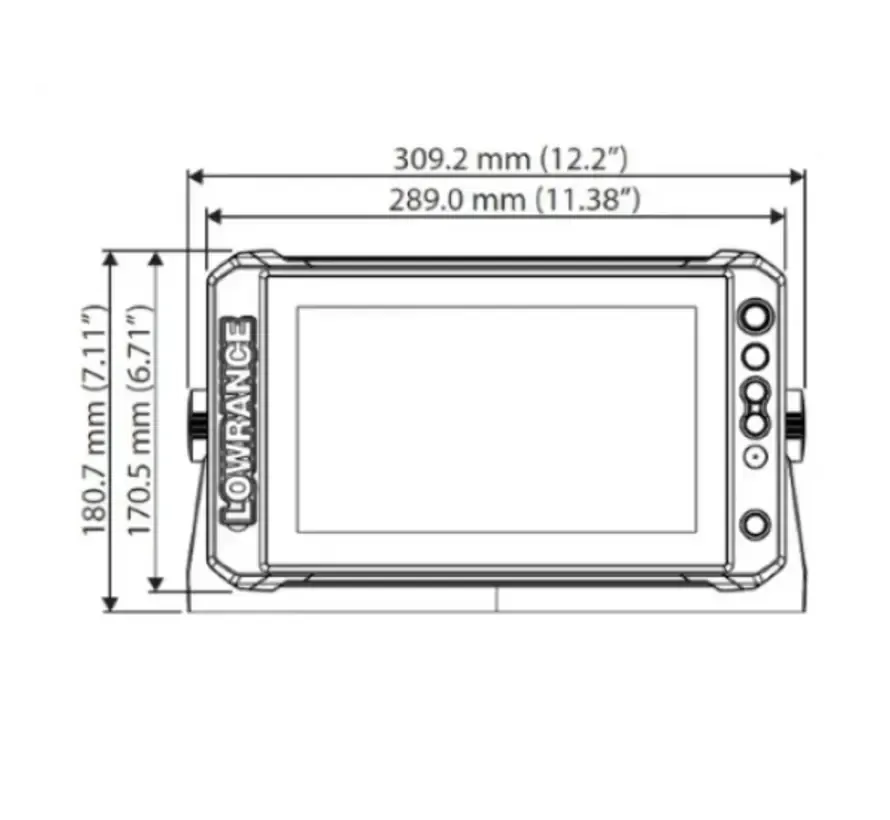

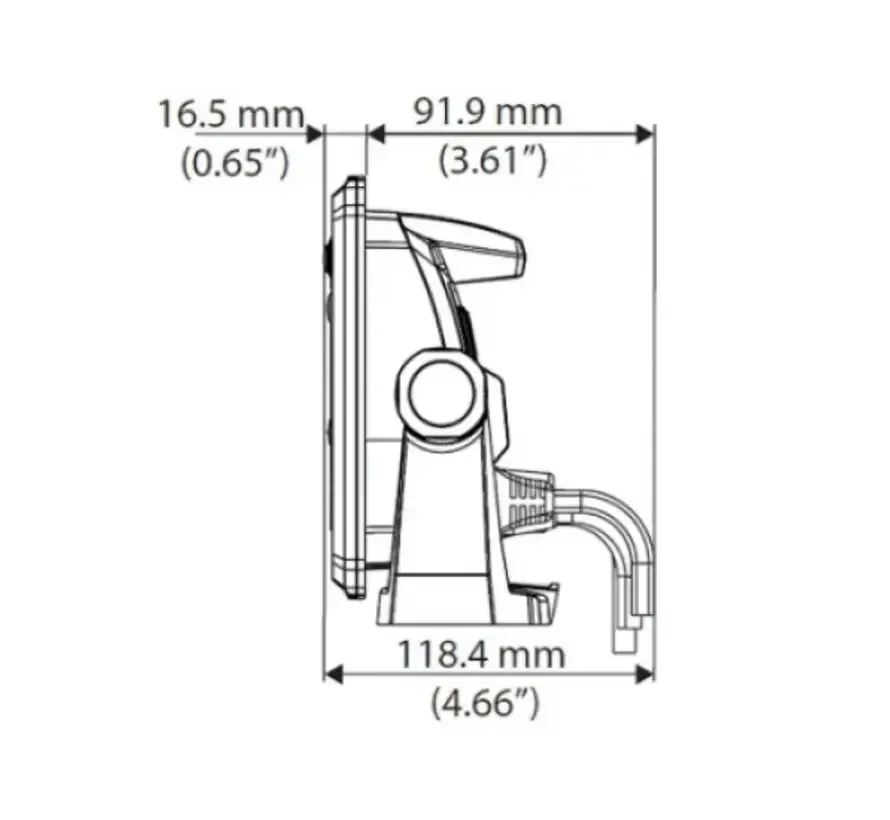

- Weight: approx. 1.2 kg
- Operating temperature: -15 to +55 °C.
Charts:
- C-MAP ROW basemap included
- C-MAP DISCOVER supported
- C-MAP REVEAL supported
- Genesis Live supported
- Navionics supported.
Included:
- Elite FS 9 display
- Active Imaging 3-in-1 transducer
- Power cable
- Fuse and fuse holder
- Mounting bracket
- Elite FS 9 suncover.
