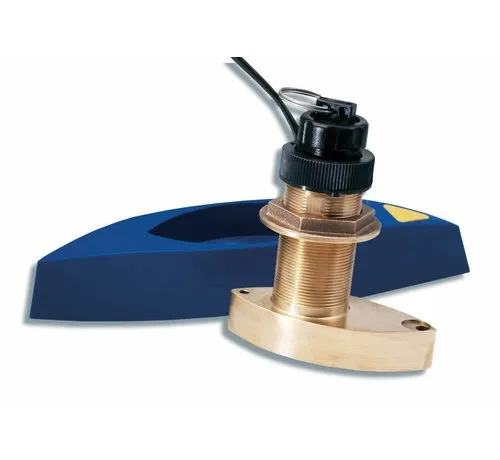

Lowrance Airmar B744V is a smart and compact, bronze, through-hull, 50/200 kHz multisensor that provides depth and NMEA2000 speed and temperature data. Ideal for use with Sonarhub, Simrad / Lowrance echosounder for fishing in shallow to moderately deep water.
The B744V is a bronze through-hull broadband transducer ideal for vessels up to 9 m (30 ft) in length, fishing to depths of less than 900 m (3000 ft).
Key features B744V
50 kHz at 45° beamwidth
200 kHz at 12° beamwidth
Up to 900 m (3000 ft) Range at 50 kHz
1 internal broadband ceramic
Thru-Hull with bronze housing and high-performance fairing
Suitable for fiberglass and wood hulls
Ideal for business travelers and sport fishing vessels up to 9 m (30 ft) in length
Recommended for use with the SonarHub echo sounder module, Simrad NSS Sport evo2 & NSS multifunction displays
Depth/Speed/Temperature
One sensor for everything - an extremely economical option as only one hole in the hull is required.
Smart speed/temperature
The removable smart speed/temp insert allows NMEA2000 to be sent directly from the transducer to other instruments.
Wide operating range
From 1 knot to 45 knots.
Highly accurate sounding
Provides highly accurate echosound data even at speeds over 30 knots.
Dual frequency
Operates at 50 kHz and 200 kHz for good target detail in shallow water and excellent bottom tracking in deep water.
Bronze
Built to withstand the environment.
Innovative housing.
Fully recessed into the custom-built high-quality fairing. If the transducer must be removed, the self-closing valve minimizes water flow into the boat.
600 W RMS
Ideal for 600 W fishfinders.
