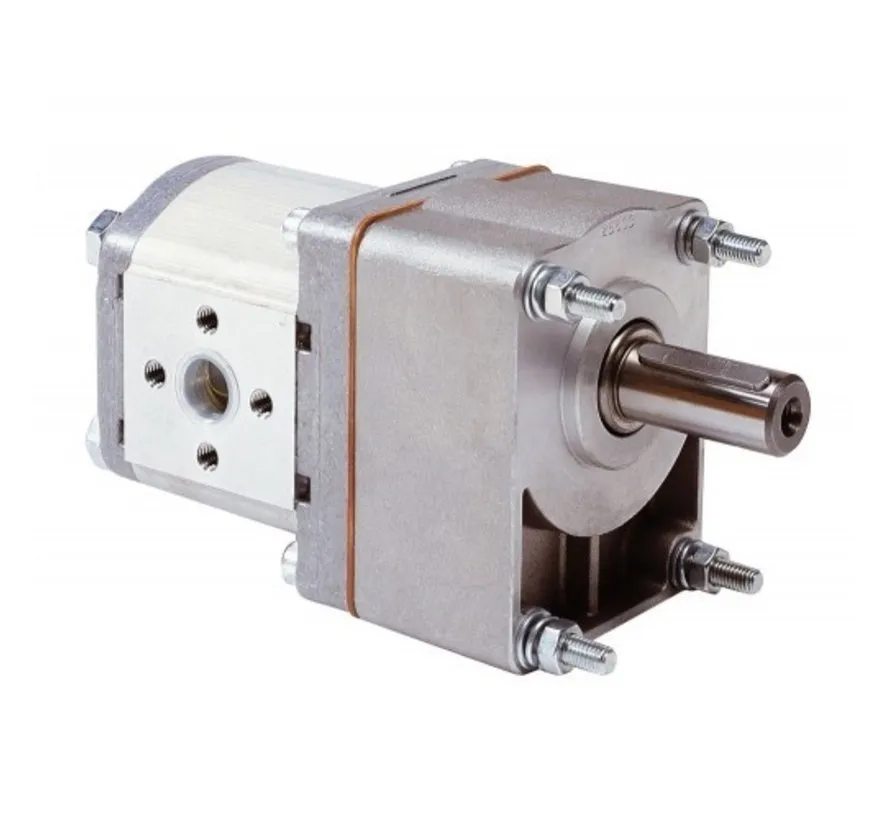

The Vetus HT1029 is a hydraulic gear pump with a front bearing for applications where a compact engine-driven pump is required. Its fixed displacement of 11.3 cc per revolution provides a consistent output, making it suitable for single-function hydraulic systems. The front-bearing construction allows installation with a pulley and toothed V-belt.
Specifications:
- hydraulic gear pump with front bearing
- fixed displacement: 11.3 cc per revolution
- rotation: clockwise
- suitable for installation with pulley and toothed V-belt
- drive shaft diameter: 22 mm
- keyway: 6 mm
- aluminium construction
- dimensions comparable to a dynamo
- suitable for single-function hydraulic systems
- can be used with HT1028, HT1028B and HT1028S systems
